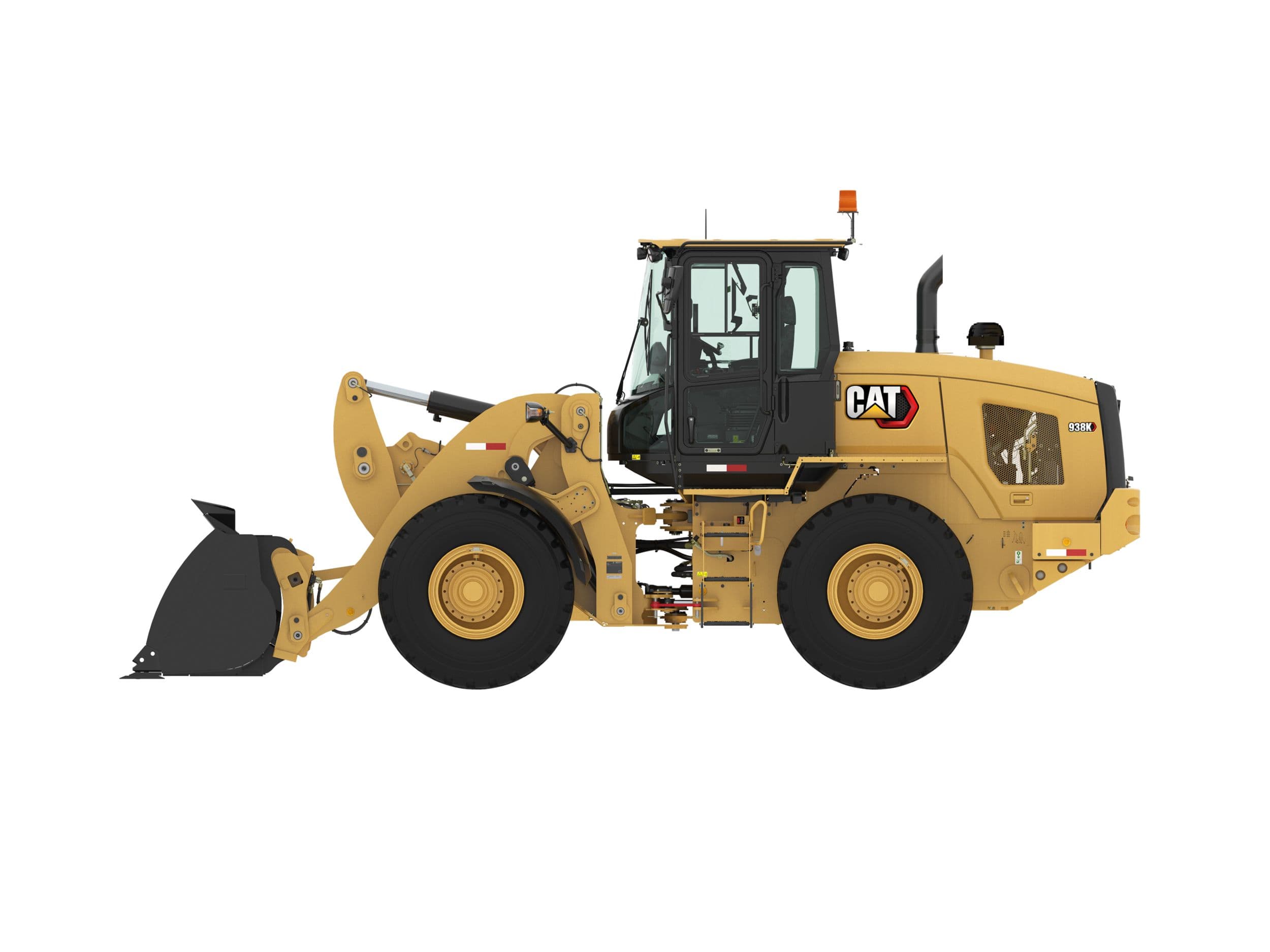

Small Wheel Loaders

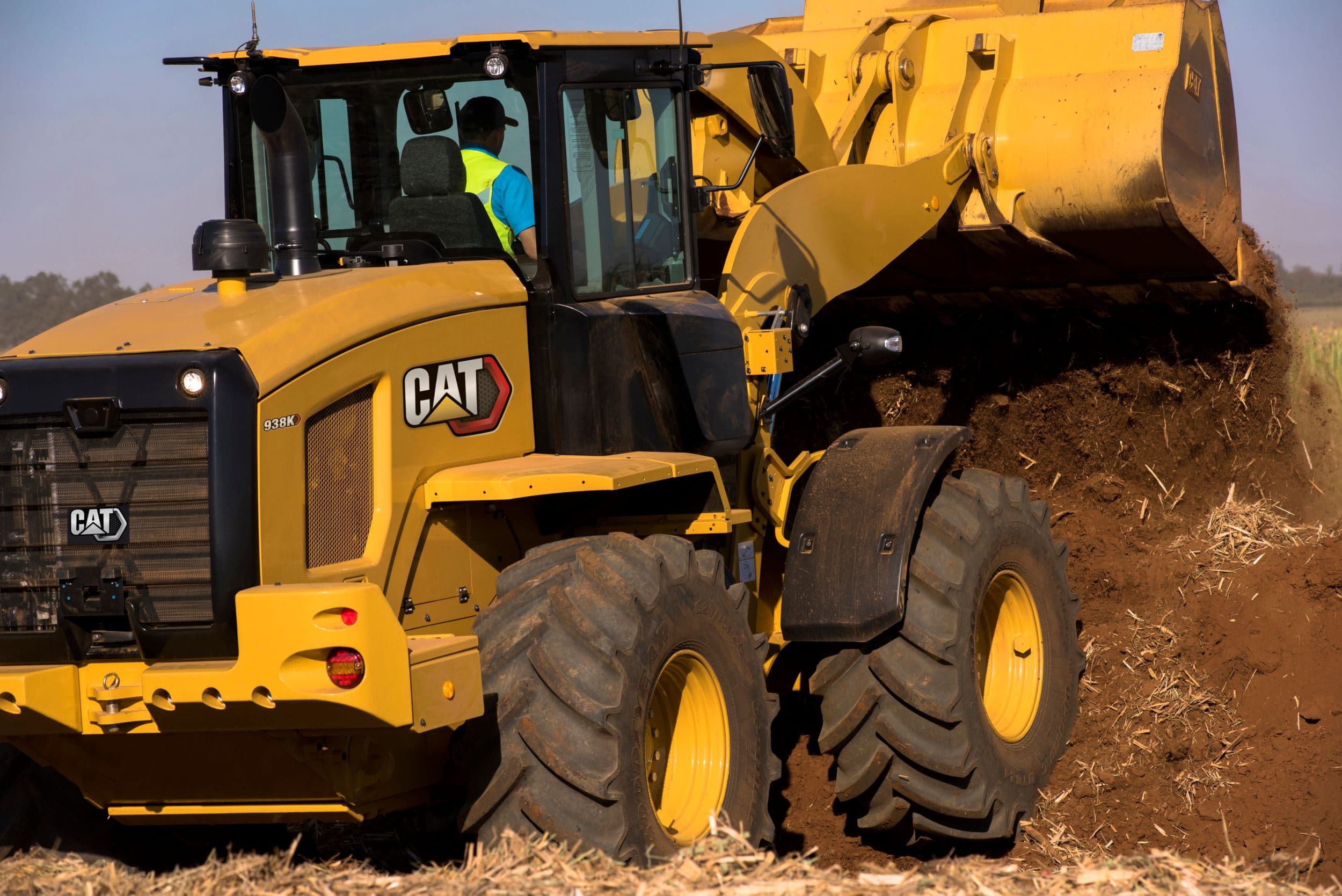

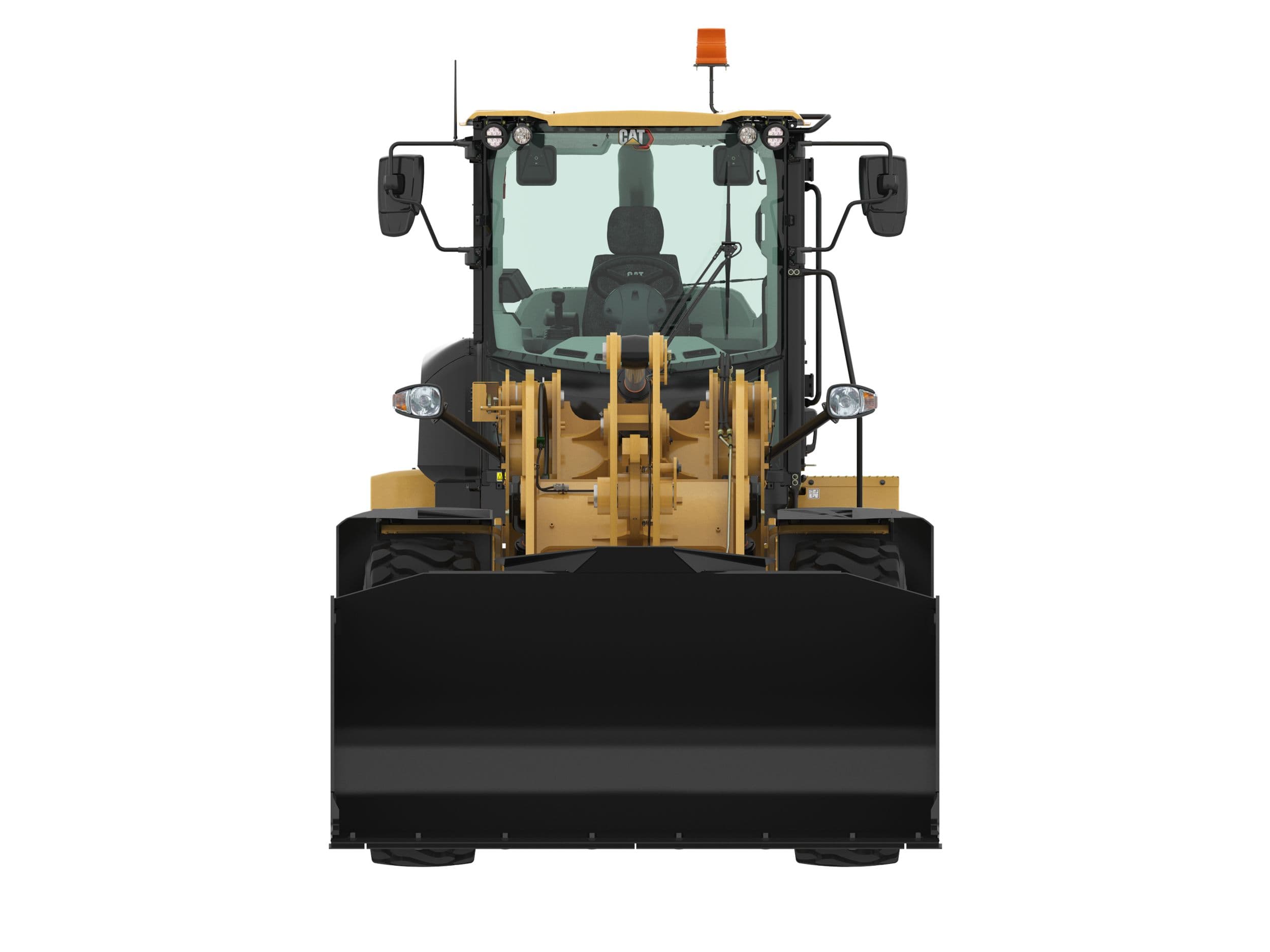

938K

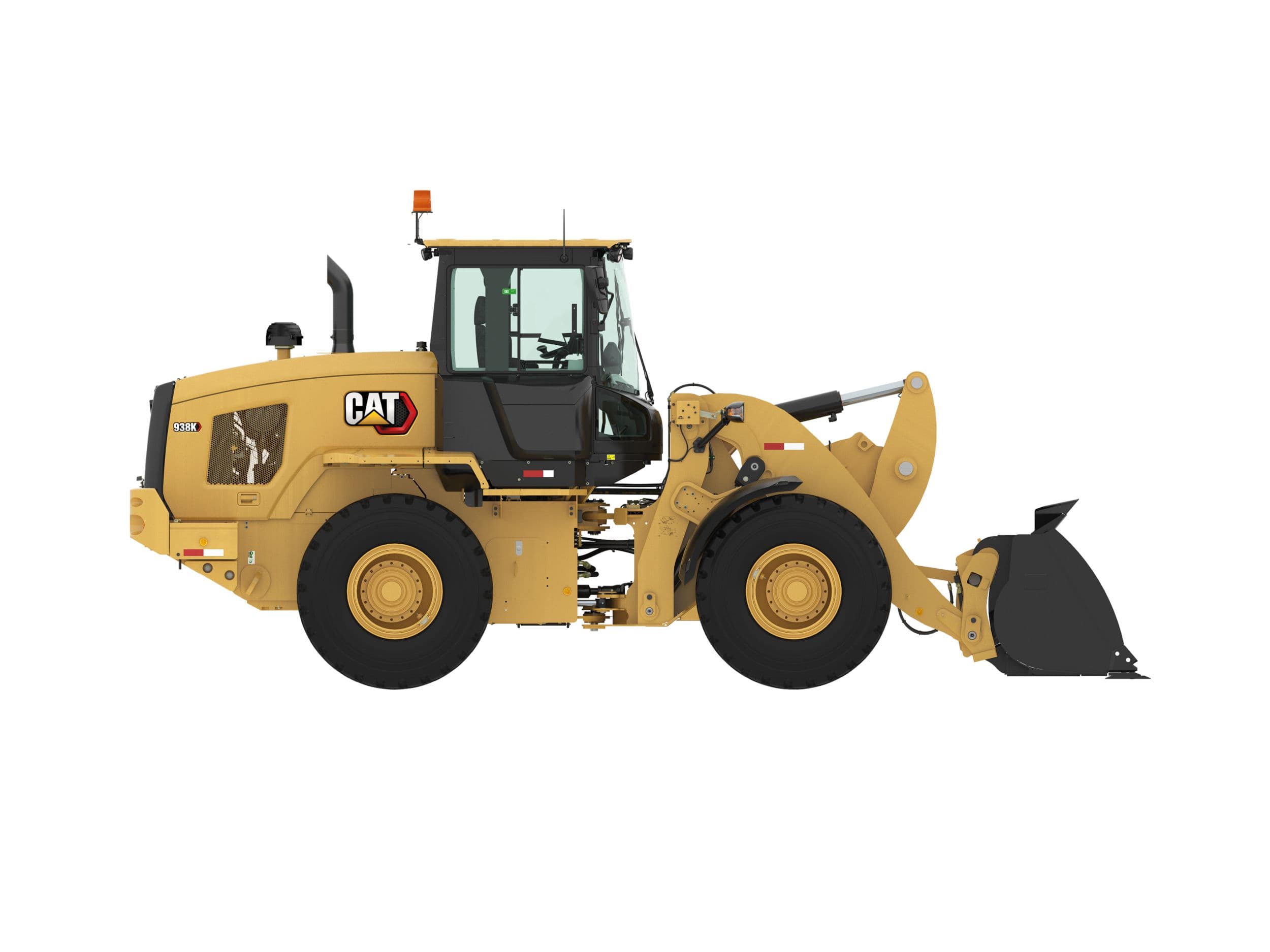

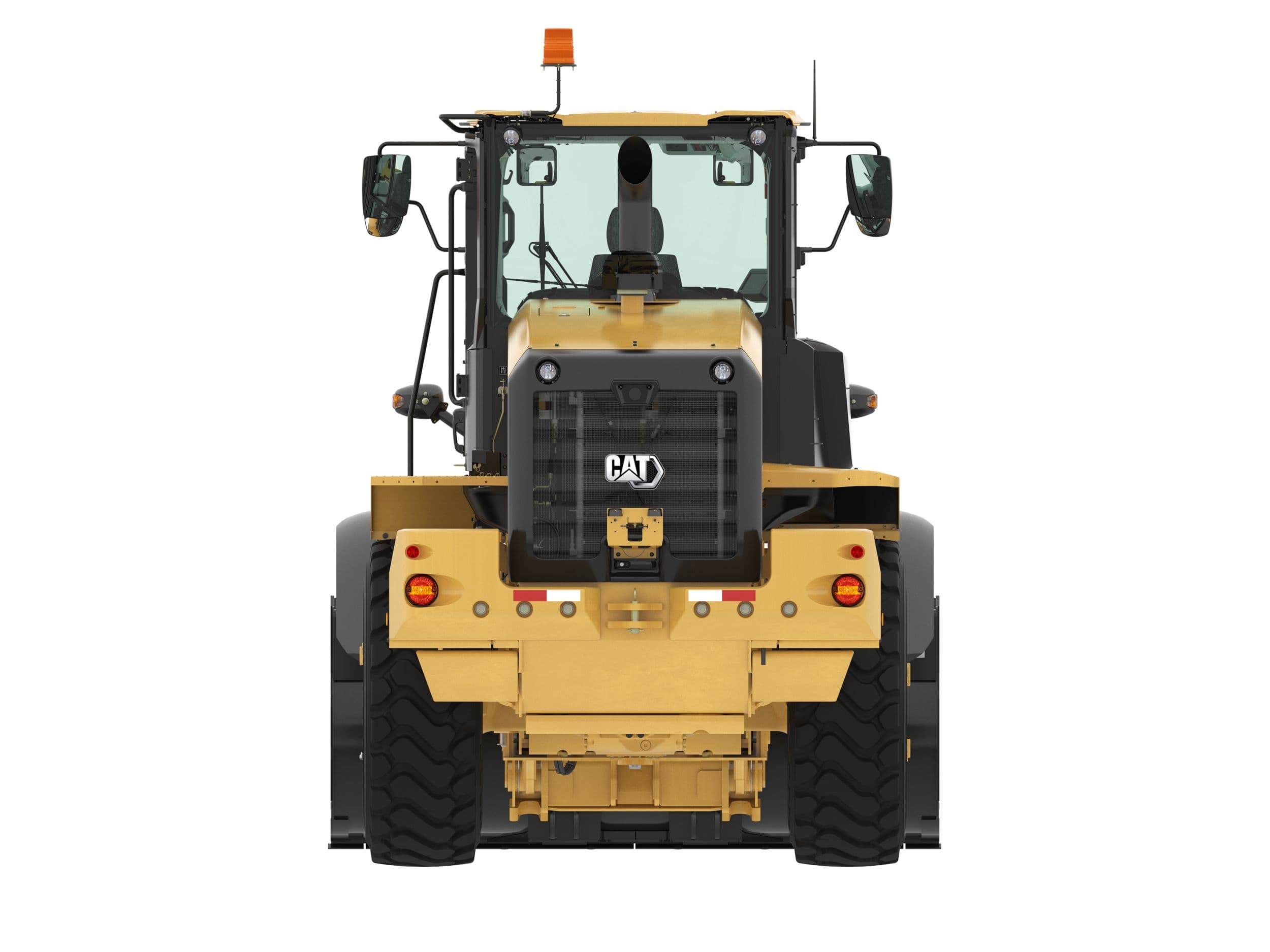

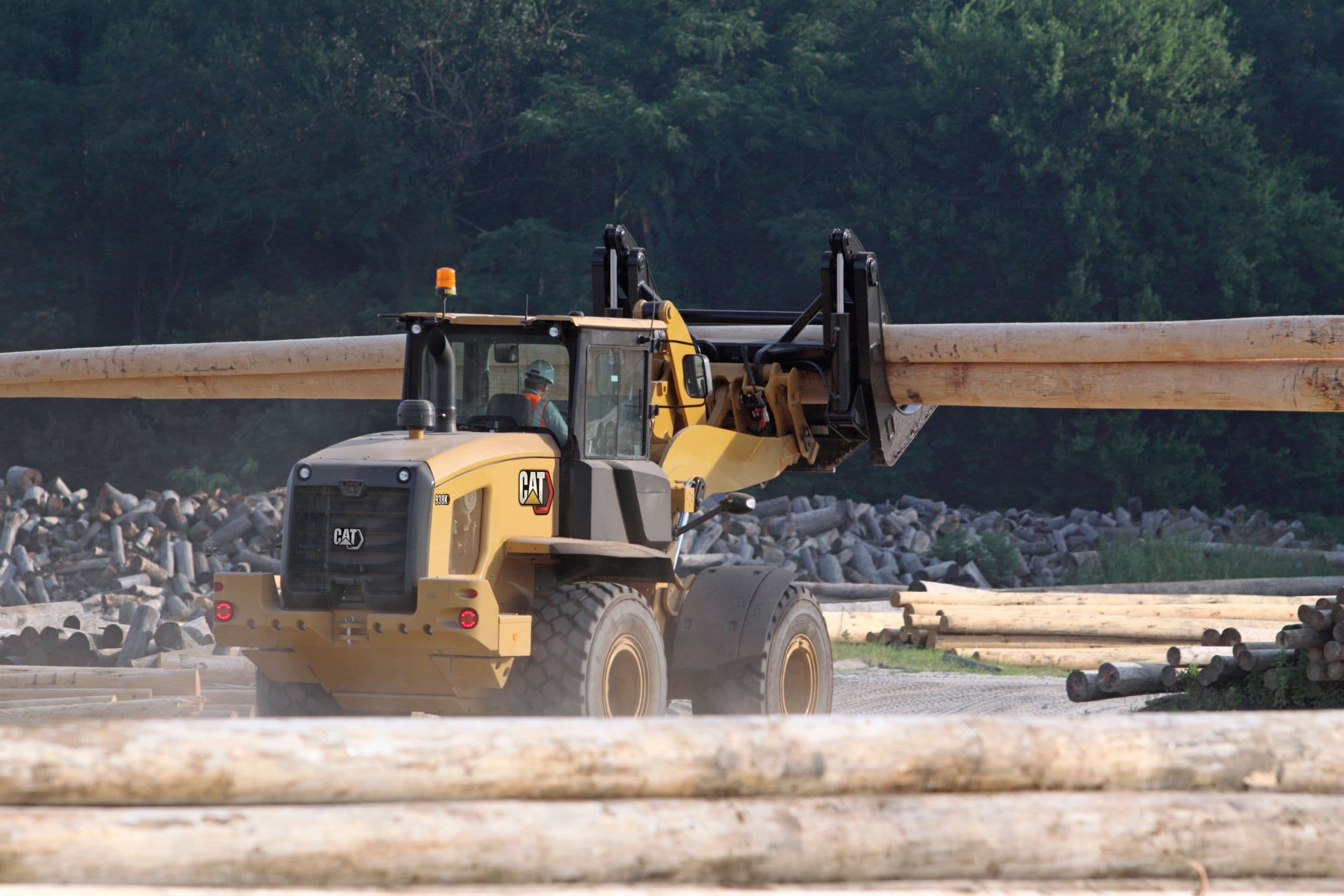

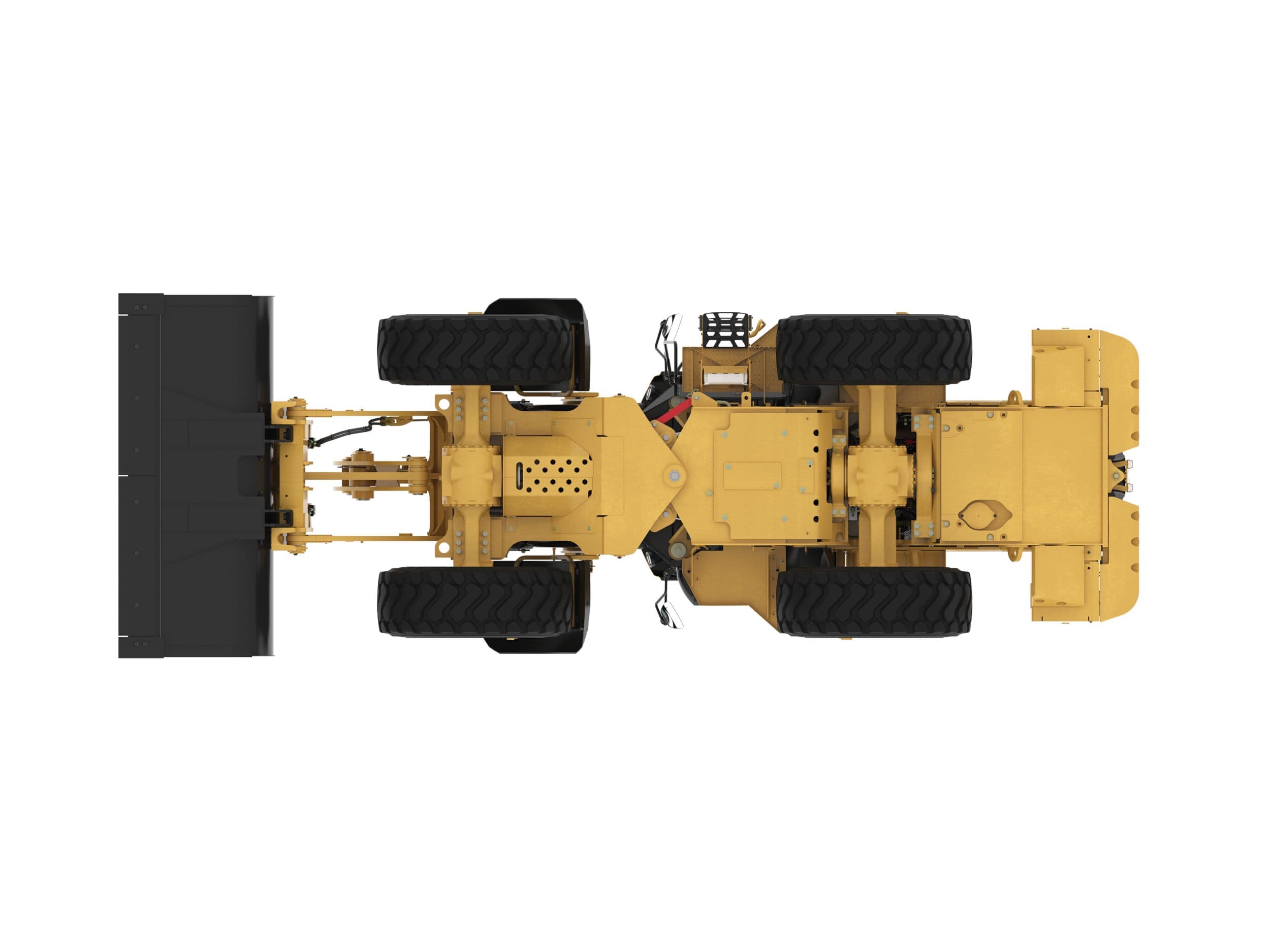

The Cat® 938K Small Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard.

Have a question?

24/7 Support 131 228

Ask Us
Maximum Gross Power
140kW
Maximum Gross Power - 1,800 rpm - ISO 14396 (Performance Power Mode: Range 1-4)
140kW
Maximum Gross Power - 1,600 rpm - ISO 14396 (Standard Power Mode: Range 1-3*)
129kW
Find a centre

Overview

The Cat® 938K Small Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard.

Specifications
  • Maximum Gross Power140kW
  • Maximum Gross Power - 1,800 rpm - ISO 14396 (Performance Power Mode: Range 1-4)140kW
  • Maximum Gross Power - 1,600 rpm - ISO 14396 (Standard Power Mode: Range 1-3*)129kW
  • Net Power - 1,800 rpm - SAE J1349 (Performance Power Mode: Range 1-4)136kW
  • Net Power - 1,600 rpm - SAE J1349 (Standard Power Mode: Range 1-3*)126kW
  • Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)896N·m
  • Displacement (Standard Power Mode: Speed Range 1-3*)7.01l
  • Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)870N·m
  • Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)912N·m
  • Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)860N·m
  • Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4)886N·m
  • Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)876N·m
  • Displacement (Performance Power Mode: Speed Range 1-4)7.01l
