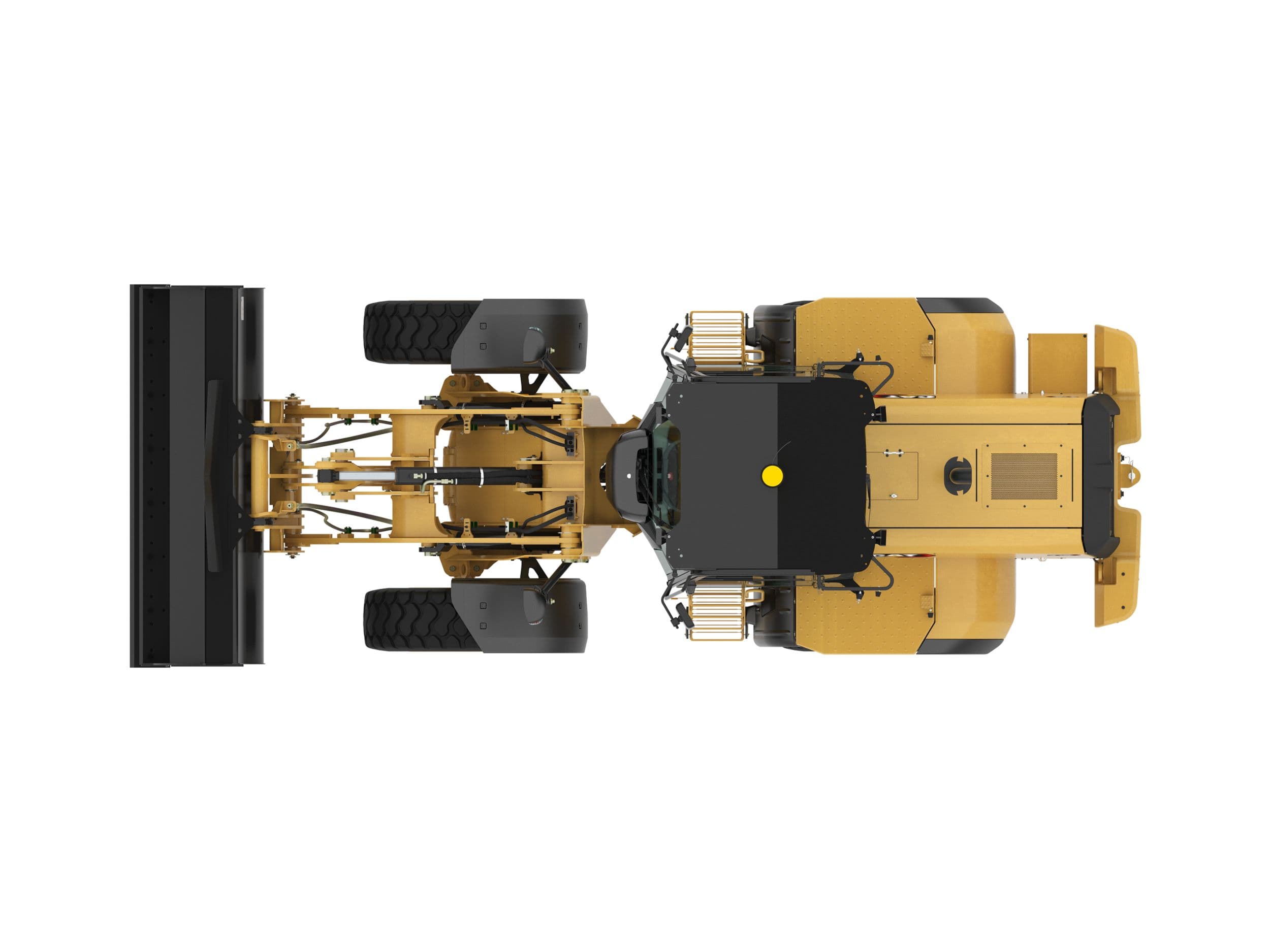

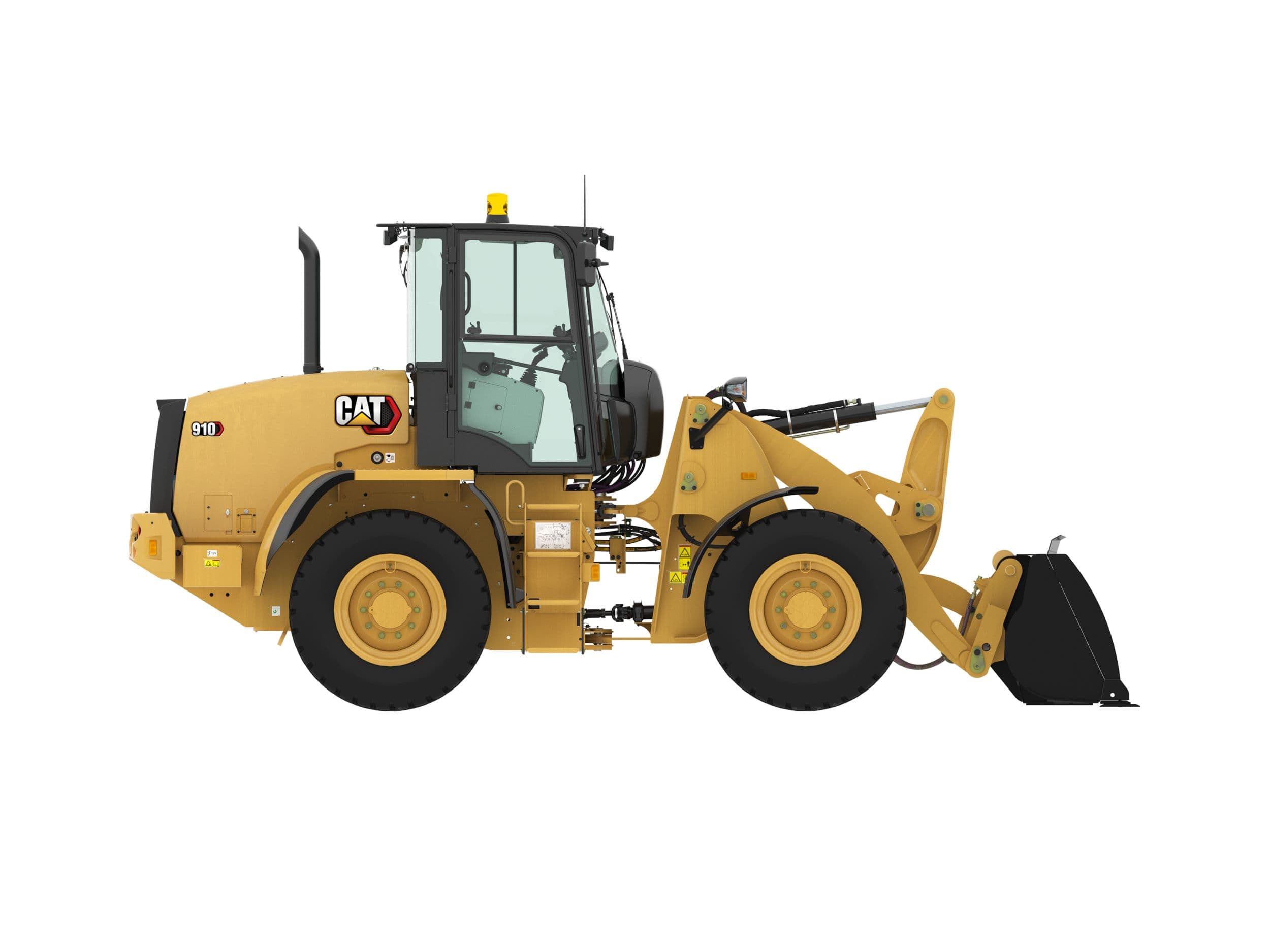

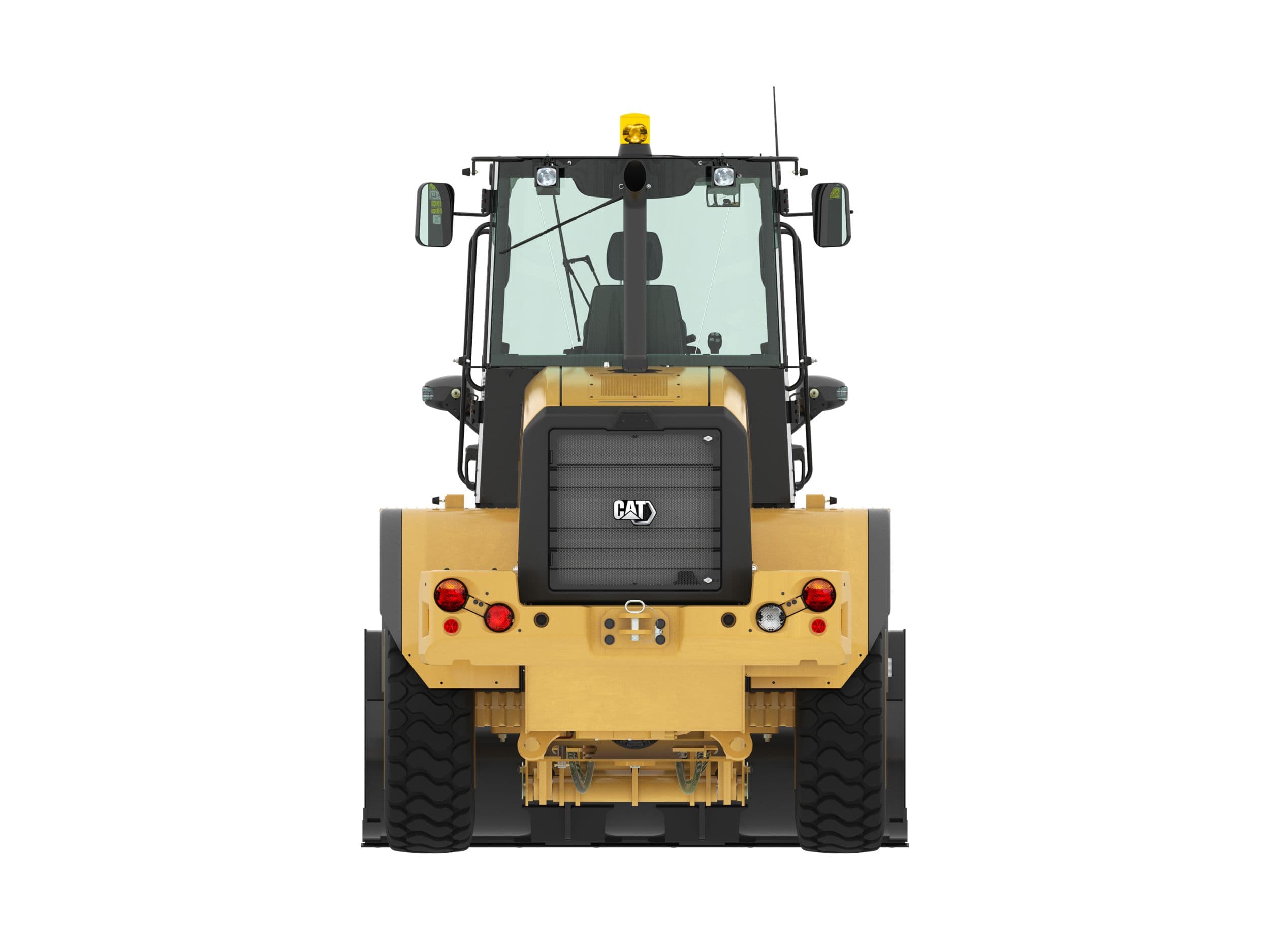

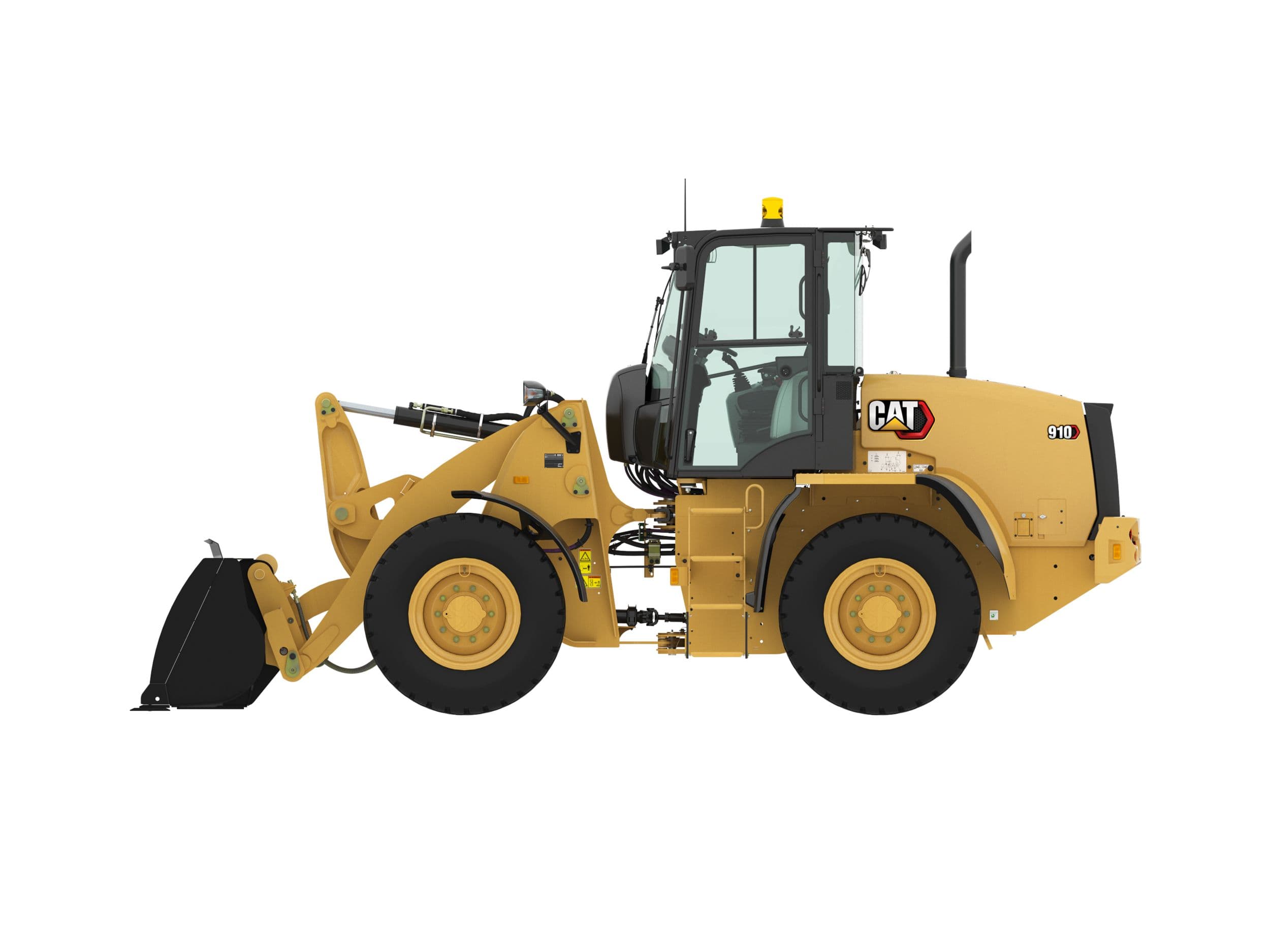

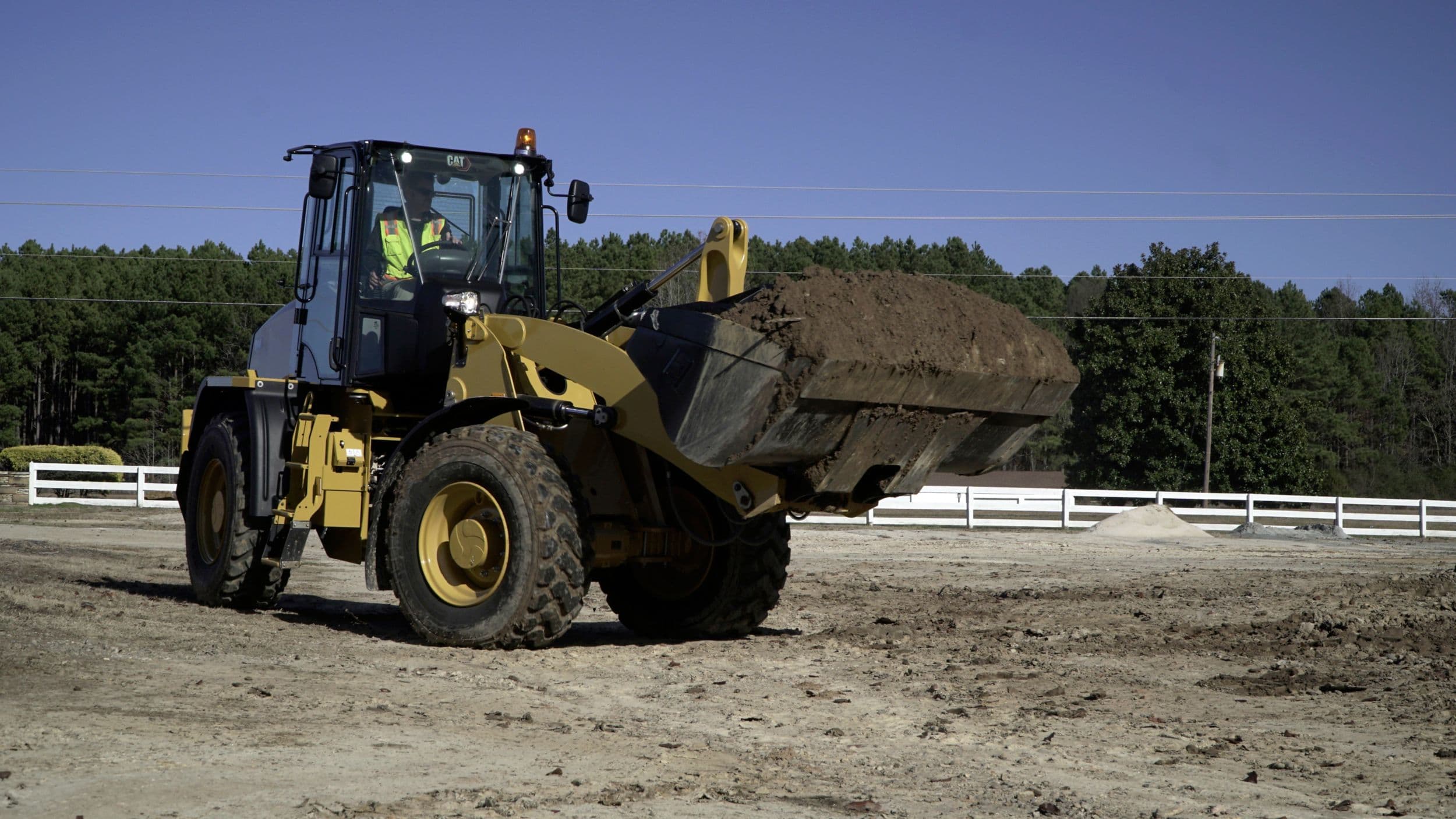

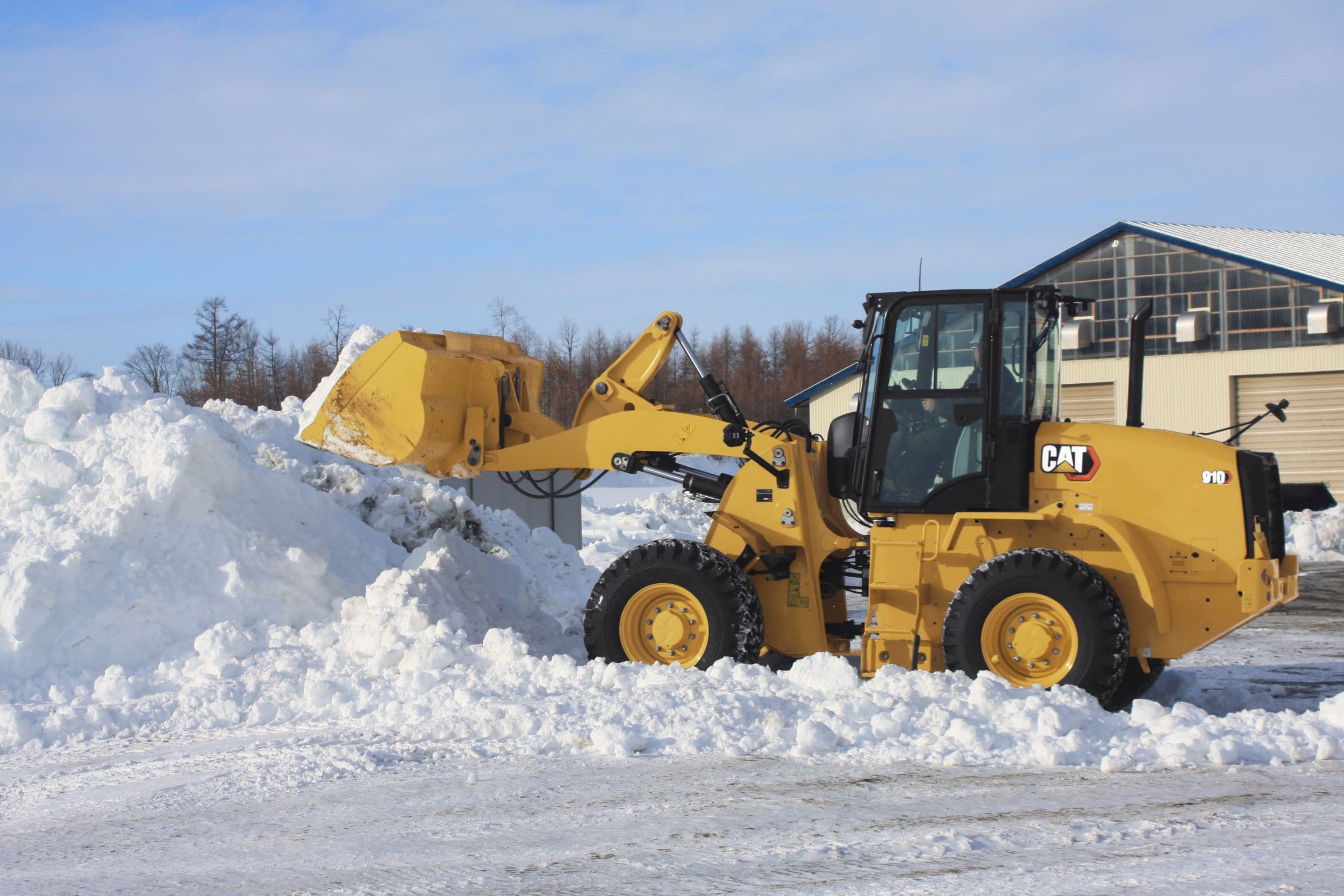

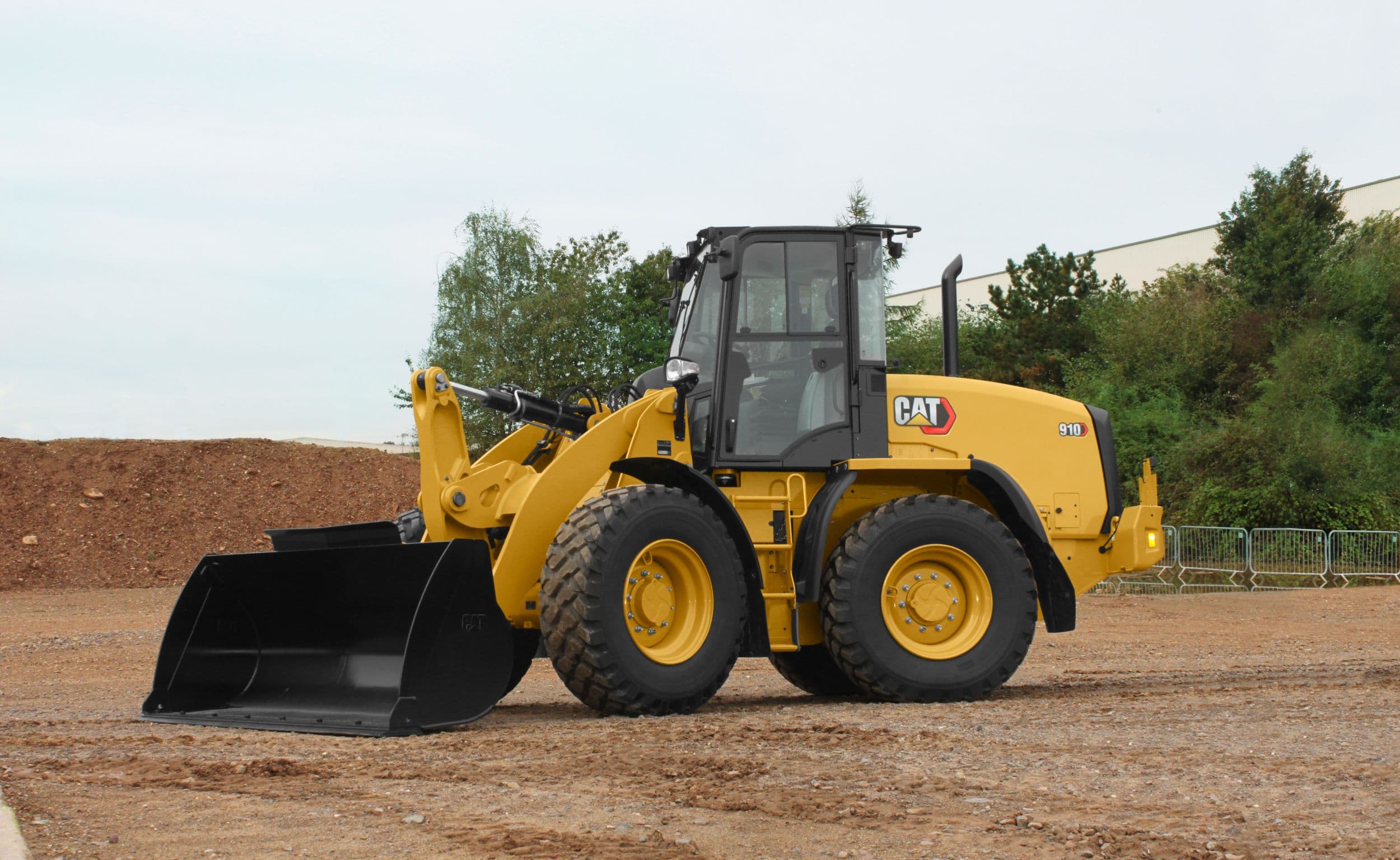

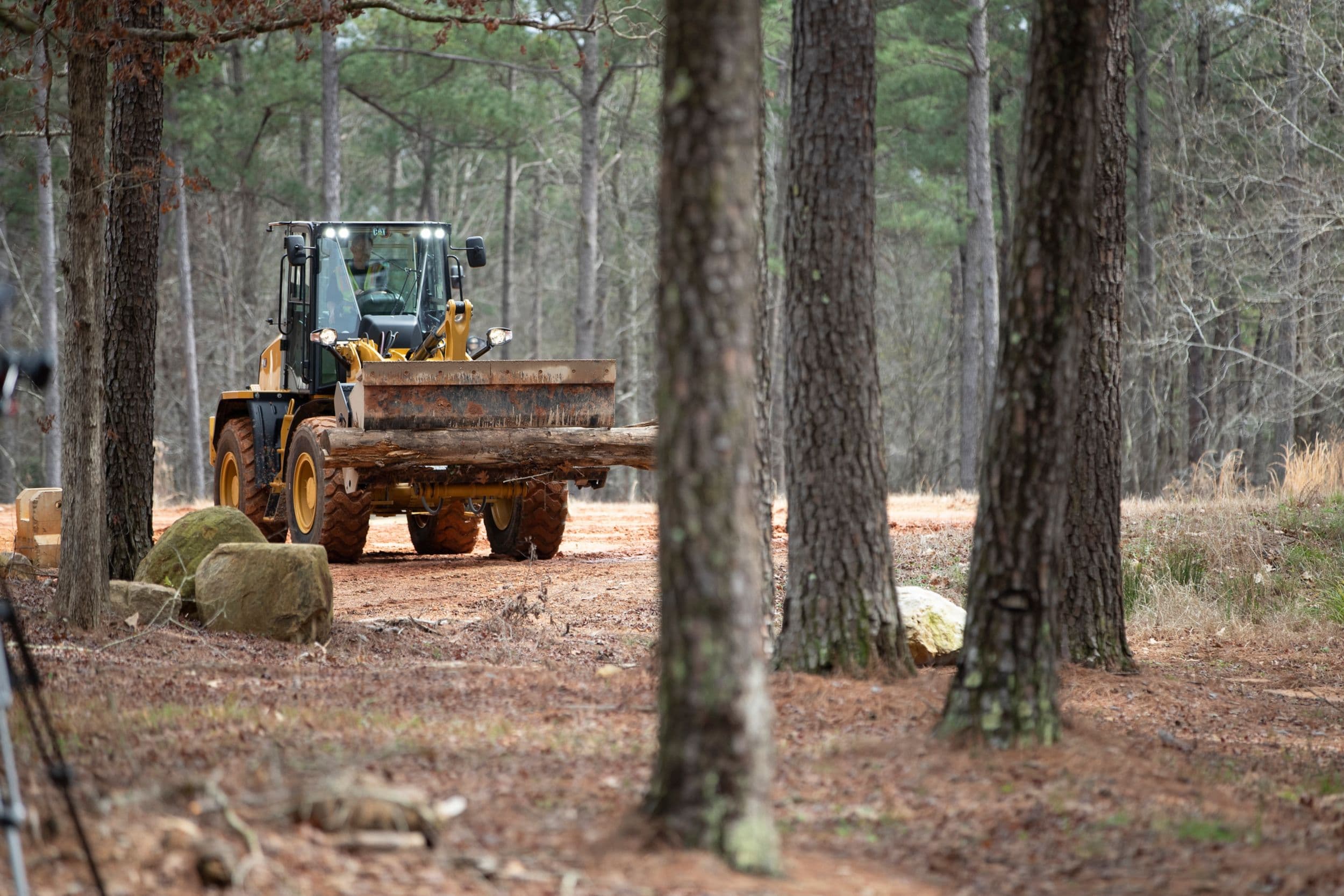

The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
Compact Wheel Loaders
Rated Net Power - Rated Engine Speed
2200R/MIN
Maximum Gross Power - Rated Engine Speed
1800R/MIN
Rated Net Power - SAE J1349
74KW
Overview
The Cat® 910 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.
Specifications
Engine
- Rated Net Power - Rated Engine Speed2200r/min
- Maximum Gross Power - Rated Engine Speed1800r/min
- Rated Net Power - SAE J134974kW
- Maximum Gross Power - ISO 14396 (metric)112hp
- Rated Net Power - ISO 924973kW
- Maximum Gross Torque - SAE J1995454N·m
- Maximum Gross Torque - ISO 14396450N·m
- Maximum Net Torque - SAE J1349446N·m
- Maximum Net Torque - ISO 9249443N·m
- Displacement3.6l
- Bore98mm
- Stroke120mm
- Maximum Gross Power - ISO 1439682kW
- Maximum Gross Power82kW
Attachments
COMPATIBLE WITH
3.66 m (12 ft)
3.66 m (12 ft)
3.66 m (12 ft)
3.66 m (12 ft)
1550 mm (61 in)

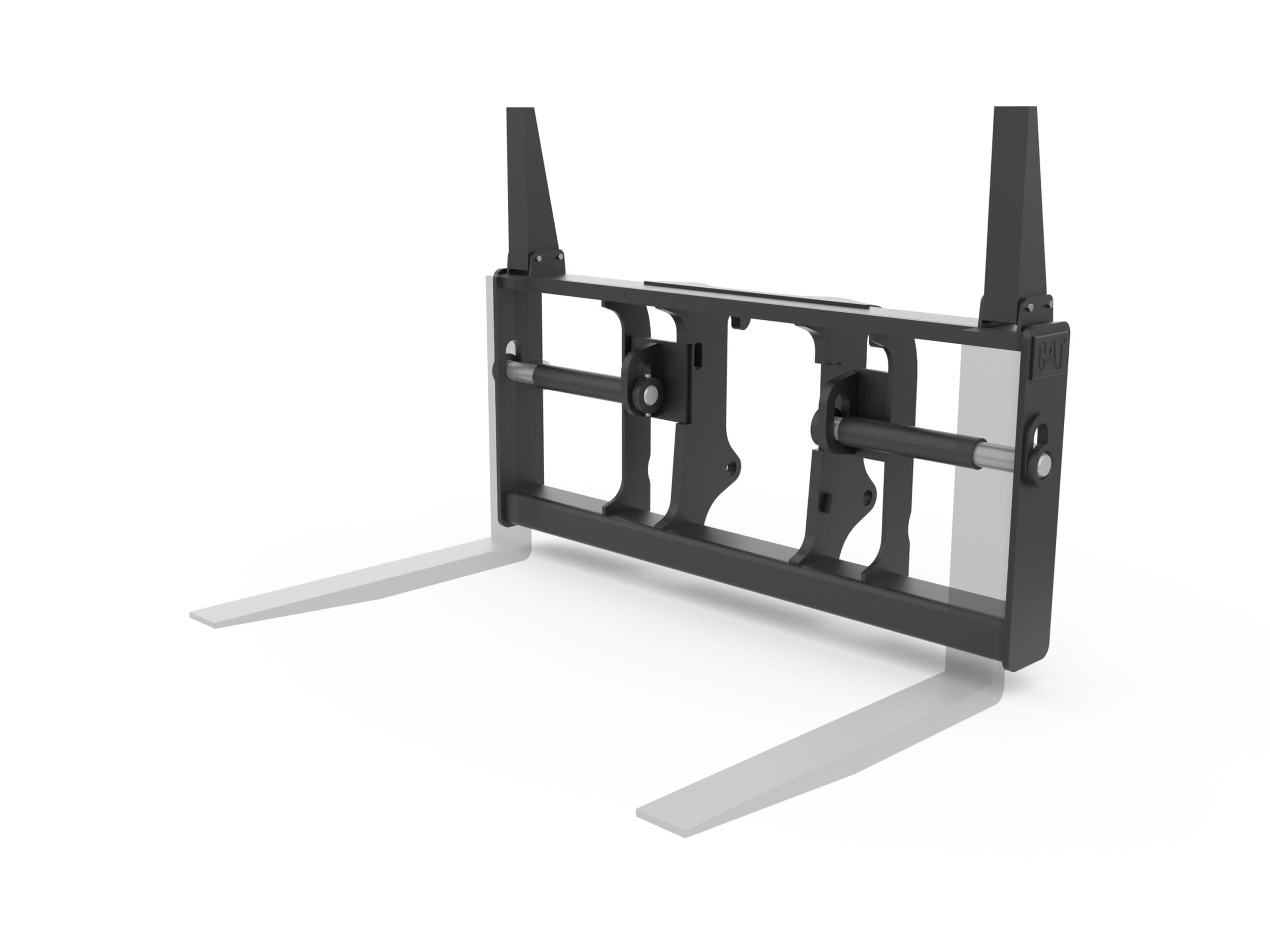

Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
1524 mm (60 in)
Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
1550 mm (61 in)
Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.

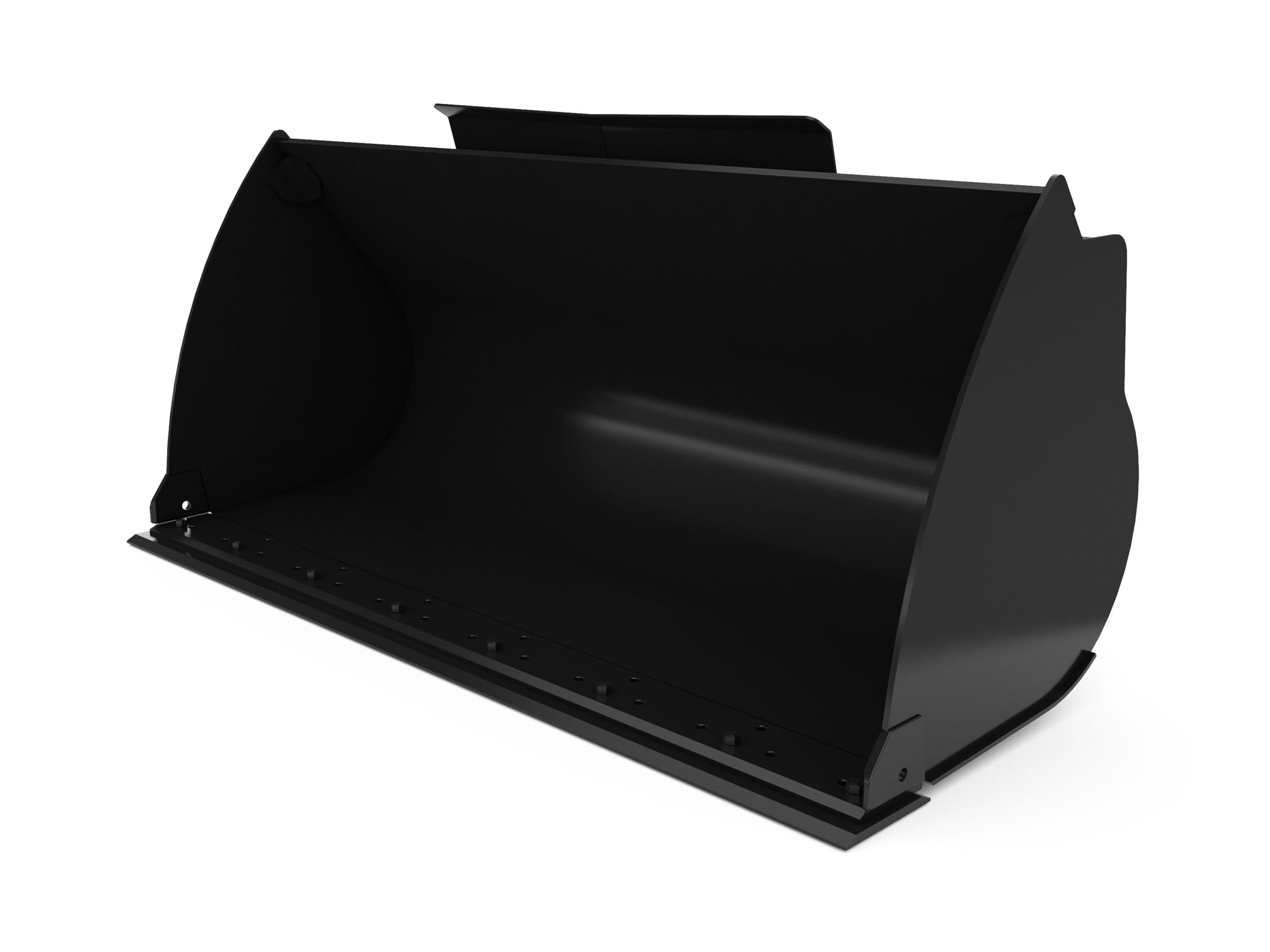

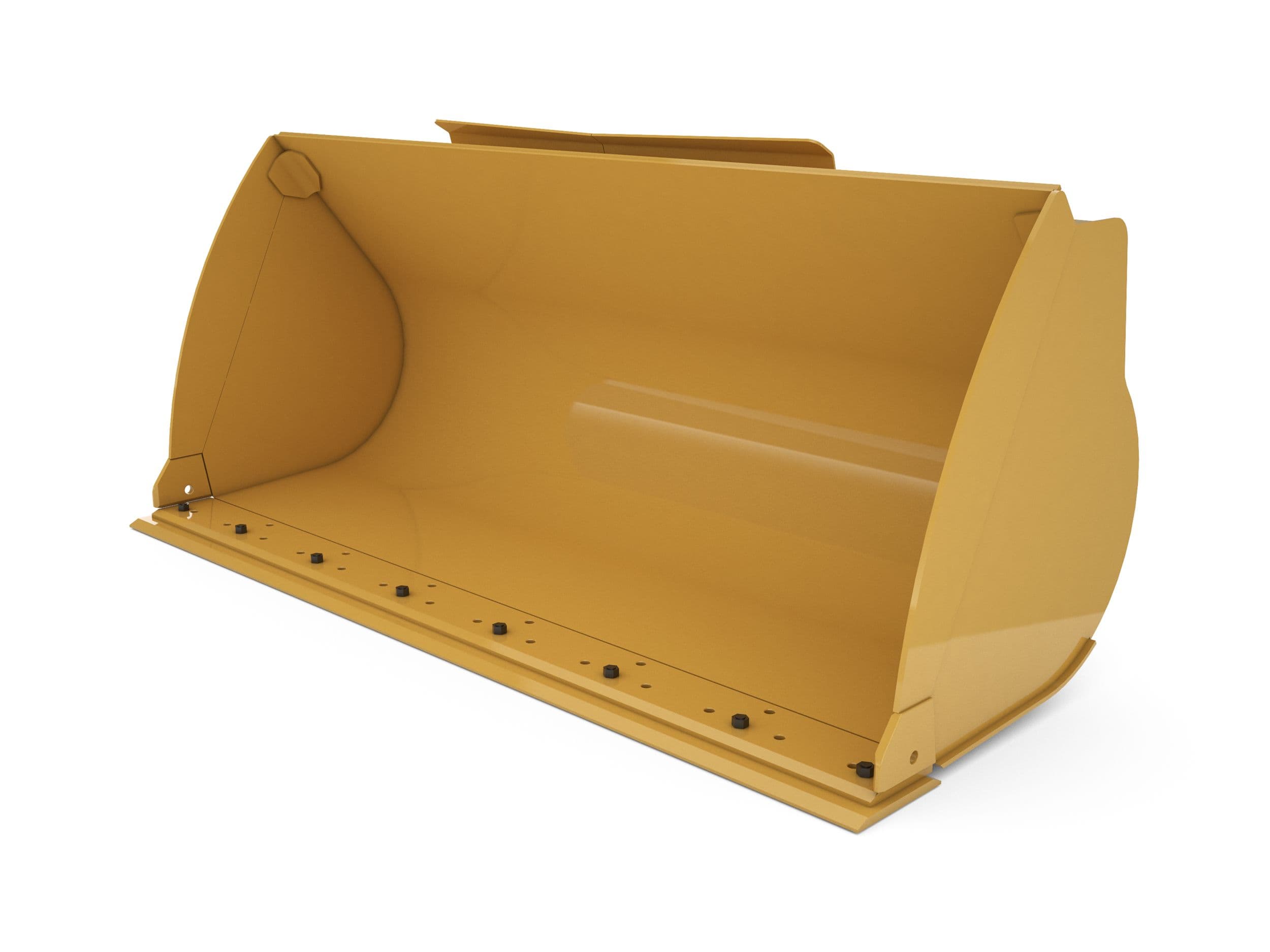

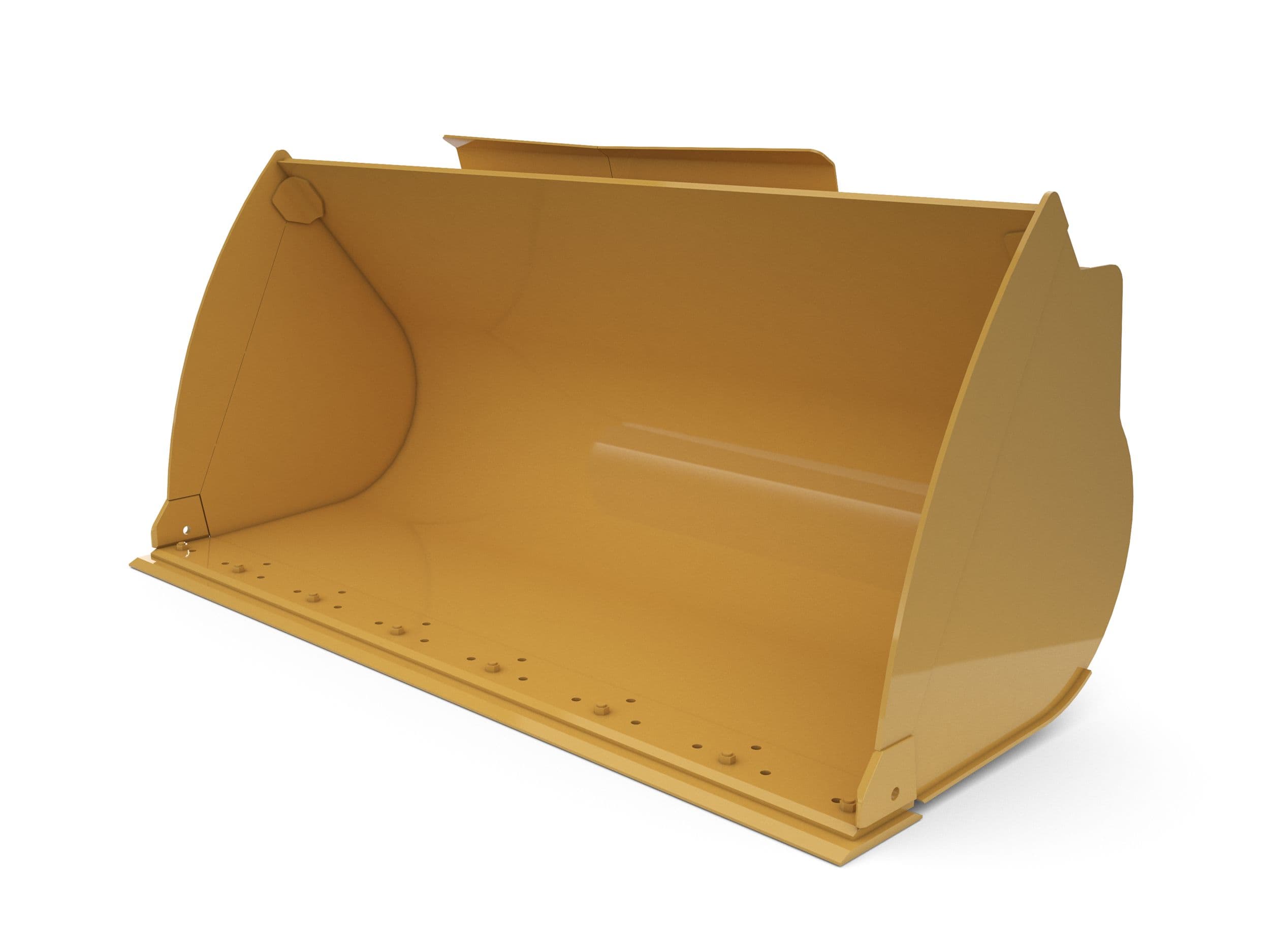

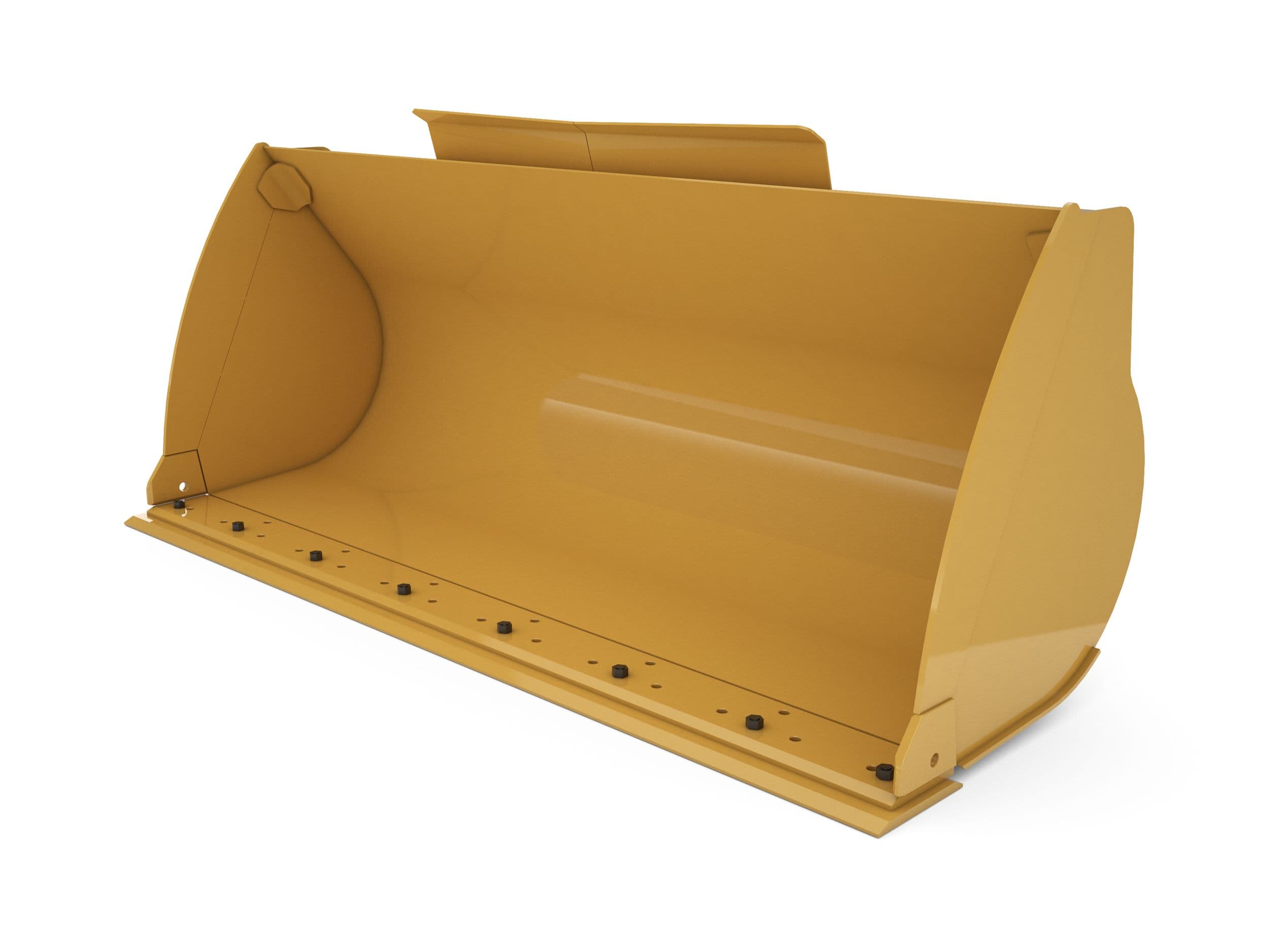

1.7 m3 (2.2 yd3), IT Coupler, Bolt-On Cutting Edge

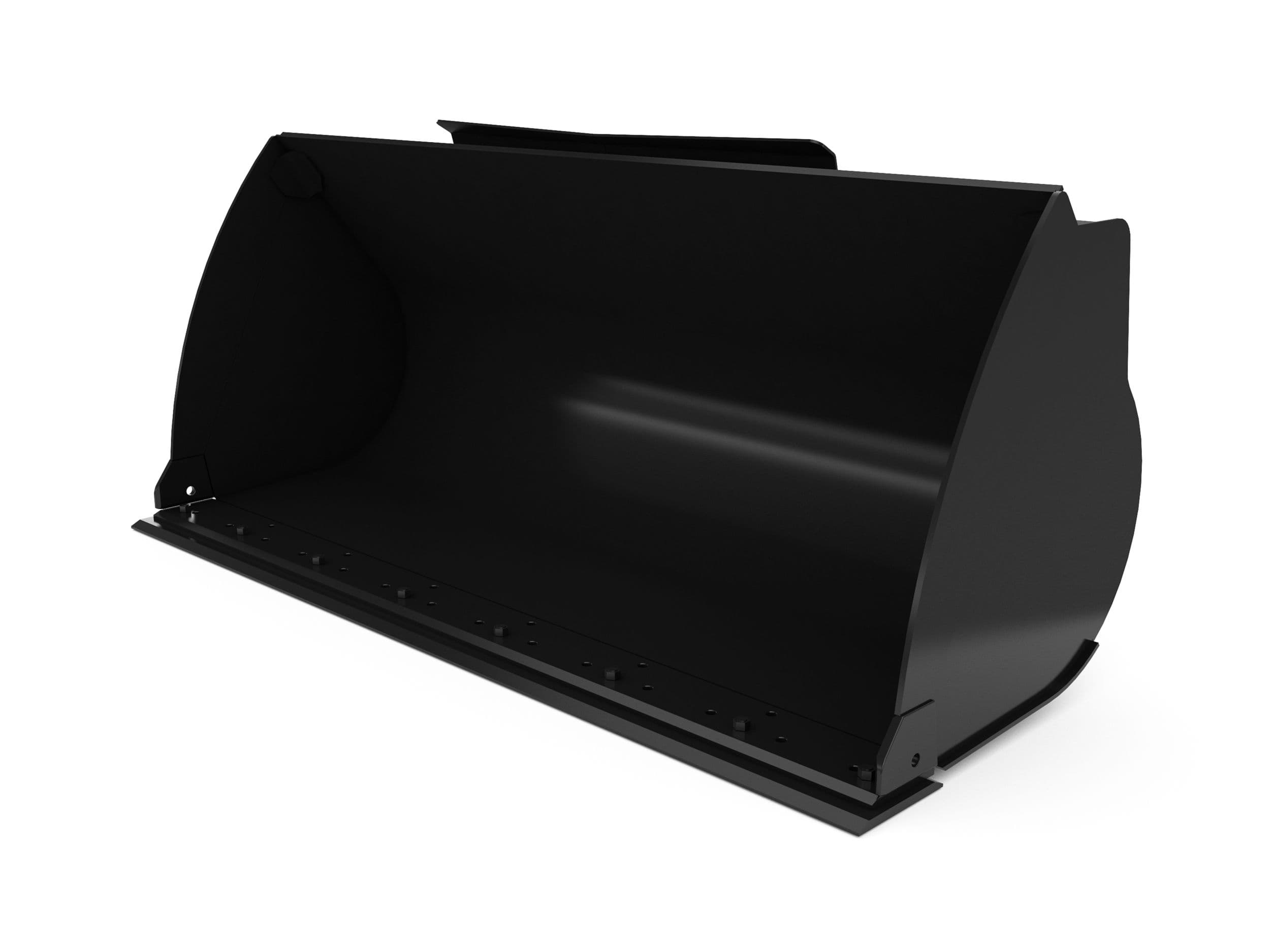

Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.3 m3 (1.7 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.3 m3 (1.7 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.4 m3 (1.8 yd3), Pin On, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.

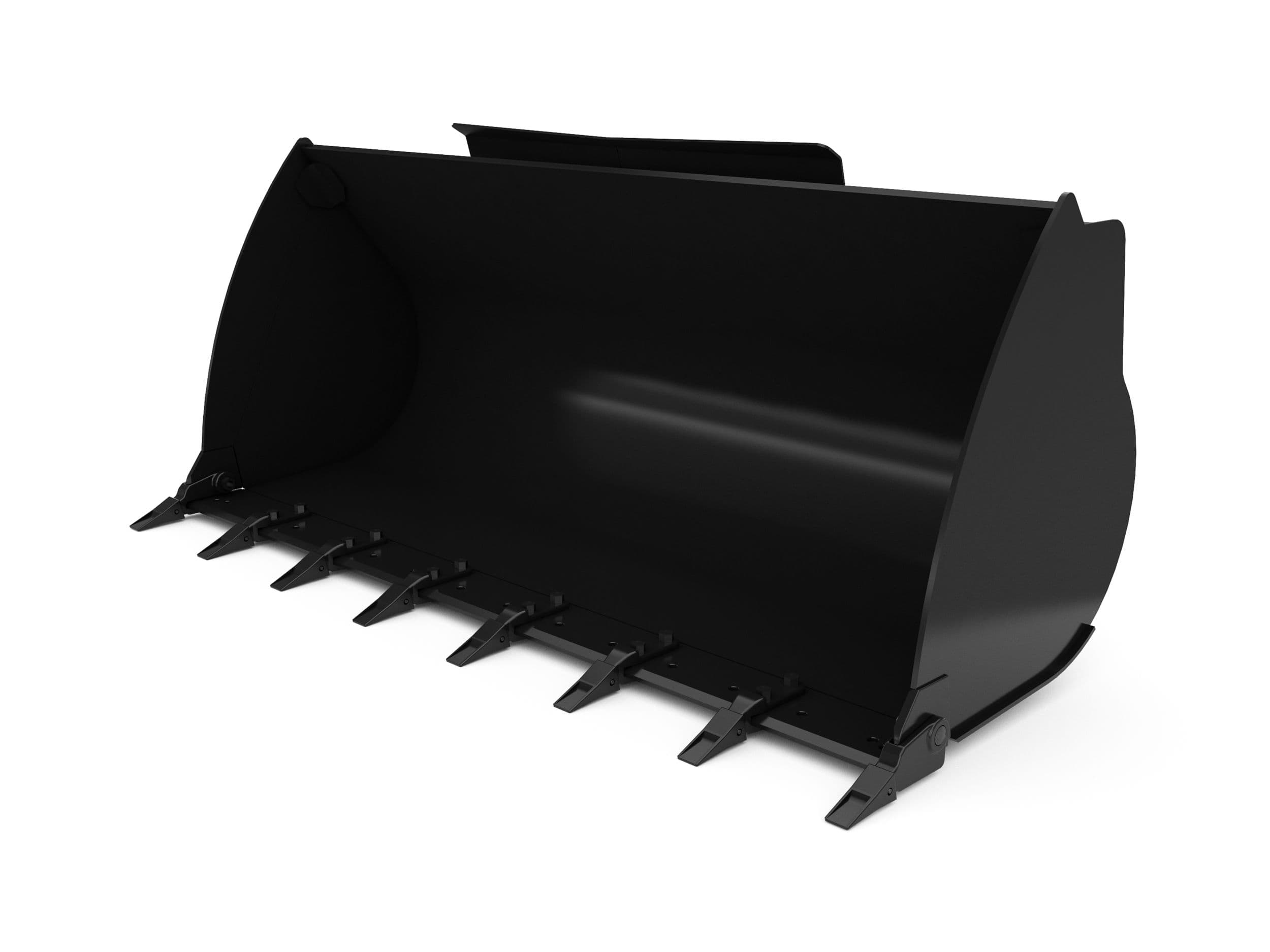

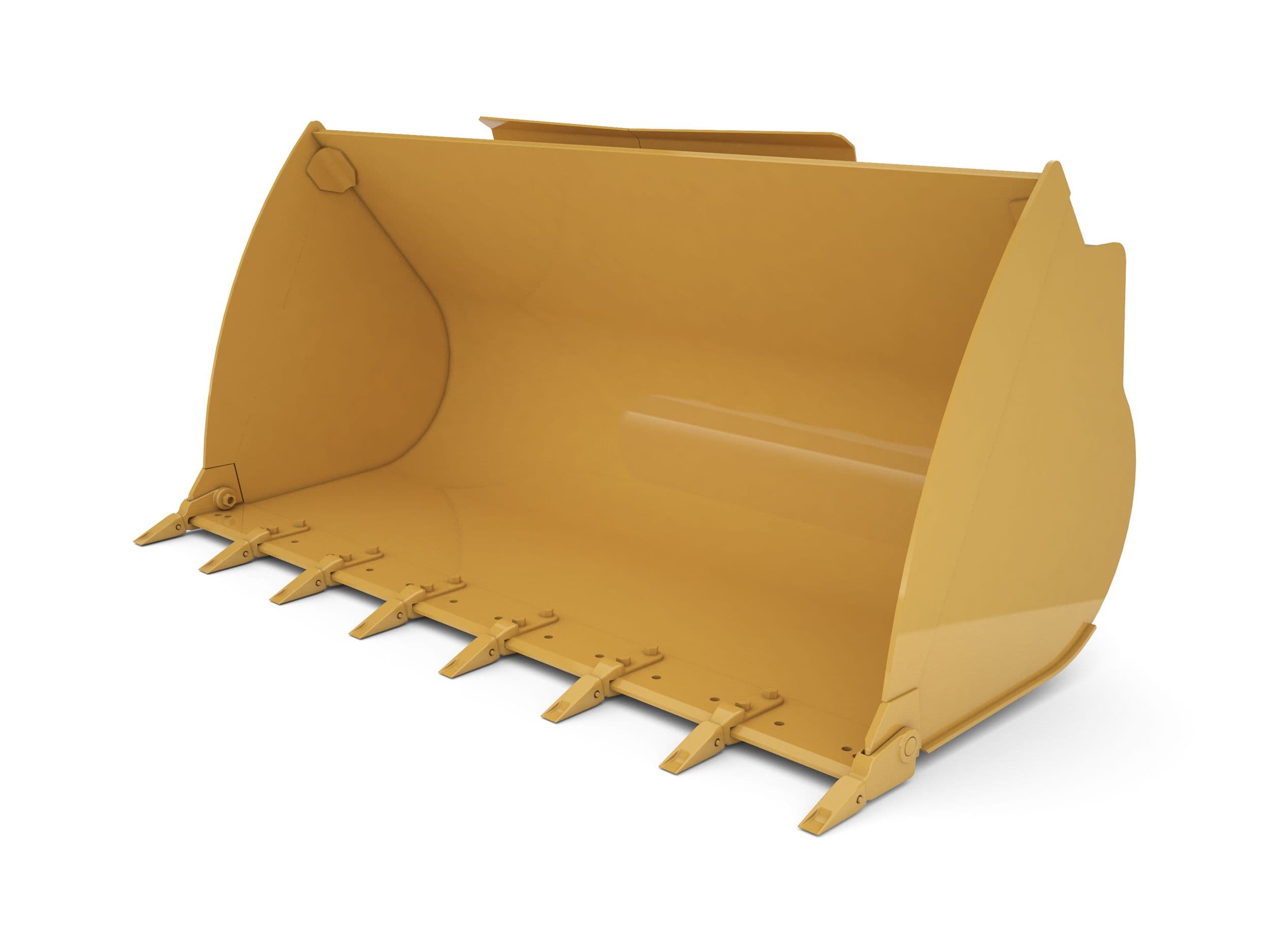

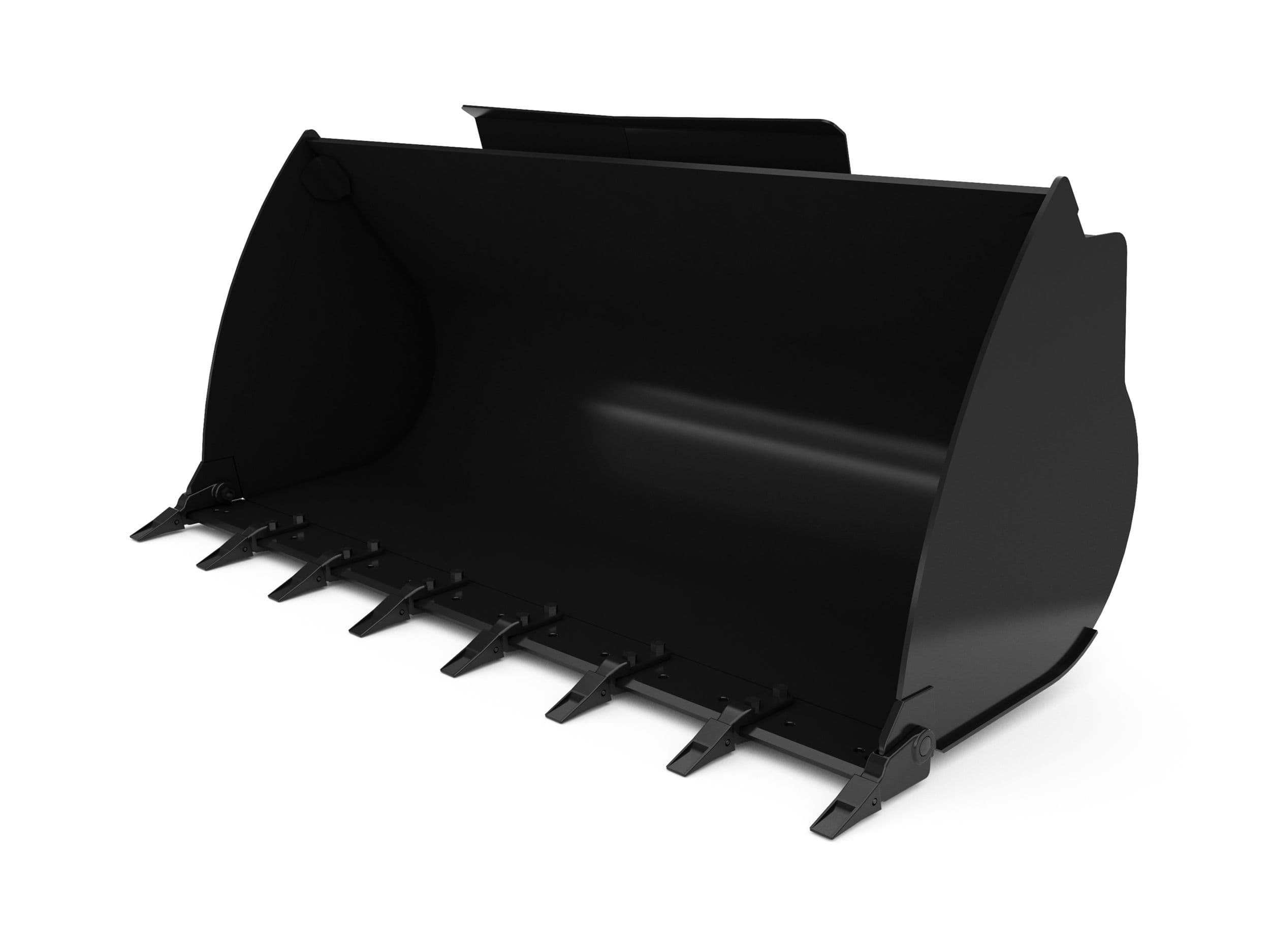

1.4 m3 (1.8 yd3), ISO Coupler, Bolt-On Teeth

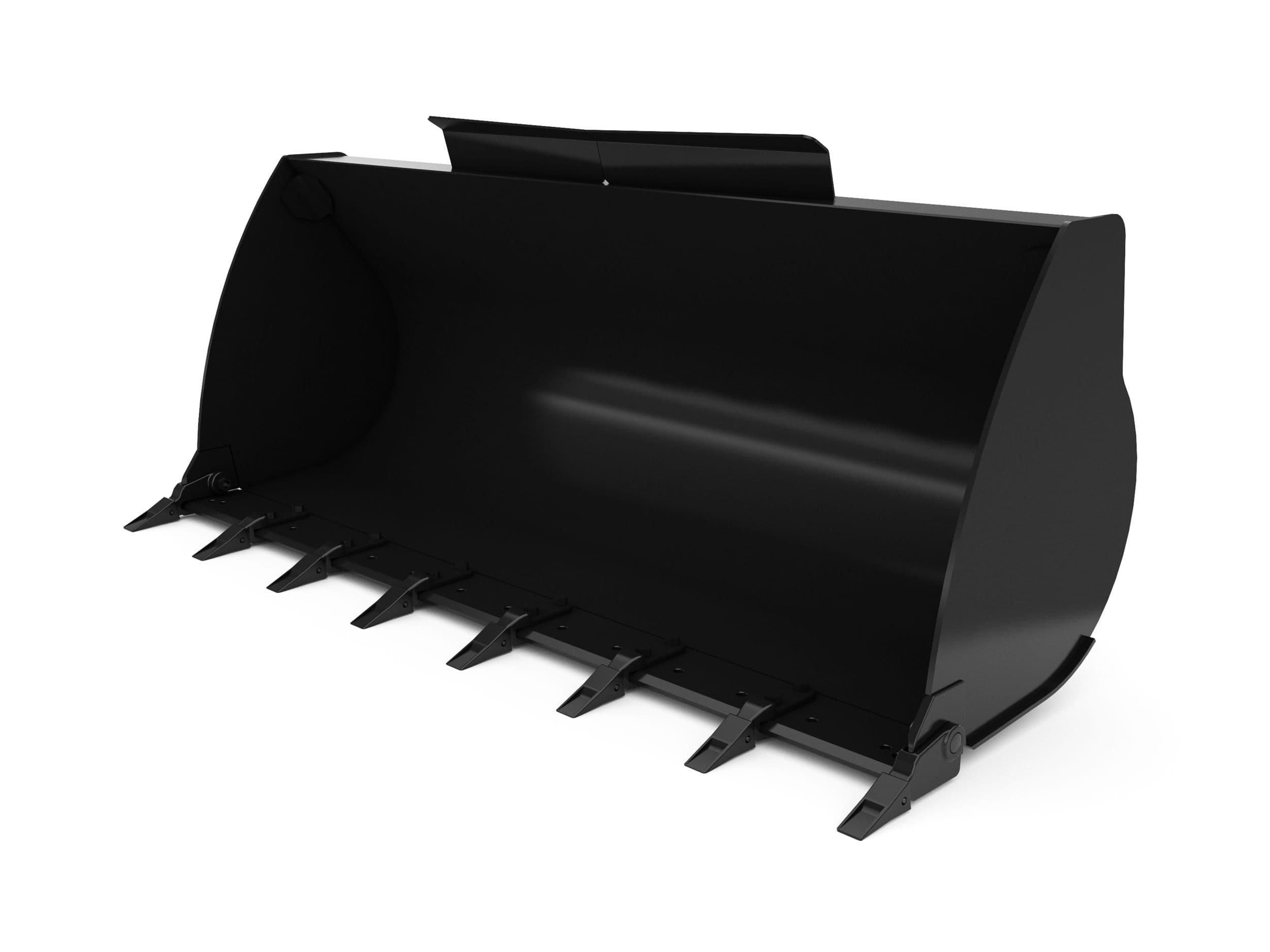

Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.2 m3 (1.6 yd3), ISO Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.2 m3 (1.6 yd3), IT Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.5 m3 (2.0 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.4 m3 (1.8 yd3), IT Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.3 m3 (1.7 yd3), Pin On, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.6 m3 (2.1 yd3), Pin On, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.5 m3 (2.0 yd3), IT Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.9 m3 (2.5 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.5 m3 (2.0 yd3), Pin On, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.5 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.9 m3 (2.5 yd3), Pin On, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.8 m3 (2.4 yd3), Pin On, Bolt-On Cutting Edge
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.7 m3 (2.2 yd3), Pin On, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.
1.8 m3 (2.4 yd3), Pin On, Bolt-On Teeth
Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.

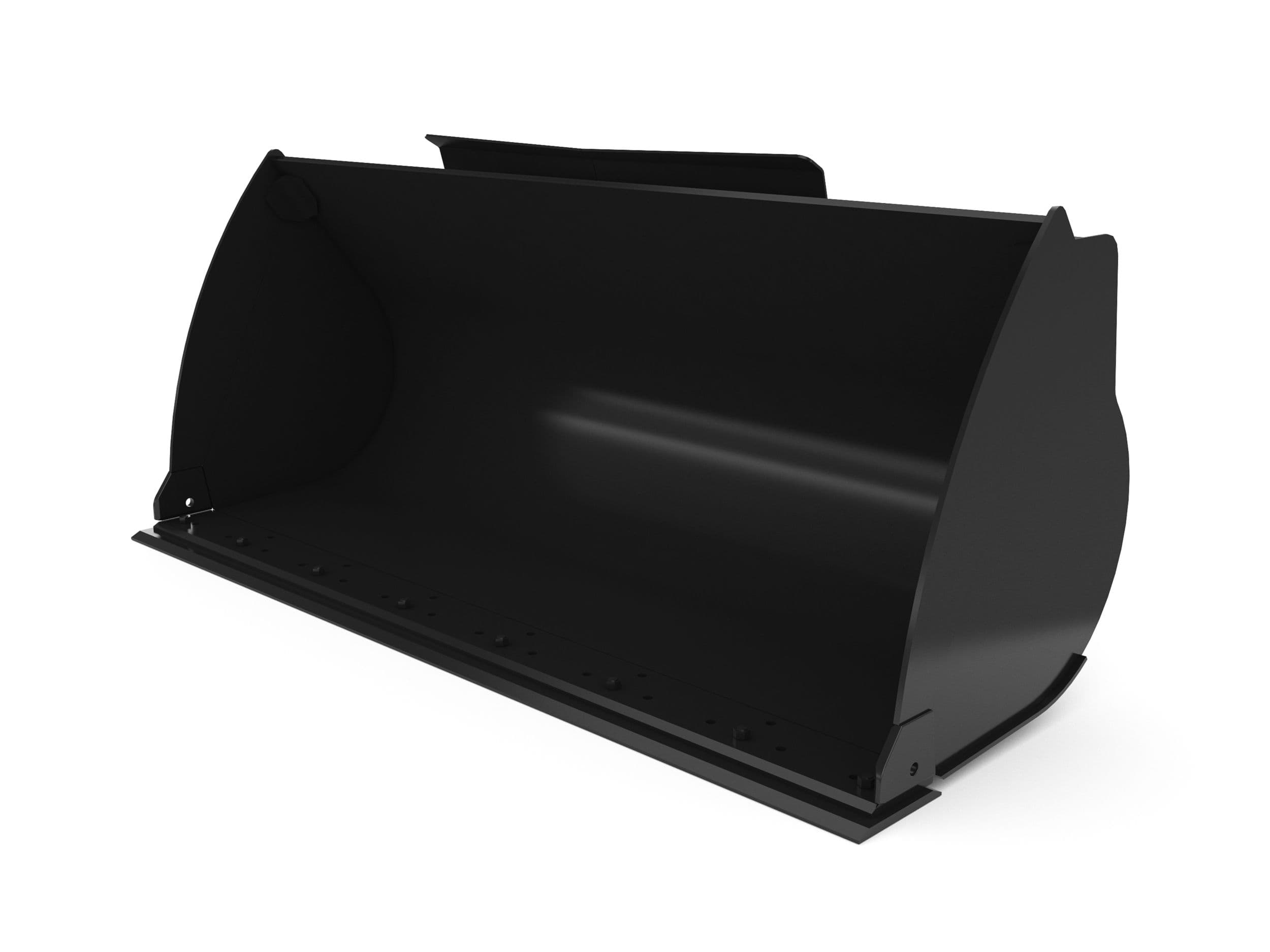

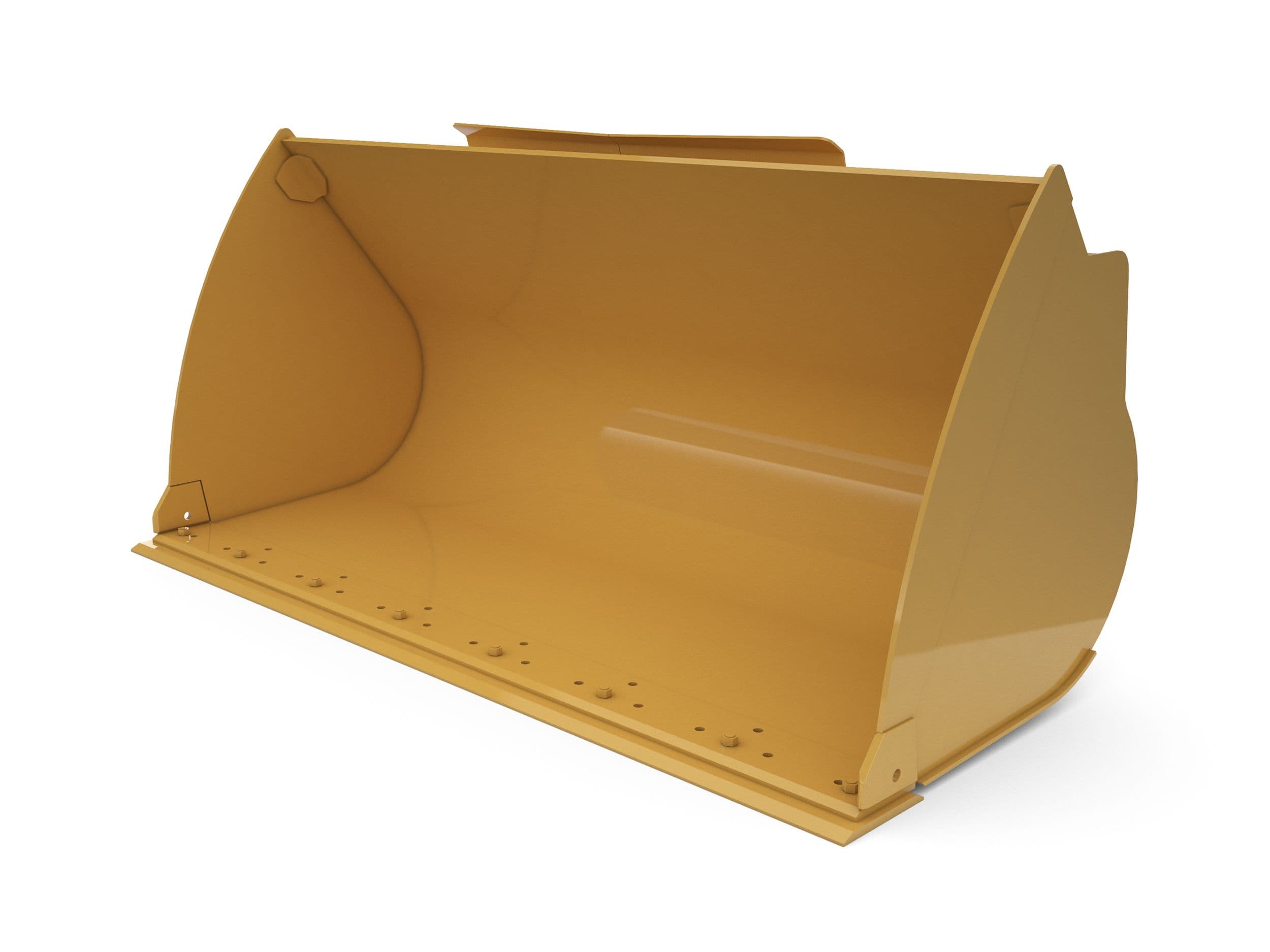

1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
1.8 m3 (2.4 yd3), ISO Coupler, Weld-On Teeth
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
1.6 m3 (2.1 yd3), ISO Coupler, Weld-On Teeth
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.
1.5 m3 (2.0 yd3), ISO Coupler, Weld-On Teeth
Cat® Flat Floor Buckets are Performance Series, General Purpose Buckets that incorporate a specially designed long floor and a rear cutting edge to provide optimum results and productivity when performing light grading or back-dragging—while retaining all the premium loading-characteristic of the Performance Series.

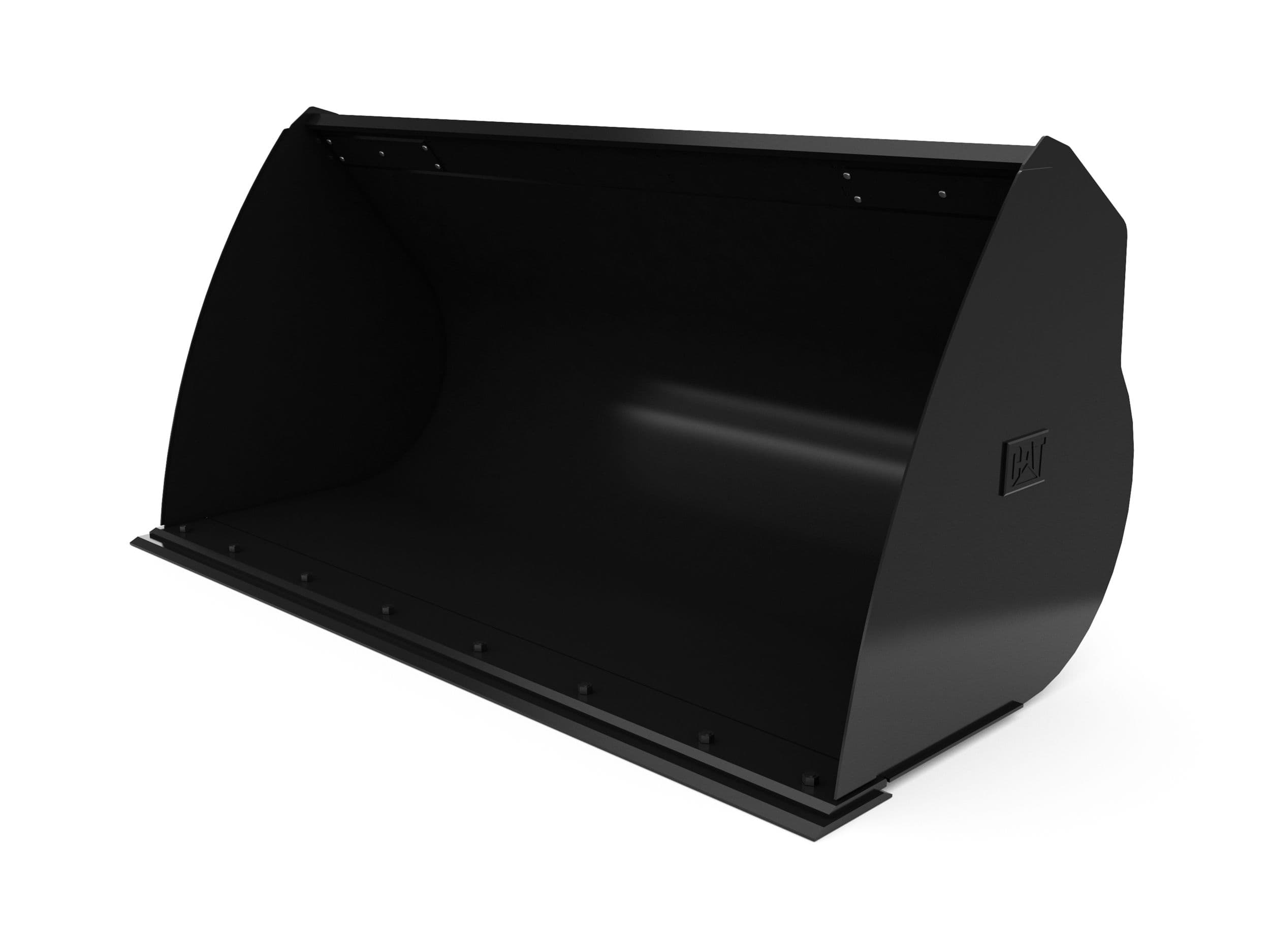

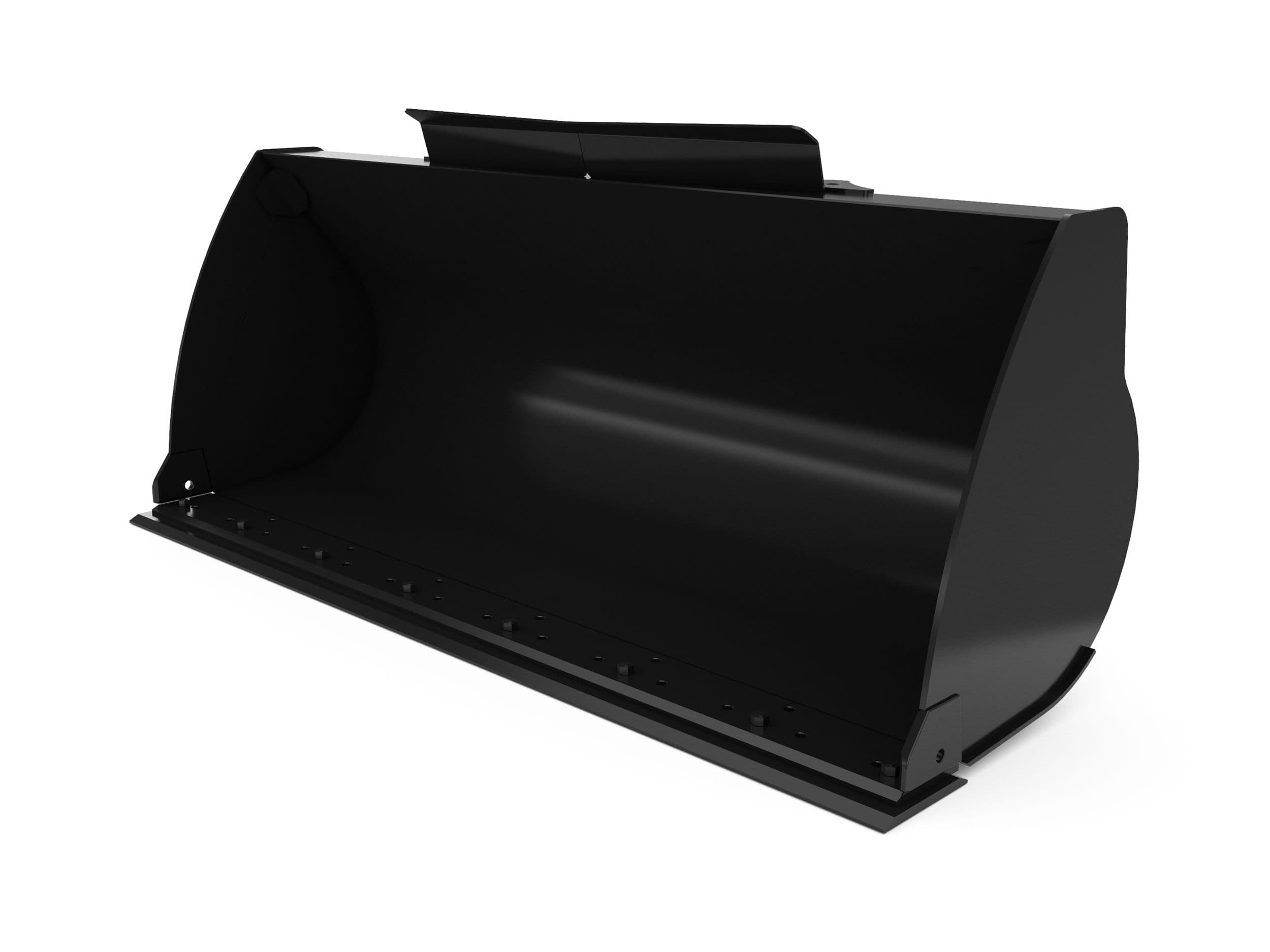

2.5 m3 (3.3 yd3), IT Coupler, Bolt-On Cutting Edge

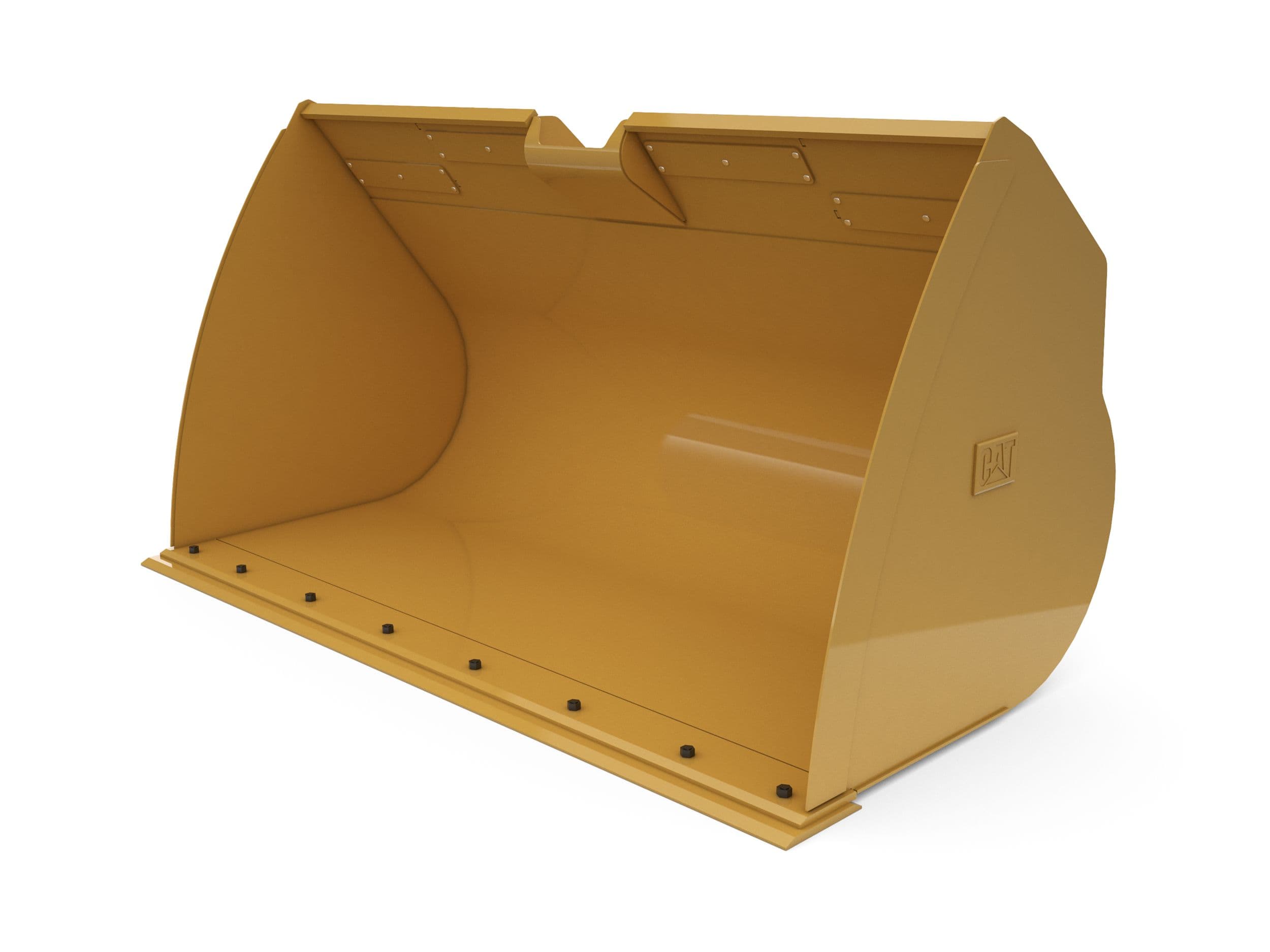

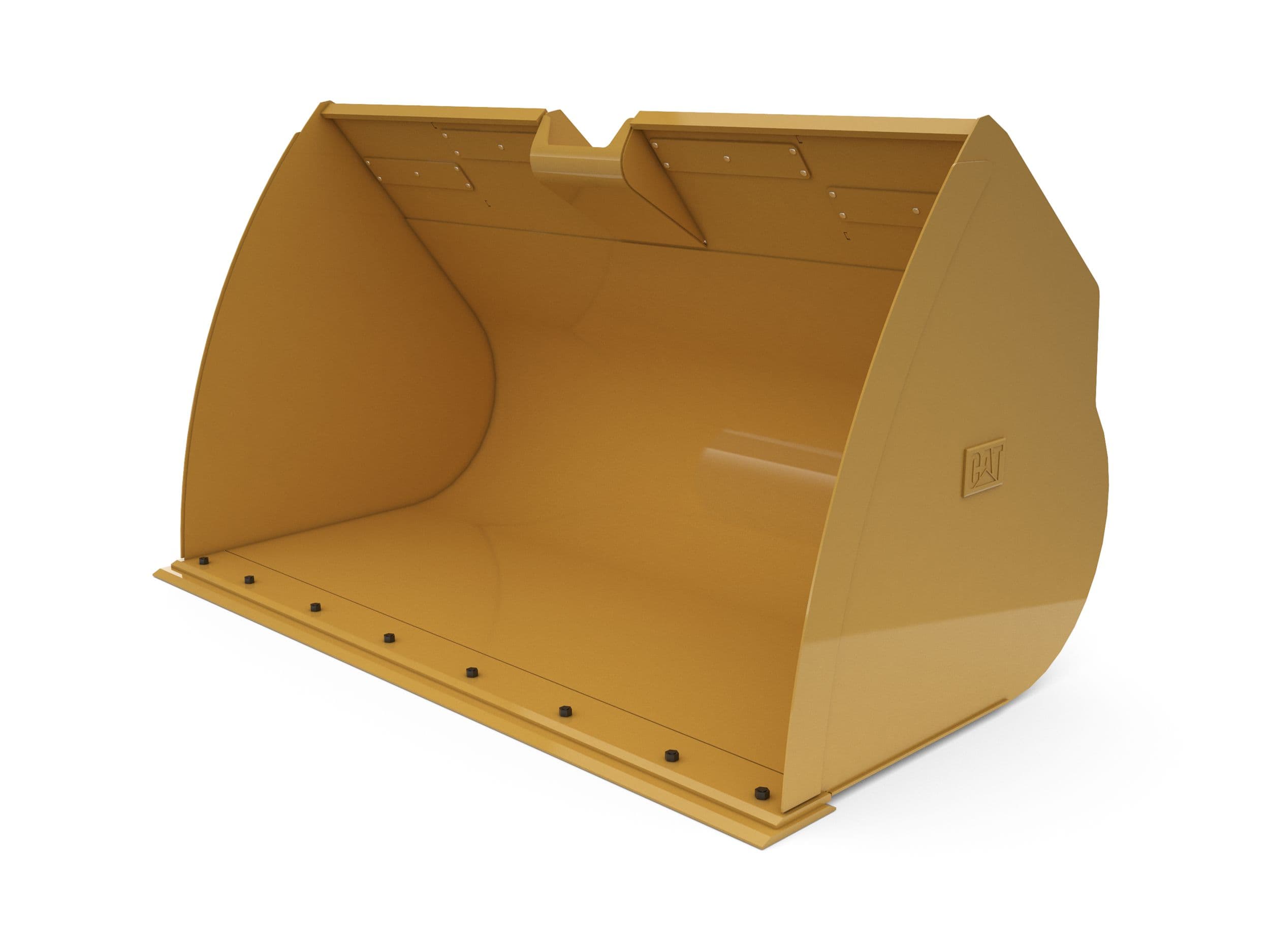

Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
2.5 m3 (3.3 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
2.5 m3 (3.3 yd3), Pin On, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.0 m3 (3.9 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.0 m3 (3.9 yd3), Pin On, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.5 m3 (4.6 yd3), IT Coupler, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.5 m3 (4.6 yd3), ISO Coupler, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
3.5 m3 (4.6 yd3), Pin On, Bolt-On Cutting Edge
Cat® Light Material Performance Series Buckets leverage many of the same features found in the General Purpose Bucket but with higher volume capacities to handle less dense materials such as top soil, fertilizer, wood chips and many more.
BA25 Manual
Hydraulic and Manual Cat® Angle Brooms for Skid Steer Loaders, Compact Track Loaders, Backhoe Loaders, Compact Wheel Loaders and Small Wheel Loaders are ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
2134 mm (84 in)
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
3941 mm (155 in)
Move pipe, concrete blocks, highway dividers and other construction materials quickly and easily with an Extendable Material Handling Arm. Length of the arm is manually adjustable to match load and reach requirements.
4203 mm (165 in)
Move pipe, concrete blocks, highway dividers and other construction materials quickly and easily with an Extendable Material Handling Arm. Length of the arm is manually adjustable to match load and reach requirements.
BP25
Pickup Brooms for Cat® Skid Steer Loaders, Backhoe Loaders, Integrated Toolcarriers, and Wheel Loaders sweep and deposit materials into an integrated hopper for easy removal and dumping.
