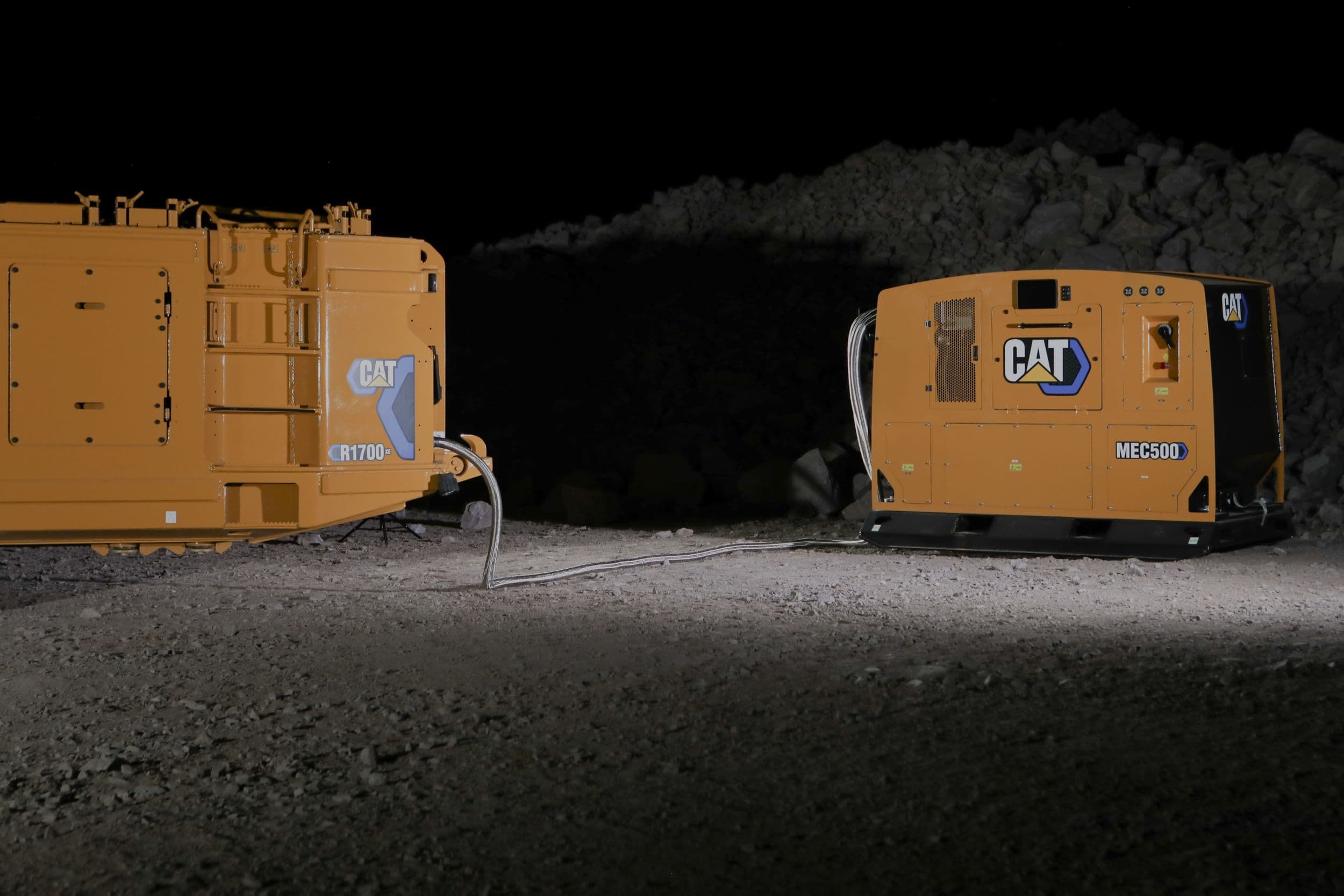

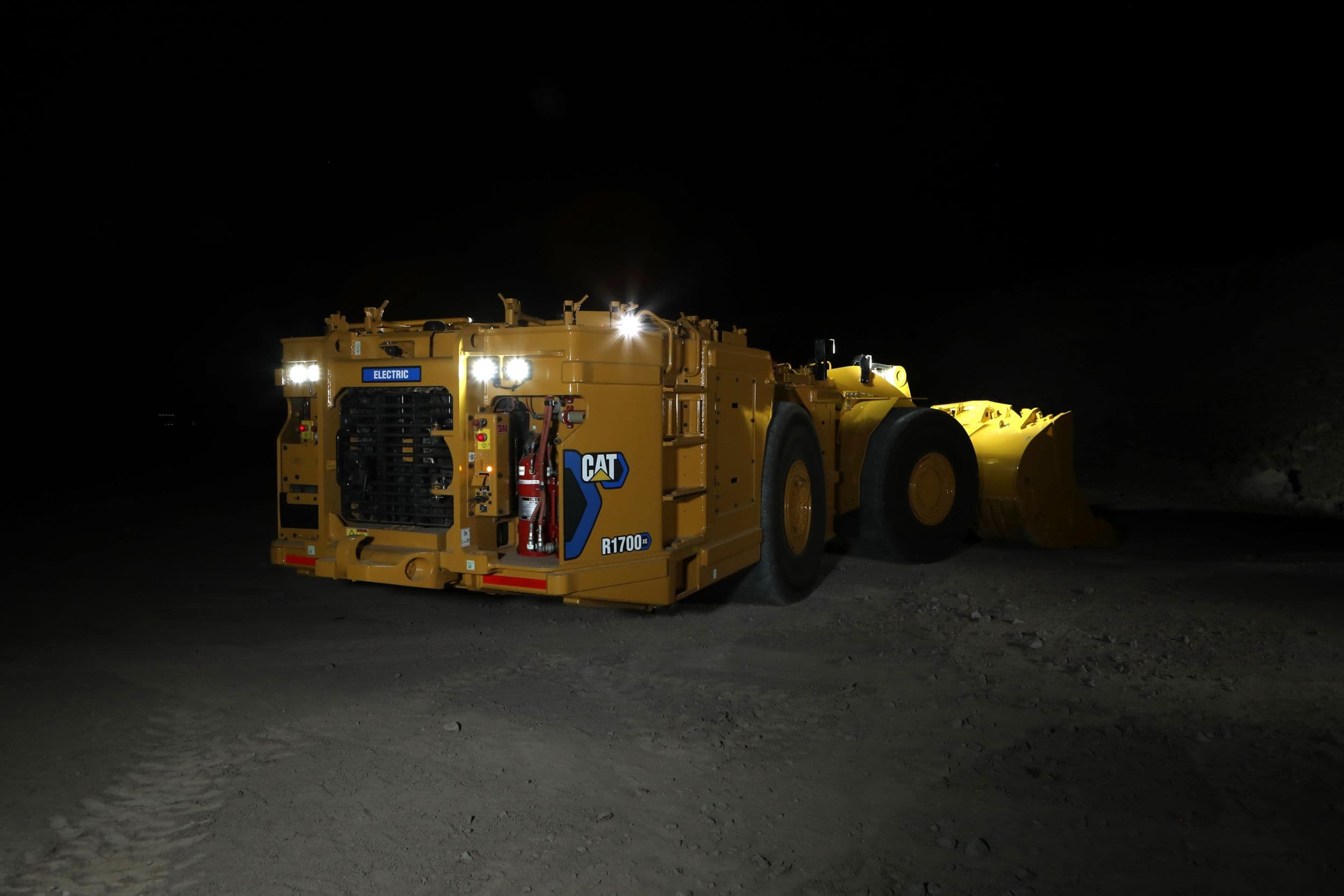

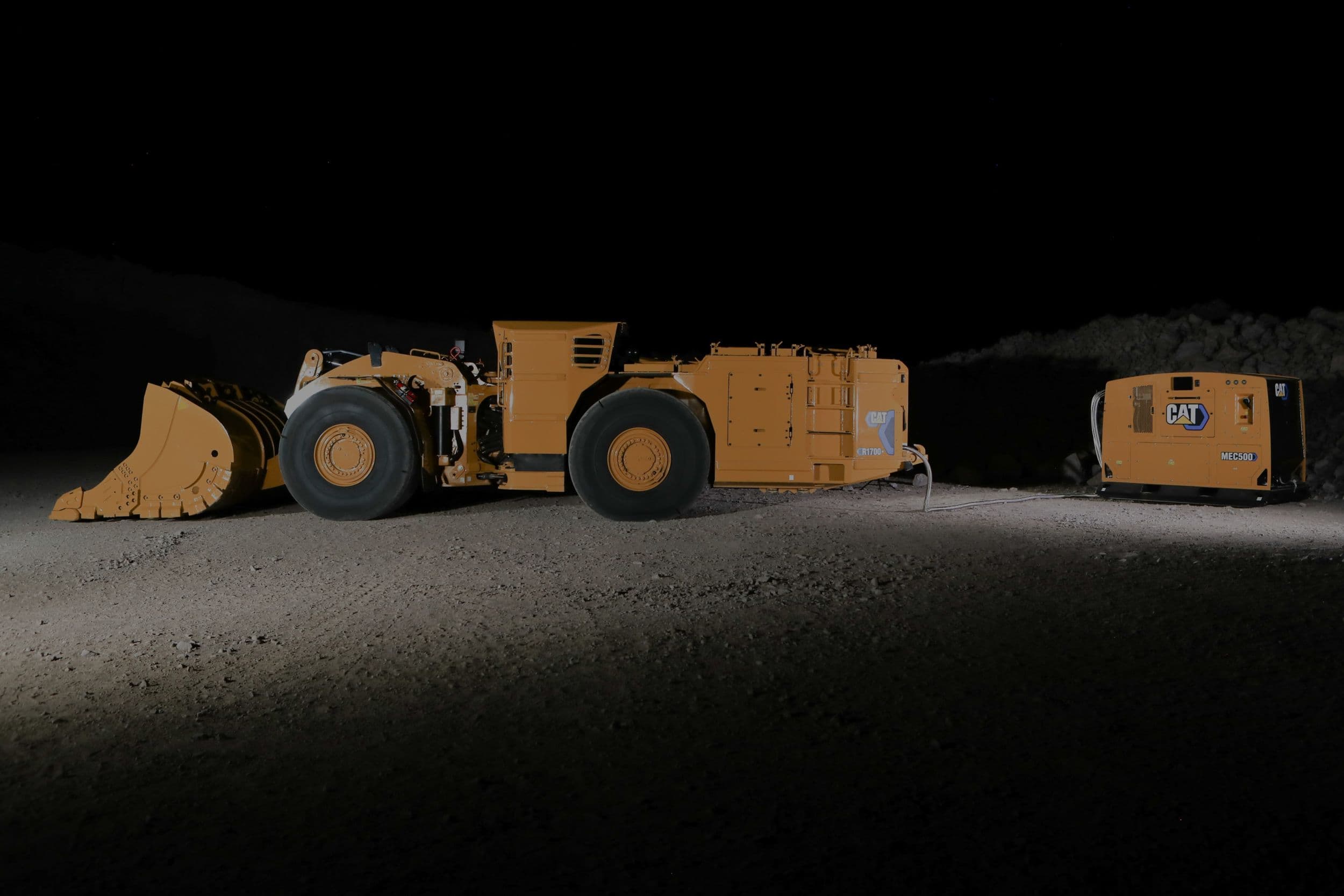

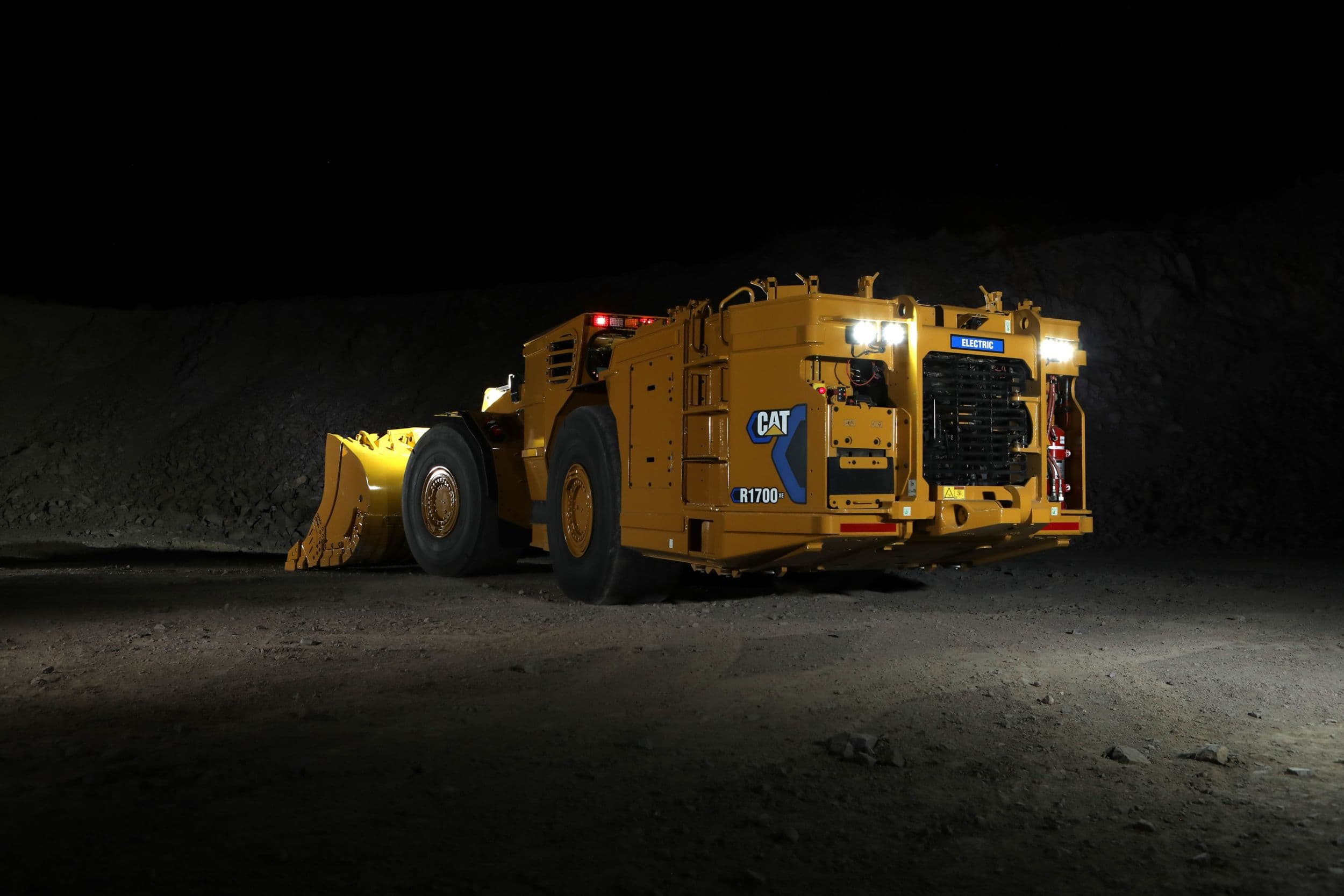

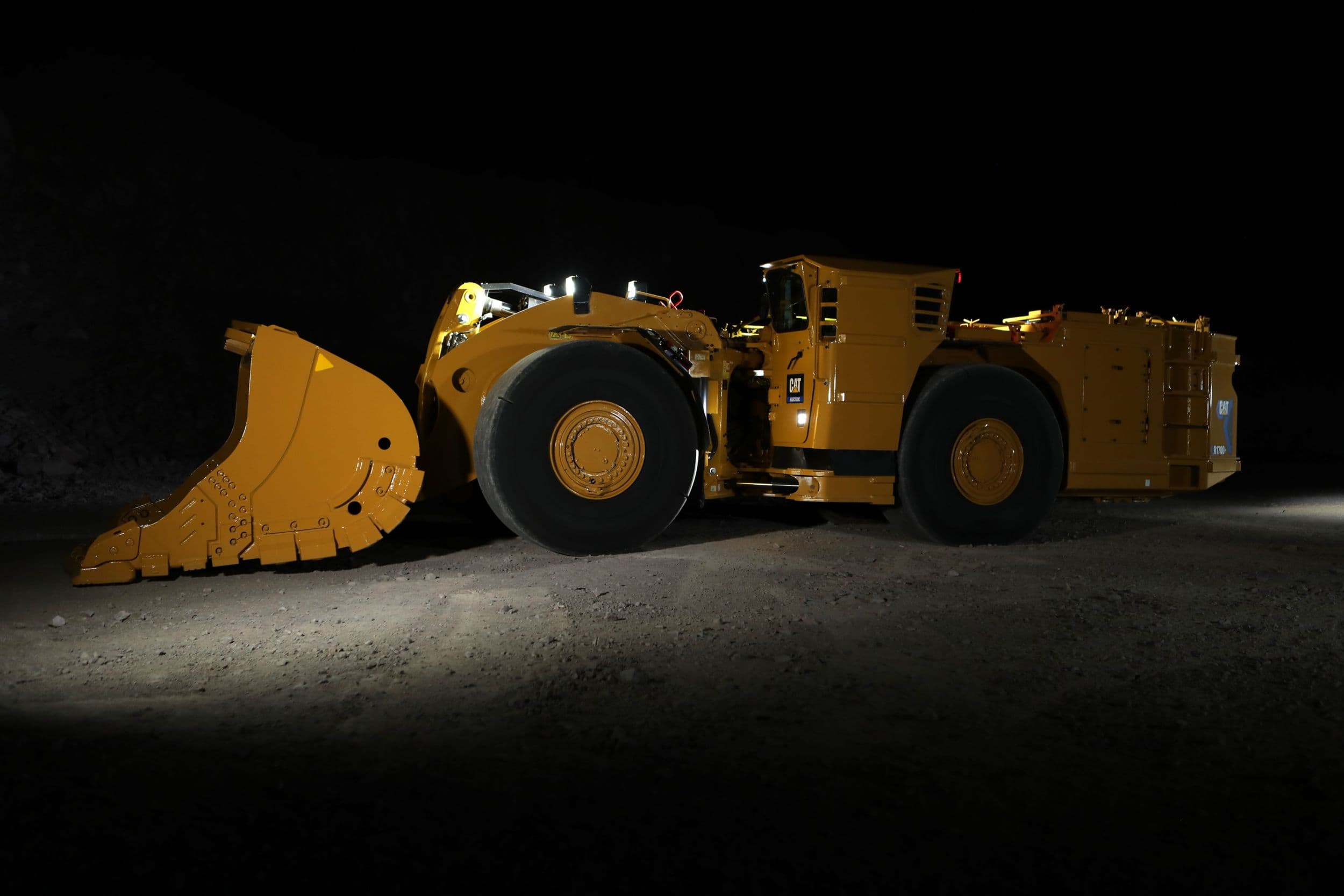

What if you could have the class-leading payload and superior productivity of the proven Cat® R1700 underground loader without the engine heat or exhaust emissions? You can. Introducing the R1700 XE battery electric LHD—a high-productivity, zero exhaust emission loader with the industry’s only onboard battery. It charges quickly—in less than 20 minutes when paired with two of the durable and mobile Cat MEC500 chargers. This provides an alternative to expensive static charging station infrastructure, as well as the need for additional batteries, battery handling and battery swapping. The machine also features Autodig for optimized loading and is factory-ready for autonomous operation. And it delivers the powerful performance, maximum uptime and low operating costs you demand.
Underground Mining Load Haul Dump (LHD) Loaders
Overview
What if you could have the class-leading payload and superior productivity of the proven Cat® R1700 underground loader without the engine heat or exhaust emissions? You can. Introducing the R1700 XE battery electric LHD—a high-productivity, zero exhaust emission loader with the industry’s only onboard battery. It charges quickly—in less than 20 minutes when paired with two of the durable and mobile Cat MEC500 chargers. This provides an alternative to expensive static charging station infrastructure, as well as the need for additional batteries, battery handling and battery swapping. The machine also features Autodig for optimized loading and is factory-ready for autonomous operation. And it delivers the powerful performance, maximum uptime and low operating costs you demand.
- Nominal Payload Capacity15000kg
- Operating Mass48743kg
- Shipping Weight51918kg
- Breakout Force - Lift and Tilt24190kg
- Static Tipping Load - Straight Ahead - Lift Arms Horizontal49203kg
- Static Tipping Load - Full Turn - Lift Arms Horizontal40649kg
The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.
The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.
Designed specifically to reduce time and costs associated with transportation, assembly and rework procedures for underground mining, the Cat® bolt-together bucket is the solution to lower repair costs, reduced machine down time and higher machine productivity.
