Underground Mining Load Haul Dump (LHD) Loaders

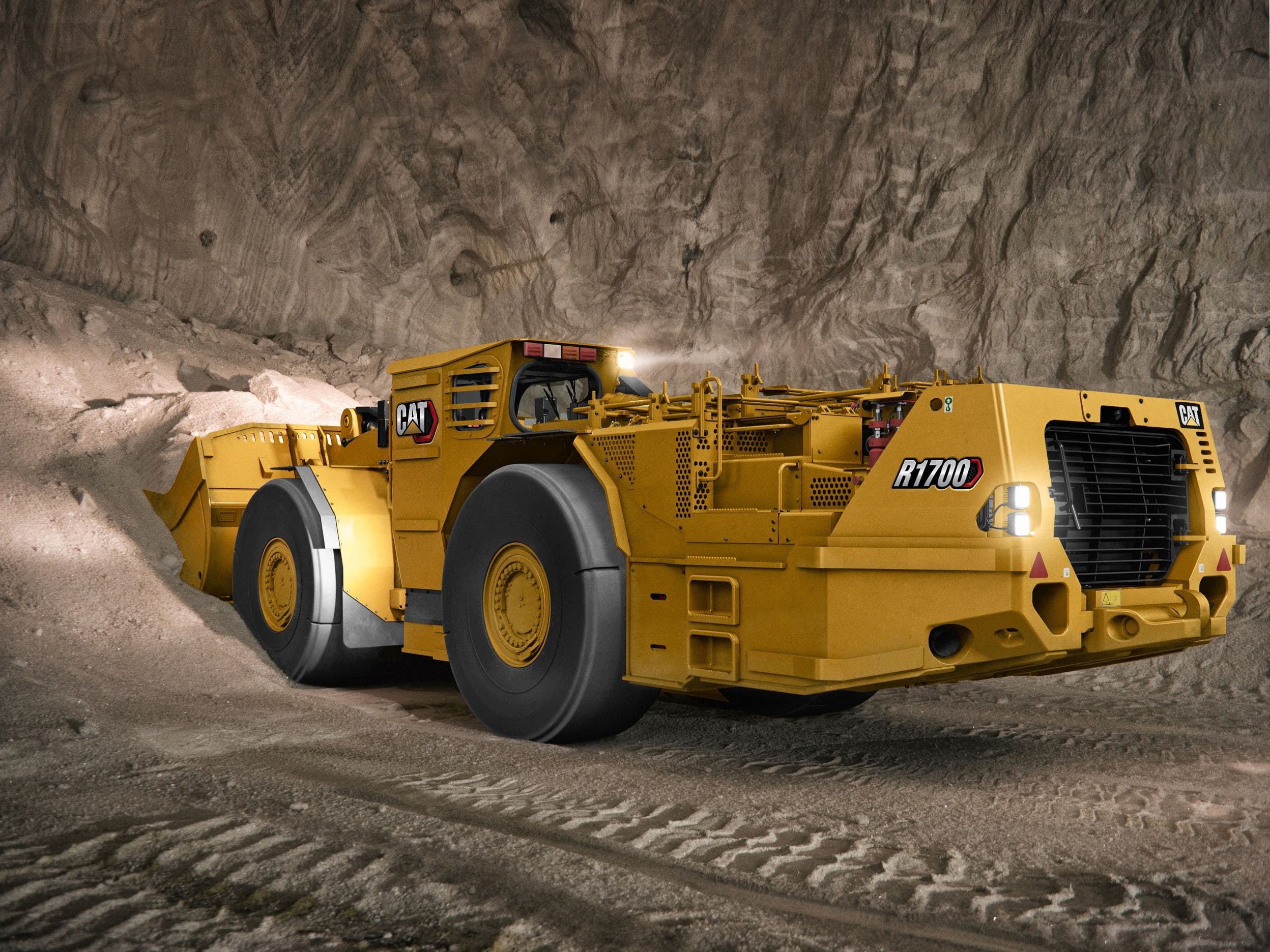

R1700

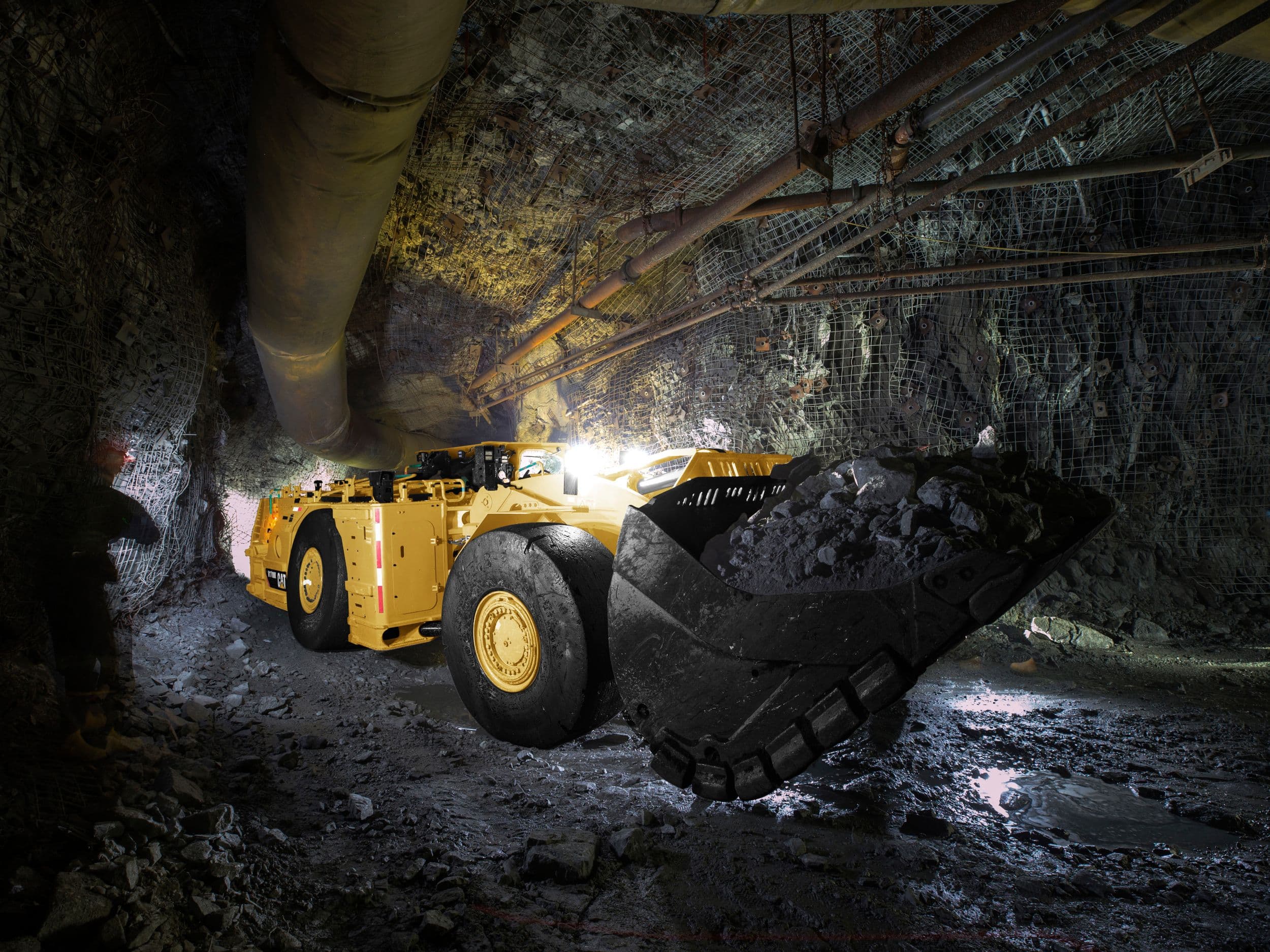

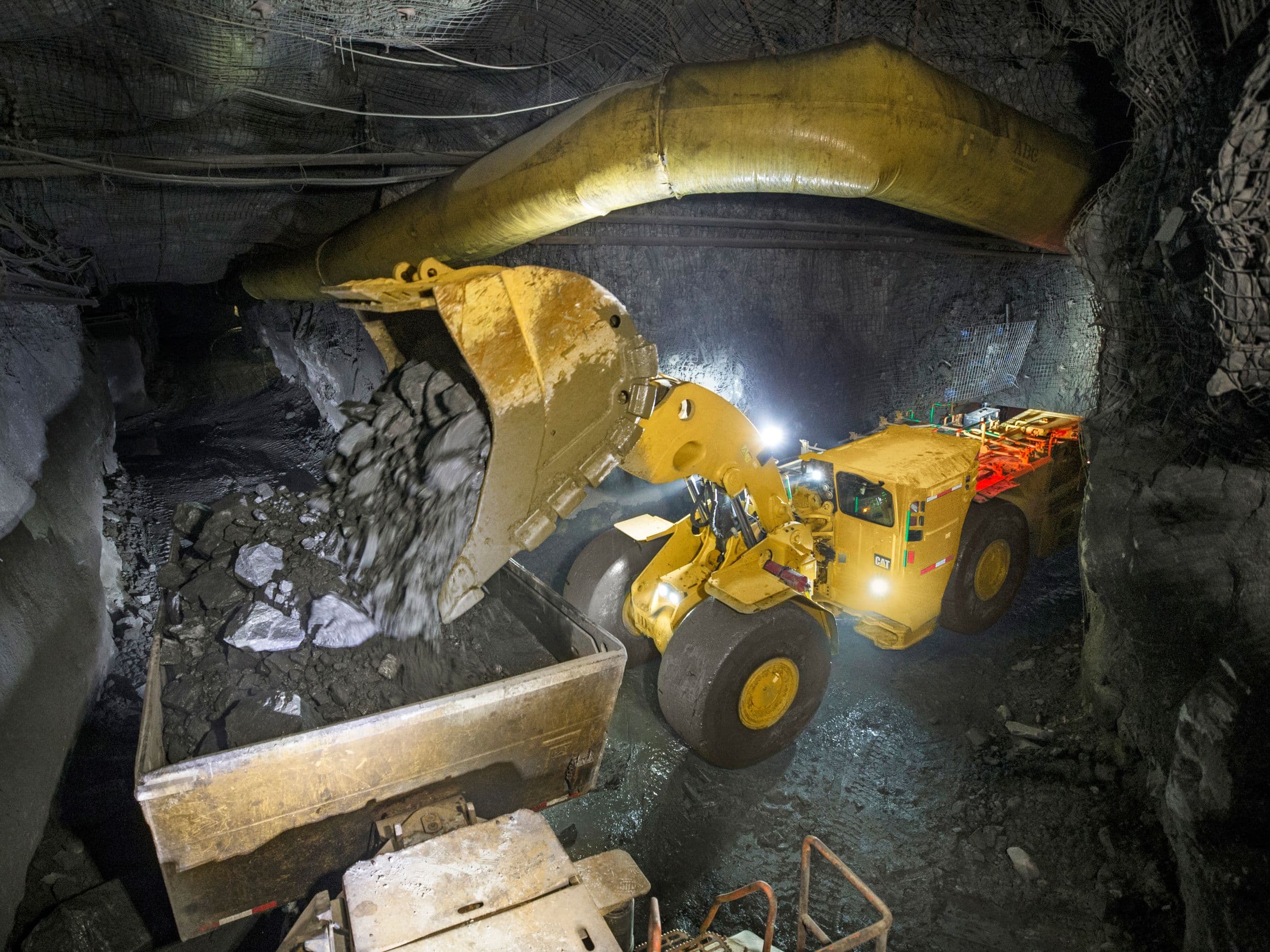

When it came time to redesign the Cat® R1700 Underground Loader, the goal was simple: add value, power and performance, and keep safety at the core. And we succeeded. With each cycle, the R1700 hauls 20% more material than its predecessor and is highly aggressive in the pile. It loads, climbs, hauls and dumps faster. And it’s factory ready for the latest technologies, including fully autonomous haulage, which takes safety and efficiency to a new level. The R1700 is infused with features to keep people safe. It offers three engine emission options, including one that meets Stage V standards, and can be tailored to your mine’s ventilation requirements.

A clean-sheet redesign, the R1700 loader leverages engineering talent from across Caterpillar to create the next generation of productive underground loading.

View all specifications View attachments View all downloads

Save for later Add to compare

Engine Power - Stage V Engine - ISO 14396:2002

257KW

Engine Power - Tier 3 Engine - ISO 14396:2002

269KW

Engine Power - VR Engine - ISO 14396:2002

269KW

Find a centre

Overview

Resources

R1700 Product Brochure

R1700 Technical Specifications

R1700 Walkaround Brochure

R1700 Poster

R1700 Continuous Product Improvment Flyer

R1700 USP

R1700 Rig Out Catalog

Specifications

Engine Power - Stage V Engine - ISO 14396:2002257kW
Engine Power - Tier 3 Engine - ISO 14396:2002269kW
Engine Power - VR Engine - ISO 14396:2002269kW

Attachments

COMPATIBLE WITH

7.5m3 (9.8 yds3) for R1700

Designed specifically to reduce time and costs associated with transportation, assembly and rework procedures for underground mining, the Cat® bolt-together bucket is the solution to lower repair costs, reduced machine down time and higher machine productivity.

View Models

6.8m3 (8.9 yds3) for R1700 and R1700 XE

View Models

5.7m3 (7.5 yds3) for R1700 & R1700 XE

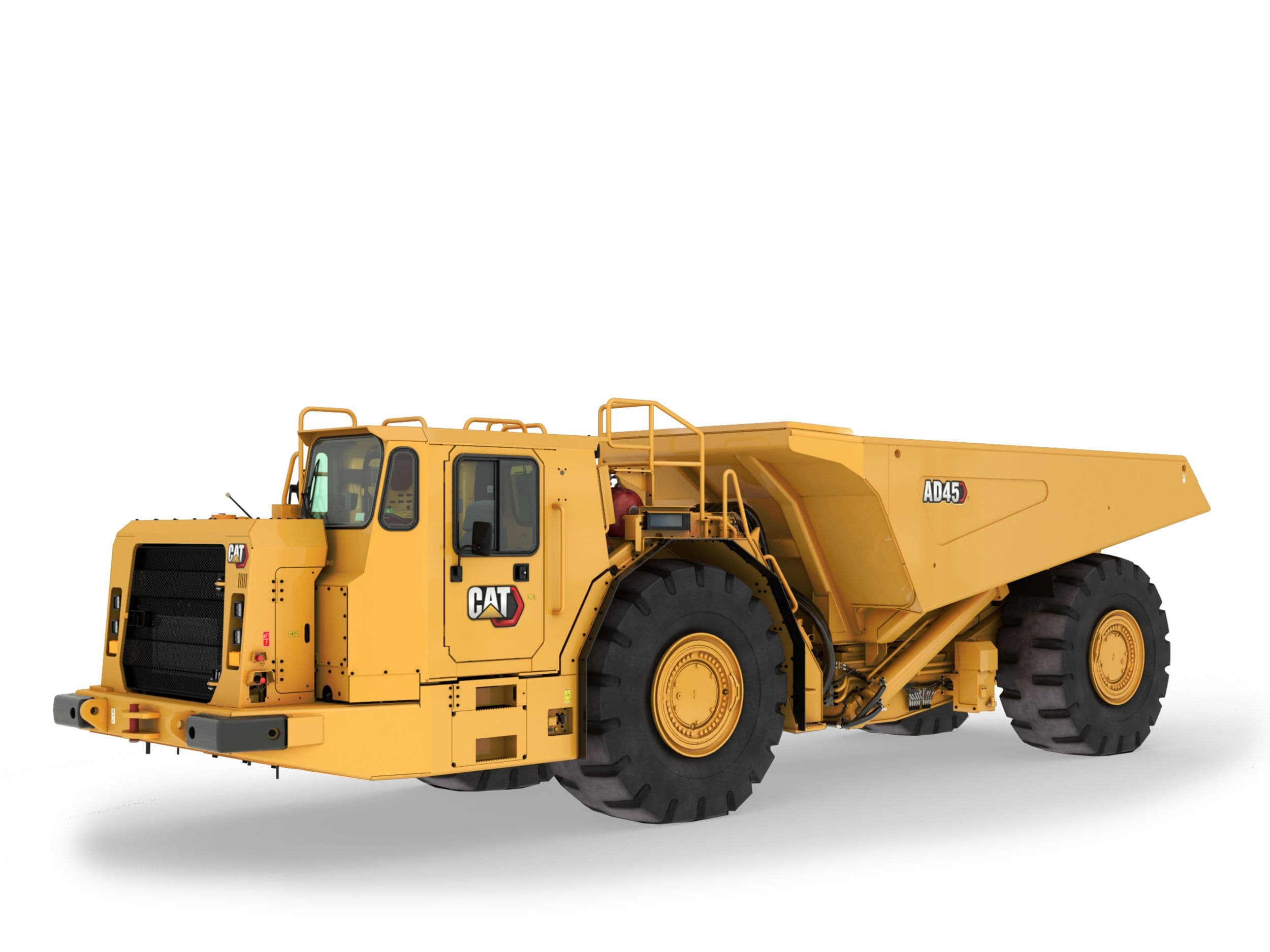

AD45

The Cat® AD45 Underground Truck delivers all the power, performance and reliability you expect from the AD45 — but the latest model also offers an an advanced EU Stage V compliant engine and aftertreatment solution that meets the strictest emissions standards, lowers your carbon footprint and improves air quality in your mine. In addition, a retrofit solution is available that allows you to retrofit the previous model, the AD45B, to meet the same strict standards. This ultra-clean diesel machine delivers superior productivity thanks to its ideal match with the next generation Cat R1700 underground loader and is technology-enhanced with features that improve productivity, boost uptime and keep operators and personnel safer on the job.

View Models

R1700 XE (Battery-Electric)

What if you could have the class-leading payload and superior productivity of the proven Cat® R1700 underground loader without the engine heat or exhaust emissions? You can. Introducing the R1700 XE battery electric LHD—a high-productivity, zero exhaust emission loader with the industry’s only onboard battery. It charges quickly—in less than 20 minutes when paired with two of the durable and mobile Cat MEC500 chargers. This provides an alternative to expensive static charging station infrastructure, as well as the need for additional batteries, battery handling and battery swapping. The machine also features Autodig for optimized loading and is factory-ready for autonomous operation. And it delivers the powerful performance, maximum uptime and low operating costs you demand.

View Models

Cat MineStar Detect Fatigue

Fatigued and distracted equipment operators are present on every mine site every day, and the consequences can be costly, even fatal. Cat® MineStar™ Detect can help you identify fatigue and distraction — and address it — in real time. This subscription-based offering combines our industry-leading Driver Safety System technology with risk assessments, expertise, change management training and educational support to help you build a complete fatigue and distraction management program.

To confirm availability and to purchase a subscription contact your Caterpillar dealer. For more information on subscription terms, please visit www.caterpillar.com/en/legal-notices/minestar-software-end-user-agreement.

View Models

Cat Command for Underground

Cat® MineStar™ Command for underground enables remote operation of load-haul-dump machines to deliver immediate productivity and efficiency gains to your operation. The system improves safety by removing operators from hazardous environments. It also delivers machine utilization increases over line-of-sight mucking operations by reducing the downtime required for shift changes, blast times, and any other conditions that can remove operators from the face.

Options range from simple line-of-sight to full autonomy. This building block approach allows miners to capture value at their most economic entry point while allowing scalability as technology maturity grows.

View Models

Cat Fleet for Underground

Cat® MineStar™ Fleet for underground provides real-time visibility to cycle time, payload and other key operational parameters. It automatically records and tracks data up and down the value chain, providing insights that help you identify what’s working and fix what’s not. Thanks to our proprietary high-precision underground positioning technology, mines can accurately track personnel and assets to sub-meter accuracy. This also gives you access to critical cycle information, so you can better understand machine usage and overall efficiency of operations. Real-time two-way task management provides essential data that positively impacts productivity and helps you optimize the entire mining operation.

View Models
