Underground Mining Load Haul Dump (LHD) Loaders

R1600H

The R1600H also offers a number of safety features, from FOPS/ROPS certified cab and safety glass to the ability to incorporate autonomous operation. Thanks to the extreme durability designed into the structure, the loader can be productive through up to four rebuilds. The R1600H is an ideal match for the Cat AD30 truck.

View all specifications View attachments View all downloads

Save for later Add to compare

Engine Power - Tier 3 Engine - ISO 14396:2002

202KW

Engine Power - VR Engine - ISO 14396:2002

202KW

Bore

130MM

Find a centre

Overview

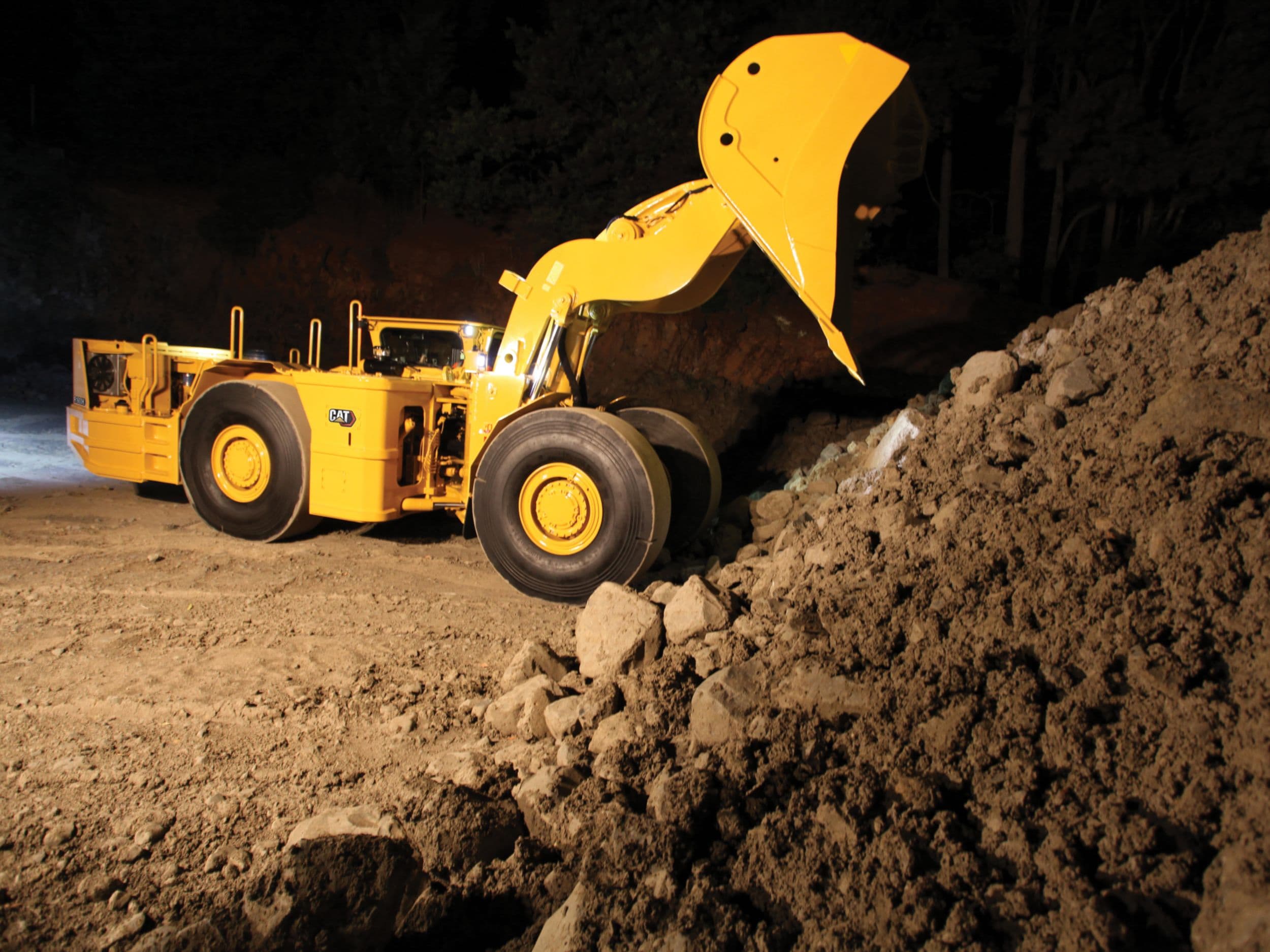

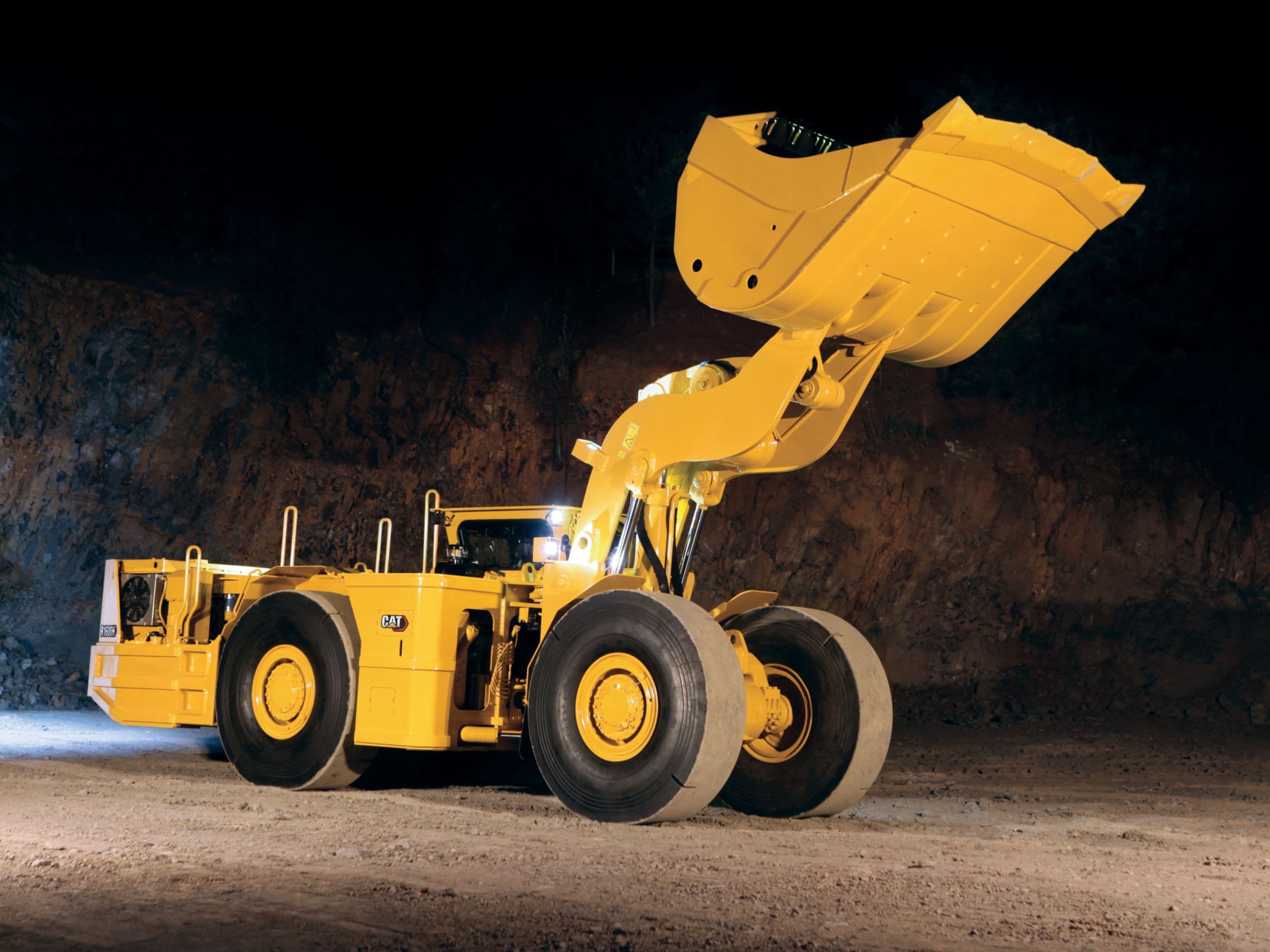

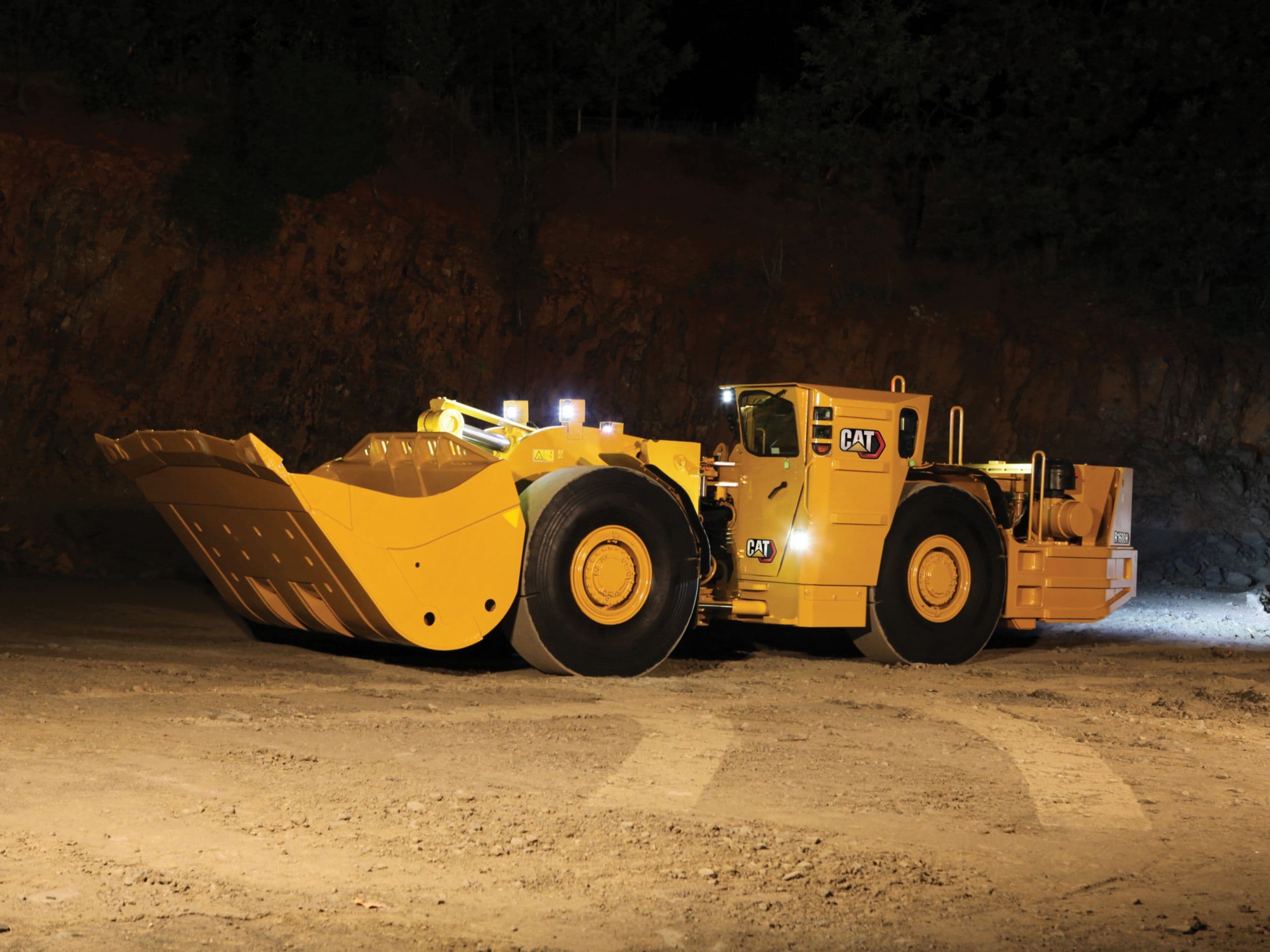

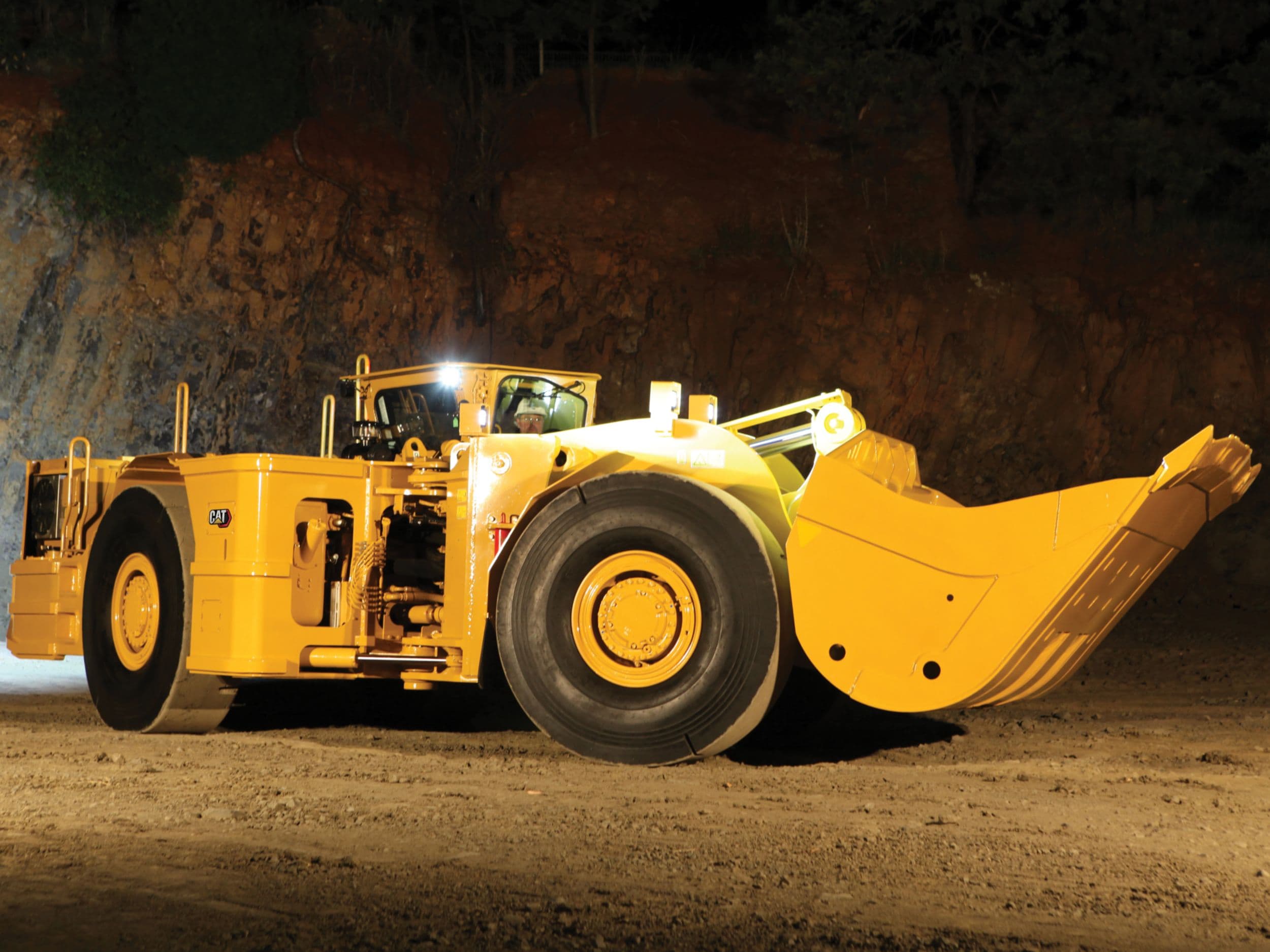

The Cat® R1600H Underground Loader has a powertrain tuned specifically for speed on grade — mastering poor floor conditions and delivering maximum production in all speed ranges. It has the necessary strength and durability to work in tough conditions, but its precise controls and efficient operation set it apart. It offers superior stability, exceptional digging and lifting, and a variety of efficiency-boosting functions, plus a transmission that delivers constant power. The R1600H also offers a number of safety features, from FOPS/ROPS certified cab and safety glass to the ability to incorporate autonomous operation. Thanks to the extreme durability designed into the structure, the

loader can be productive through up to four rebuilds. The R1600H is an ideal match for the Cat AD30 truck.

Resources

R1600H Product Brochure

R1600H Technical Specifications

R1600H Walkaround Brochure

R1600H Key Features

R1600H Poster

R1600H USP

Specifications

Engine Power - Tier 3 Engine - ISO 14396:2002202kW
Engine Power - VR Engine - ISO 14396:2002202kW
Bore130mm
Stroke140mm
Displacement11.1l

Attachments

COMPATIBLE WITH

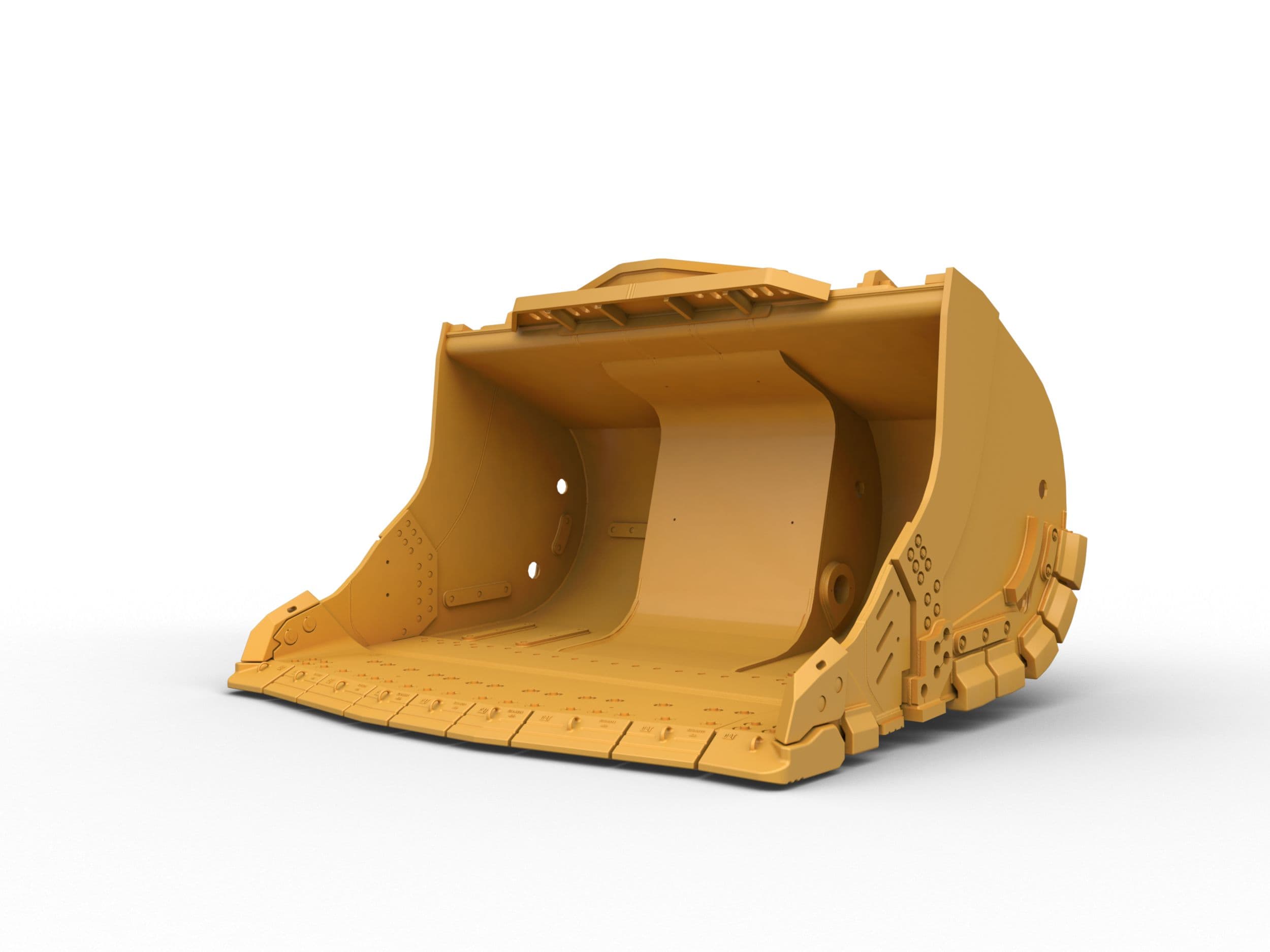

5.3m3 (6.9 yds3) for R1600H

Designed specifically to reduce time and costs associated with transportation, assembly and rework procedures for underground mining, the Cat® bolt-together bucket is the solution to lower repair costs, reduced machine down time and higher machine productivity.

View Models

4.2m3 (5.5 yds3) for R1600H

4.8m3 (6.3 yds3) for R1600H

AD30

The Cat® AD30 Underground Truck is a medium to smaller mine hauler that is a perfect match to the Cat R1600H underground loader. Engineered for performance, it’s powered by the Cat C15 engine and delivers fast cycle times and maximum efficiency. With two body styles plus multiple body sizes, you can choose the right body to maximize efficiency in your application. The cab is ergonomically designed to keep operators safe, comfortable and in control. Rugged construction and easy maintenance guarantee long life with low operating costs.

View Models

Cat MineStar Detect Fatigue

Fatigued and distracted equipment operators are present on every mine site every day, and the consequences can be costly, even fatal. Cat® MineStar™ Detect can help you identify fatigue and distraction — and address it — in real time. This subscription-based offering combines our industry-leading Driver Safety System technology with risk assessments, expertise, change management training and educational support to help you build a complete fatigue and distraction management program.

To confirm availability and to purchase a subscription contact your Caterpillar dealer. For more information on subscription terms, please visit www.caterpillar.com/en/legal-notices/minestar-software-end-user-agreement.

View Models

Cat Command for Underground

Cat® MineStar™ Command for underground enables remote operation of load-haul-dump machines to deliver immediate productivity and efficiency gains to your operation. The system improves safety by removing operators from hazardous environments. It also delivers machine utilization increases over line-of-sight mucking operations by reducing the downtime required for shift changes, blast times, and any other conditions that can remove operators from the face.

Options range from simple line-of-sight to full autonomy. This building block approach allows miners to capture value at their most economic entry point while allowing scalability as technology maturity grows.

View Models

Cat Fleet for Underground

Cat® MineStar™ Fleet for underground provides real-time visibility to cycle time, payload and other key operational parameters. It automatically records and tracks data up and down the value chain, providing insights that help you identify what’s working and fix what’s not. Thanks to our proprietary high-precision underground positioning technology, mines can accurately track personnel and assets to sub-meter accuracy. This also gives you access to critical cycle information, so you can better understand machine usage and overall efficiency of operations. Real-time two-way task management provides essential data that positively impacts productivity and helps you optimize the entire mining operation.

View Models
