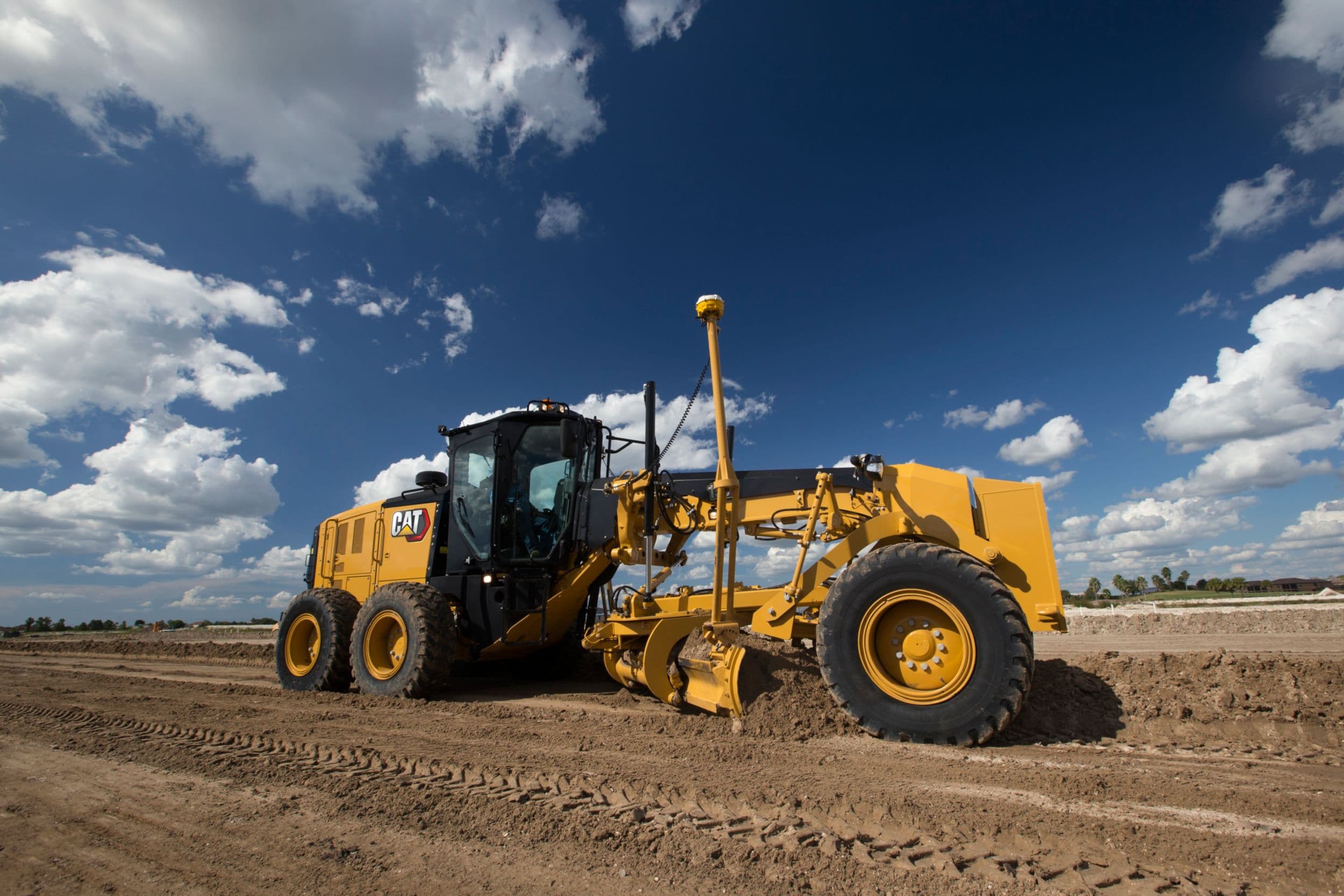

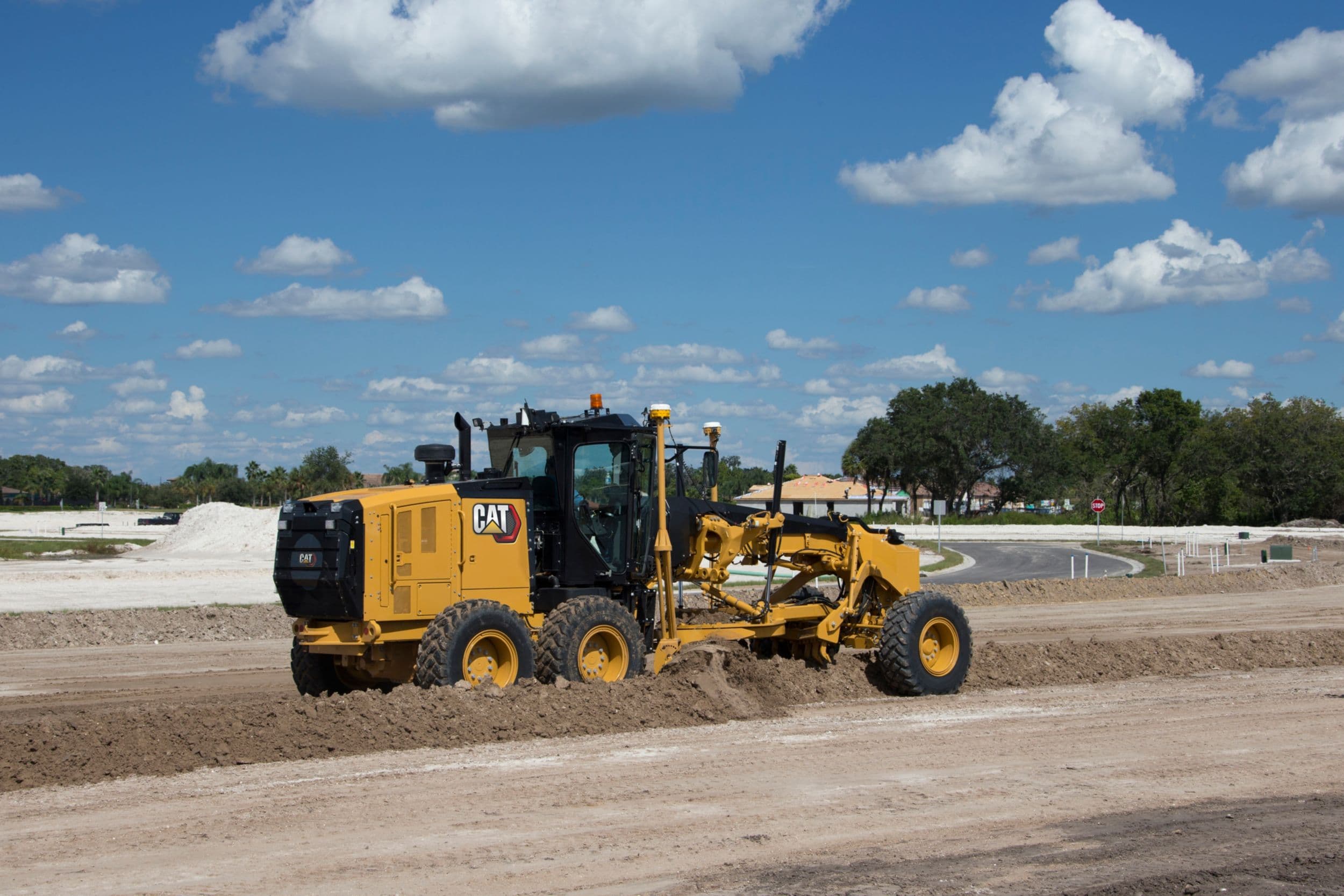

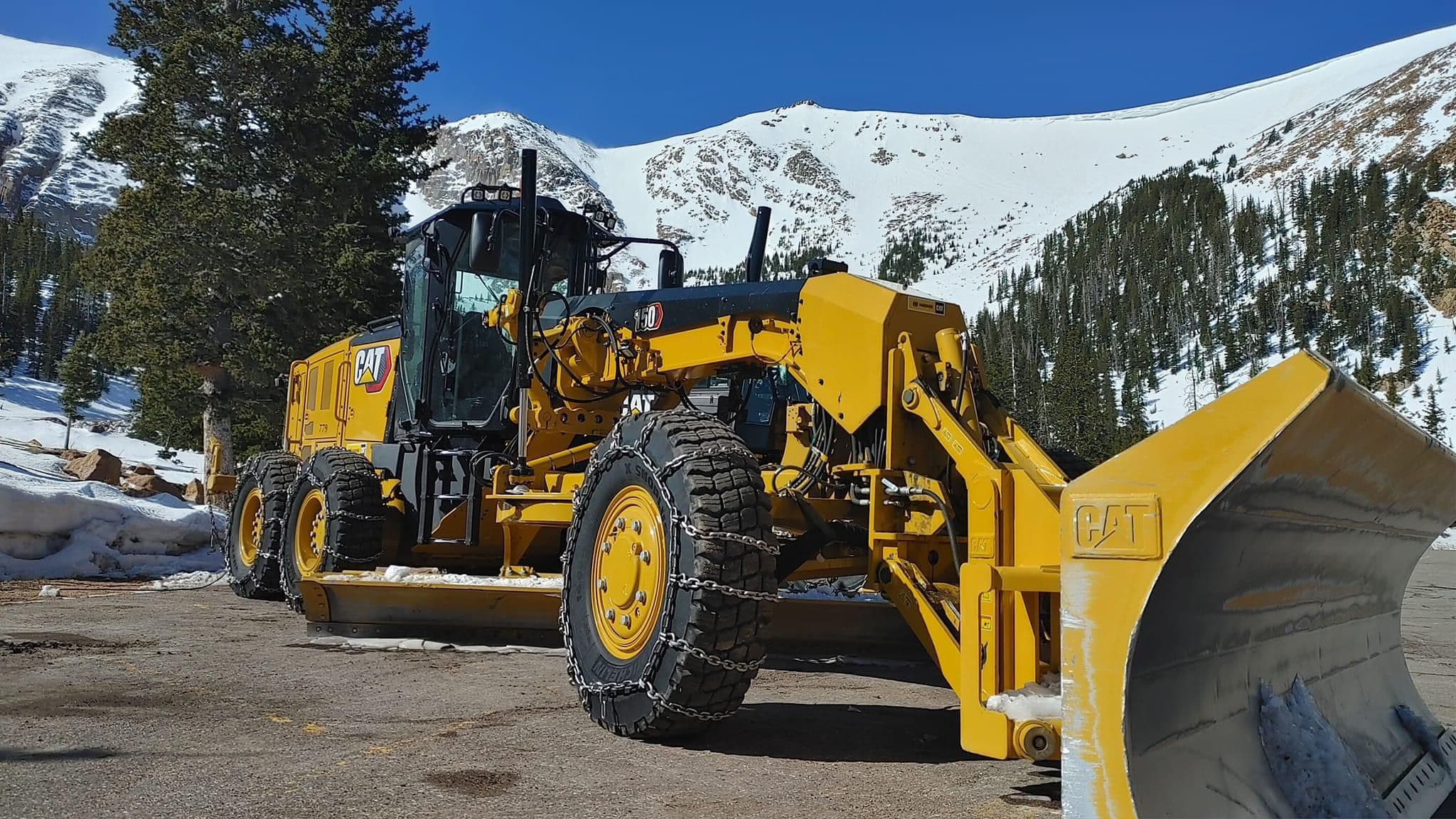

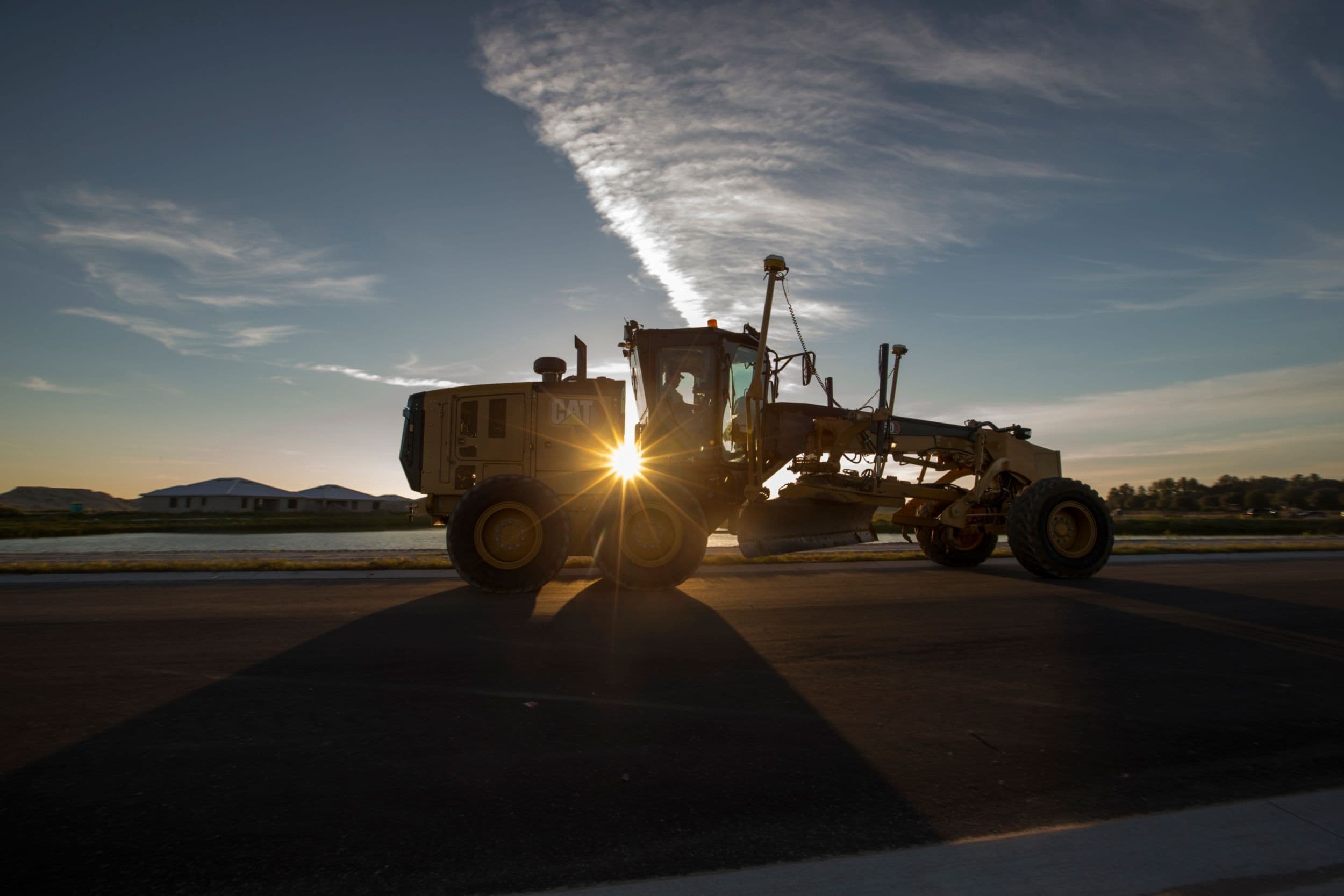

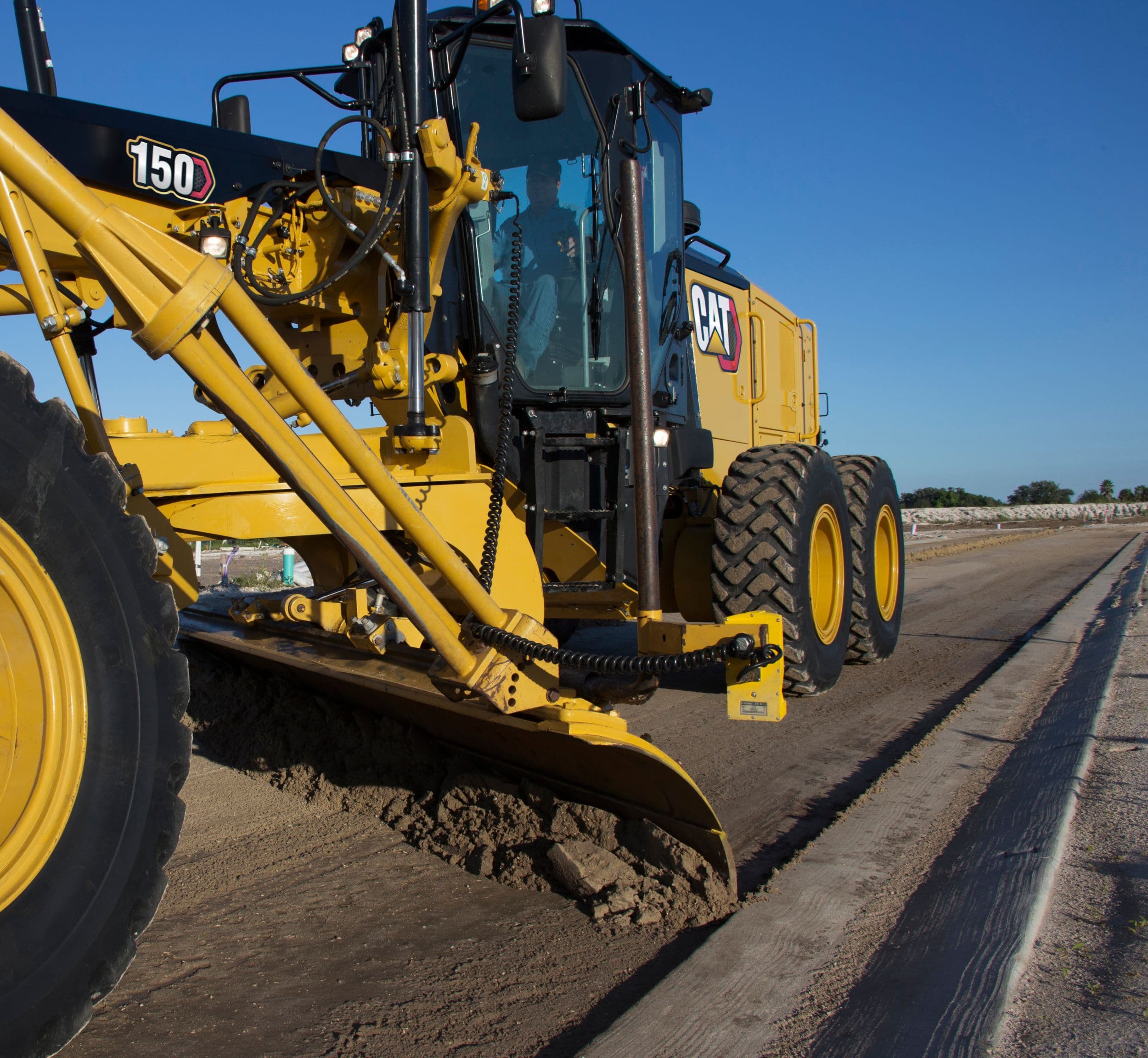

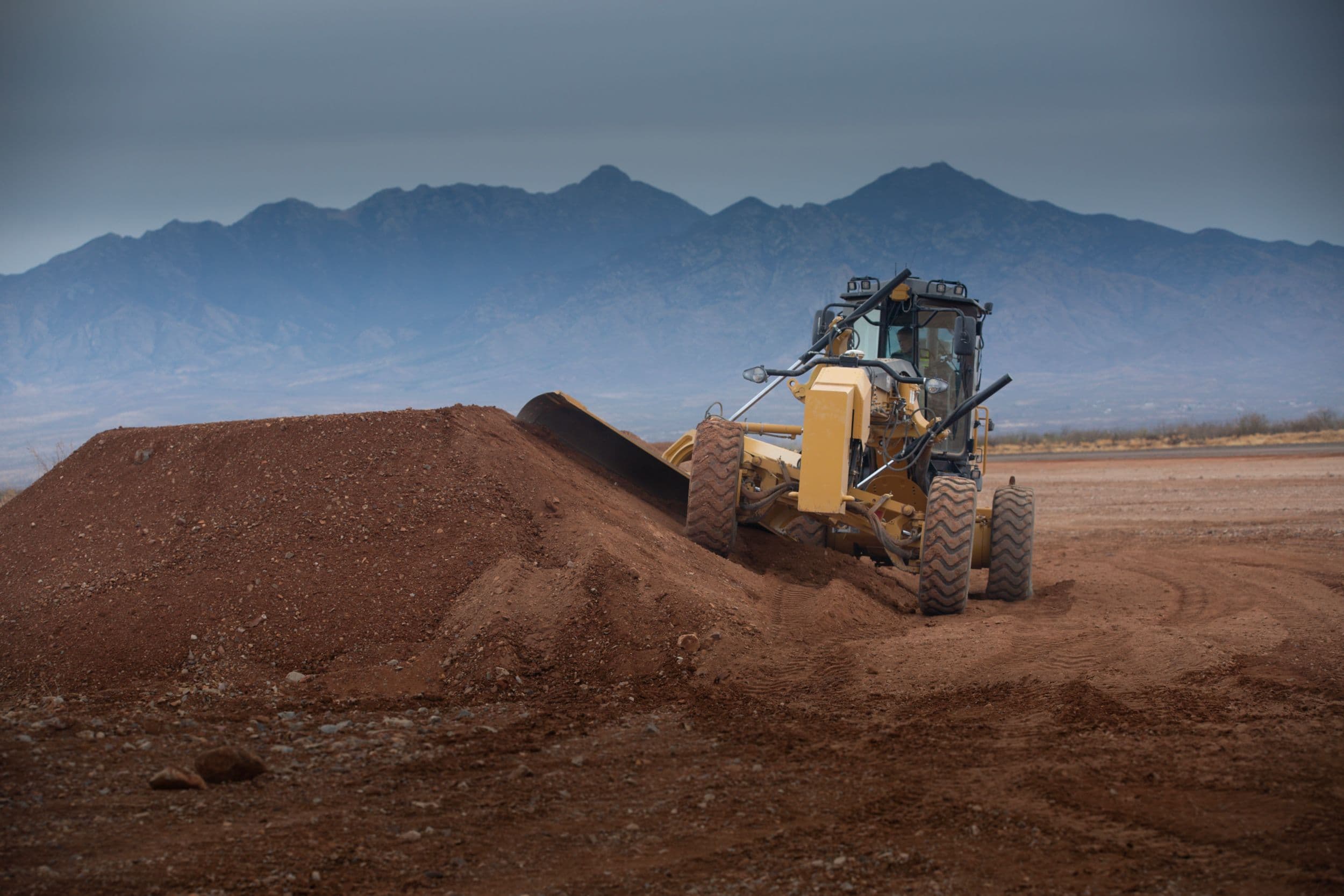

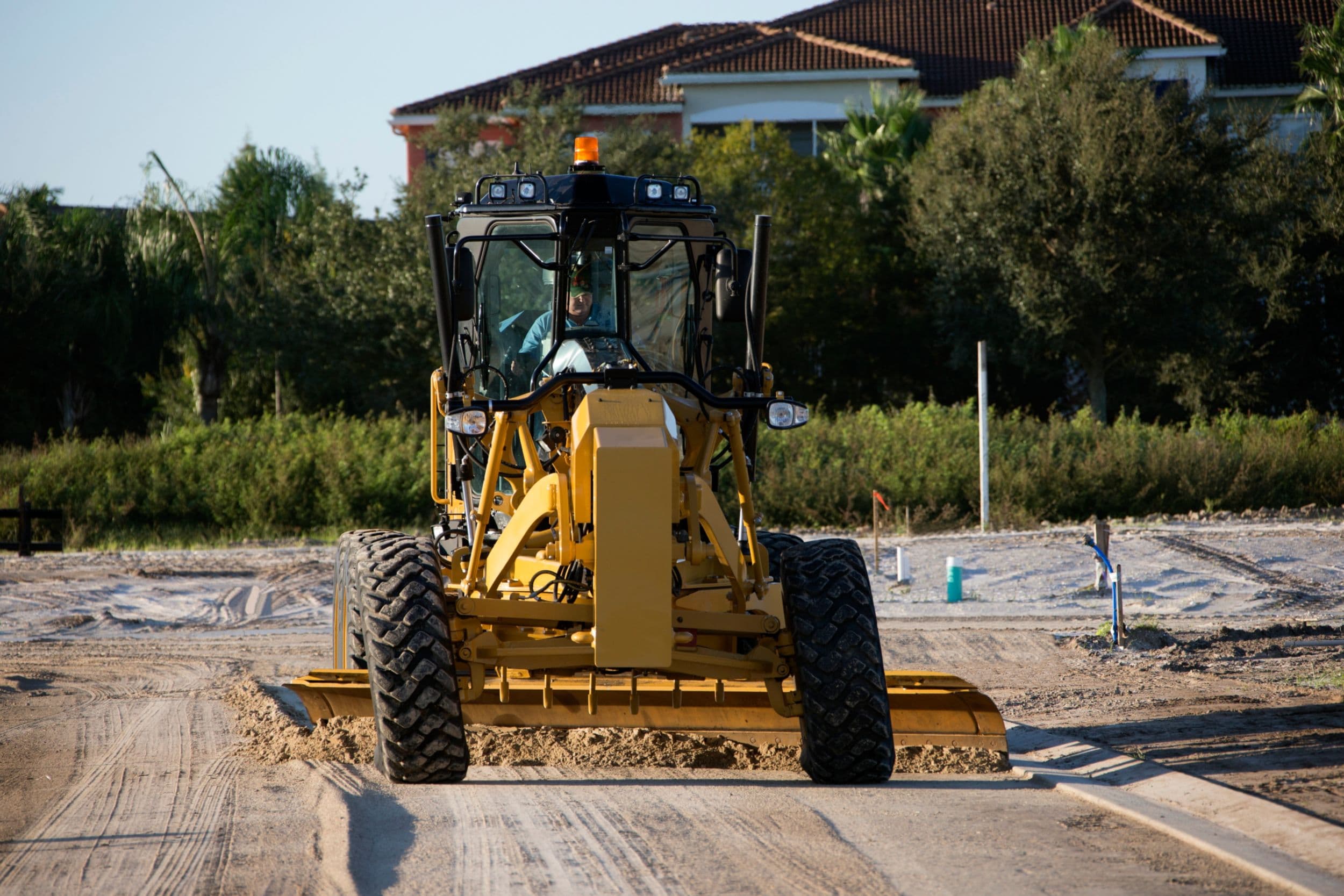

With a legendary Cat® pedigree, the 150 motor grader offers peak performance, efficiency, and long life. Joystick controls provide ergonomic comfort for the operator. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the motor grader is one highly productive machine.
Motor Graders
Net Power Range (Tier 4)
149KW
Bore
115MM
Stroke
149MM
Overview
With a legendary Cat® pedigree, the 150 motor grader offers peak performance, efficiency, and long life. Joystick controls provide ergonomic comfort for the operator. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the motor grader is one highly productive machine.
Specifications
Engine
- Net Power Range (Tier 4)149kW
- Bore115mm
- Stroke149mm
- VHP Plus - Gear - Net Power - Forward 2nd156kW
- VHP Plus - Gear - Net Power - Forward 3rd164kW
- VHP Plus - Gear - Net Power - Forward 6th180kW
- VHP Plus - Gear - Net Power - Forward 4th172kW
- VHP Plus - Gear - Net Power - Forward 5th176kW
- VHP Plus - Gear - Net Power - Reverse 1st149kW
- VHP Plus - Gear - Net Power - Forward 1st149kW
- VHP Plus - Gear - Net Power - Reverse 2nd156kW
- Maximum Torque - VHP Plus1247N·m
- Base Power (1st Gear) - Net - Metric149kW
- VHP Plus - Gear - Net Power - Forward 7th184kW
- VHP Plus - Gear - Net Power - Reverse 3rd-6th164kW
- Standard Capability43°C
- VHP Plus - Gear - Net Power - Forward 8th188kW
- Displacement9.3l
- Derating Altitude3050m
- High - Ambient Capability50°C
Attachments
COMPATIBLE WITH
