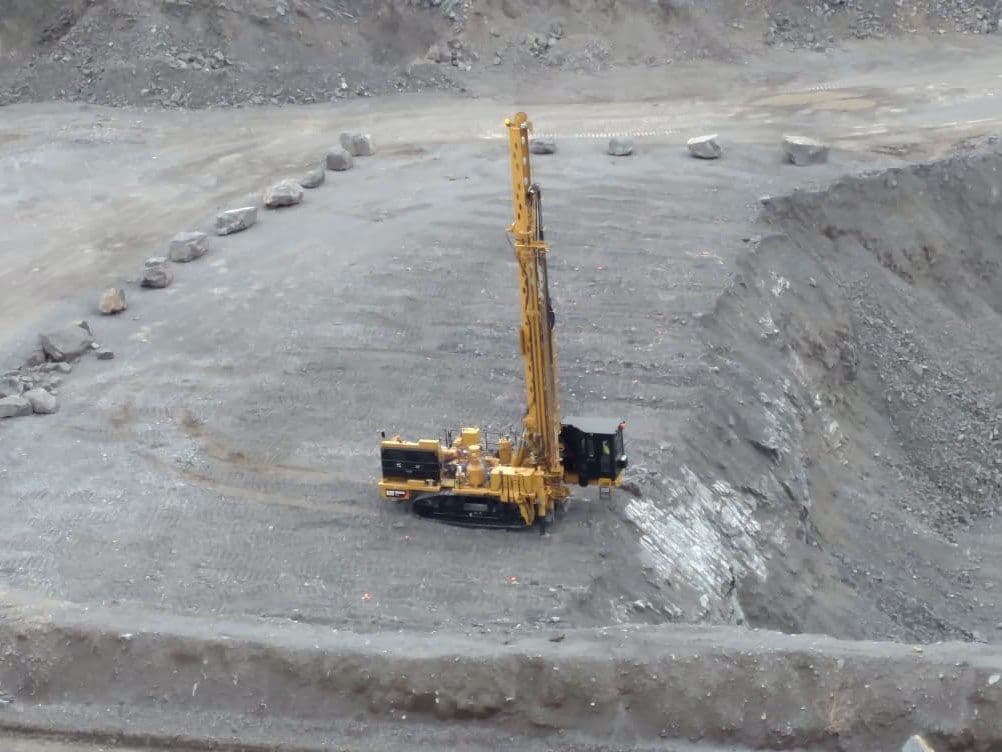

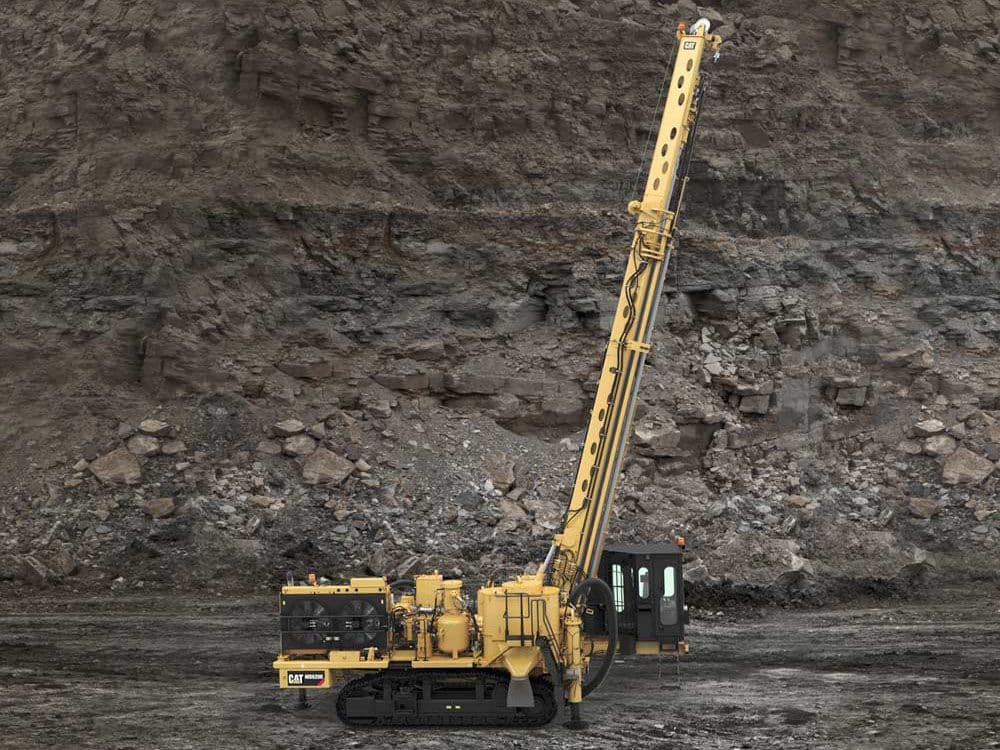

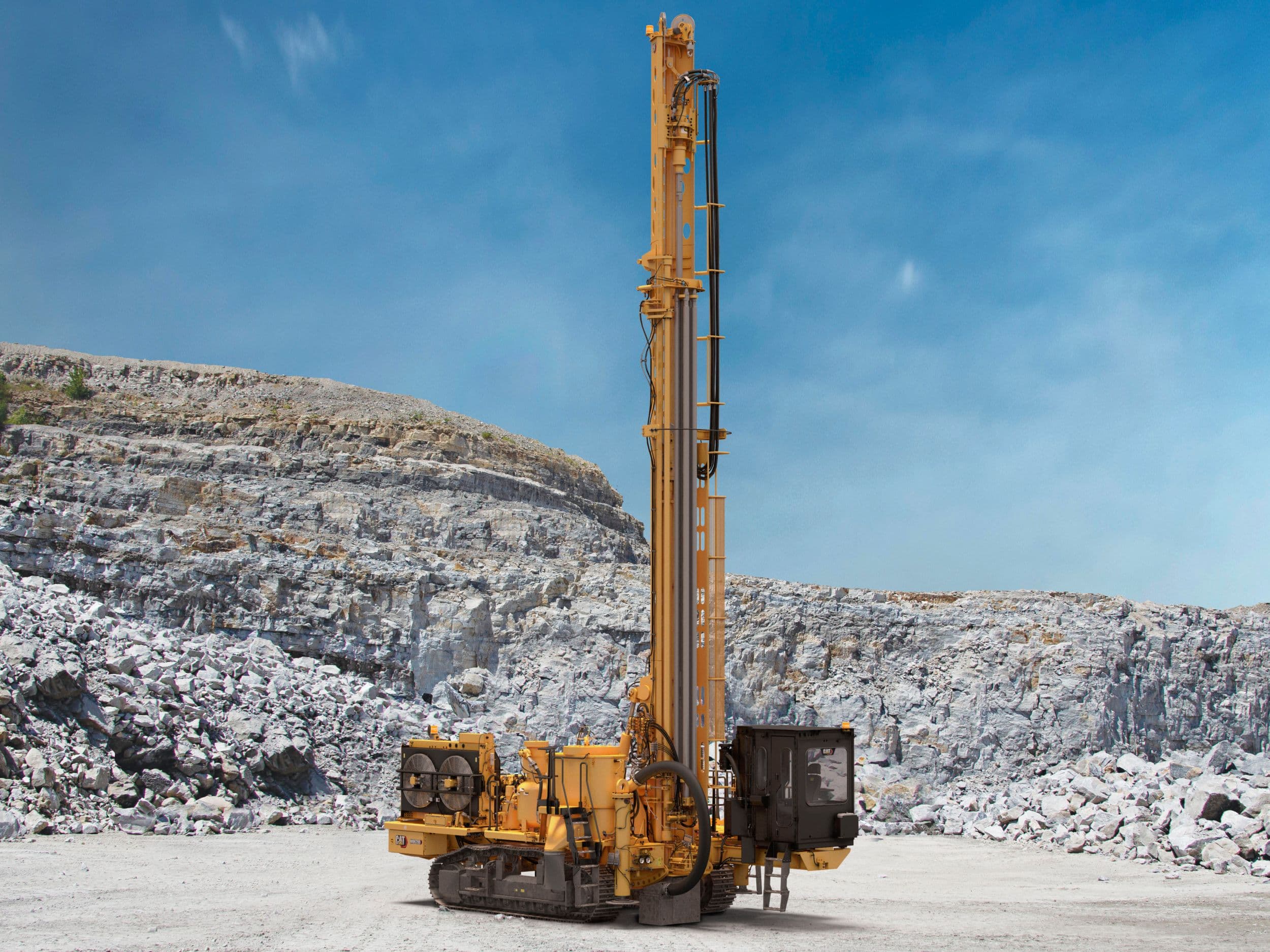

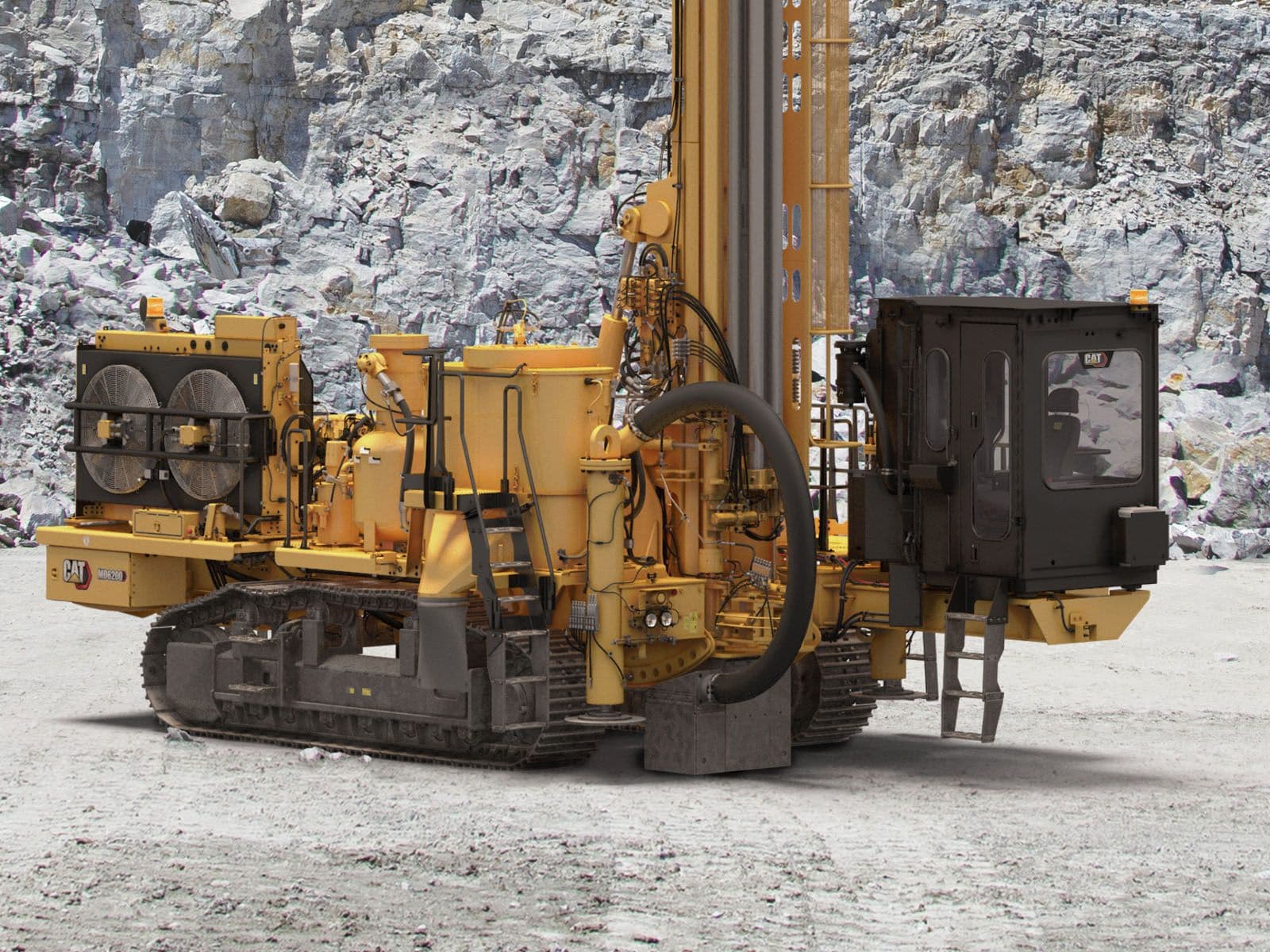

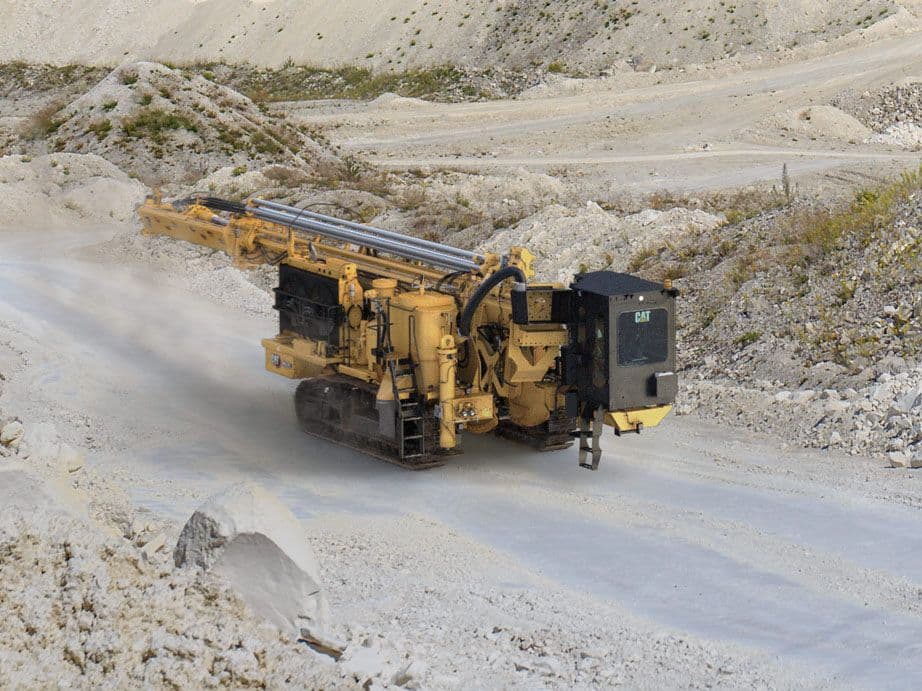

The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
Rotary Drills
Bit Load (single-Pass)
16964KG
High Volume Water Injection - Maximum - Tank Above Deck - Capacity
757L
Single-Pass Depth
11M
Overview
The Cat® MD6200 has the smallest shipping envelope of any drill in its class. It can be transported over the road with the mast on, so it can simply roll onto a truck when it’s time to move to another site. Additionally, its compact working envelope allows it to get it into position faster, reducing the time spent accessing drill patterns and moving between holes. Its oversized Cat 336 excavator-style undercarriage provides best-in-class tractive effort and drawbar pull and stands up to the toughest conditions on your site. Designed to drill holes from 127-200 mm (5.0-7.87 in) in diameter, the MD6200 is is optimized for single-pass or multi-pass drilling in both rotary and down-the-hole drilling modes.
Specifications
Basic Specs
- Bit Load (single-Pass)16964kg
- Hoist Speed1.32m/s
- Hole Depth Range - Single-Pass Depth11m
- U.S. EPA Tier 4 Final - Power Rating (ISO 14396)439kW
- U.S. EPA Tier 2 Equivalent - Power Rating (ISO 14396)438kW
Attachments
COMPATIBLE WITH
Cat Health
Through regular monitoring of machine conditions, mines can adopt a more proactive approach to maintenance and repair. Equipment health data is a key contributor to that approach. Data helps mines identify equipment problems long before failure.
Accessing the right data at the right time is critical to improving operational intelligence and machine predictive analysis. Cat® MineStar™ Health helps you meet that need by connecting you to your machines and delivering that important information. The MineStar Health portfolio set consists of Connectivity Enablers that collect, convert and transmit equipment data; and Applications that visualize, analyze and report health equipment data.
Cat Fleet for Surface
Cat® MineStar Fleet is the single best source for fleet management information. An integrated fleet monitoring and management system, it can be used with any machine or system to measure, manage and maximize every facet of an operation, no matter the size or type. Fleet provides real-time visibility to cycle time, payload and other key operational parameters. It monitors machine locations and material movement and provides alerts of misroutes to ensure material is moved to the proper location.
Cat Terrain for Drilling
Effective mining starts with accurate drilling. That means drilling every hole precisely to plan, at the proper angle and the correct depth. Cat® MineStar™ Terrain for drilling provides precision guidance that helps operators complete patterns accurately and productively. It pays other dividends, as well, by improving safety, reducing costs and recording data about drilled stratification to aid in planning blasts and improving fragmentation. And it works with all brands of drills and communicates seamlessly with MineStar and other mine management systems.
Services & Support
