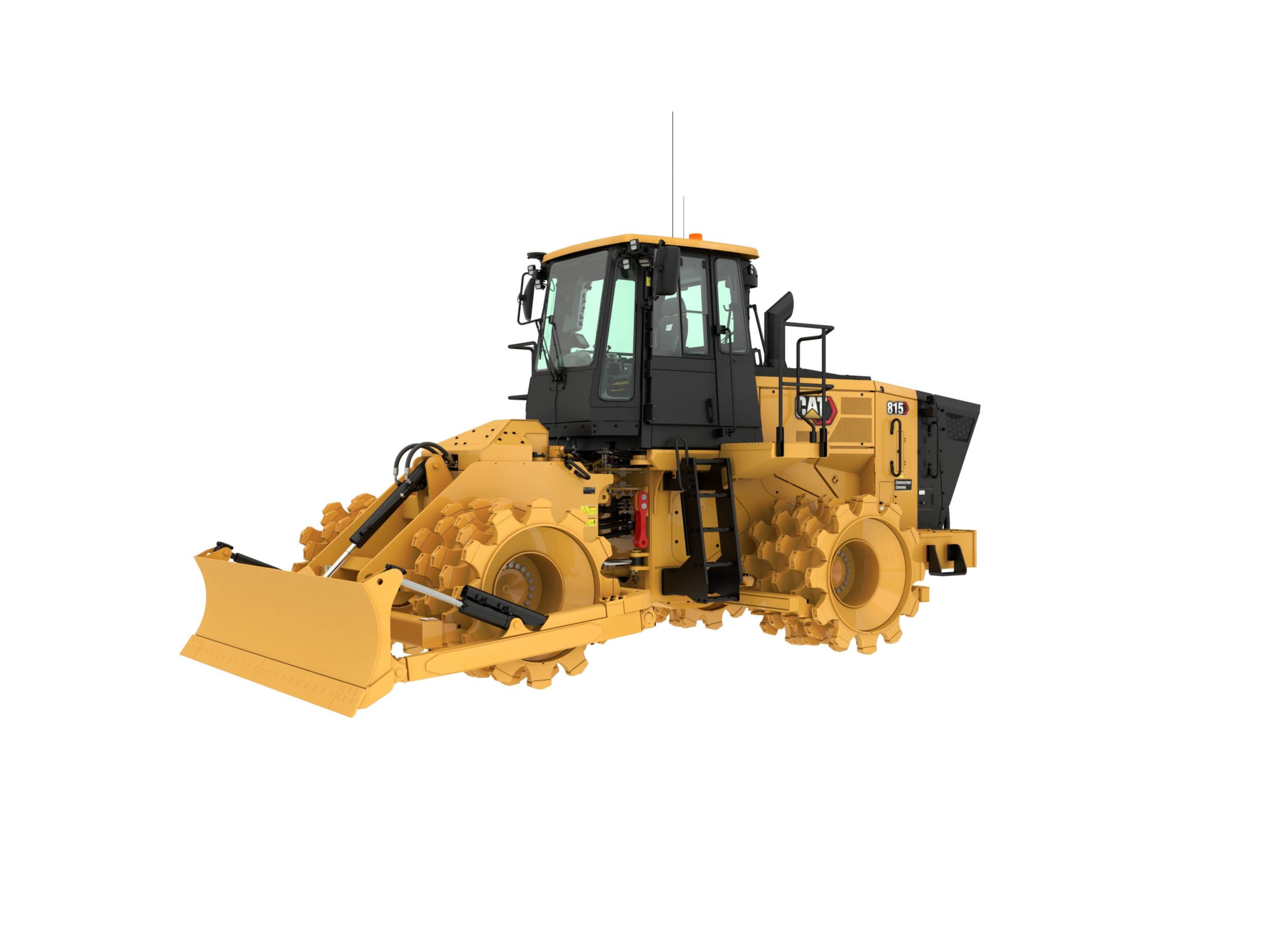

Designed with durability built in, the Cat 815 ensures maximum availability through multiple life cycles. Designed and manufactured for optimum performance and serviceability, this rugged, powerful machine delivers heavy-duty compaction and dozing.
Soil Compactors
Gross Power (SAE J1995:2014)
212KW
Net Power (SAE J1349:2011)
186KW
Net Power (ISO 9249:2007)
186KW
Overview
Cat Soil Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Representing a long-standing commitment to quality and performance, this rugged, powerful machine is designed and built for heavy-duty compaction and dozing operations. Focused on helping our customers succeed, we have continued to build upon each new series. The 815 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
Specifications
Engine
- Gross Power (SAE J1995:2014)212kW
- Net Power (SAE J1349:2011)186kW
- Net Power (ISO 9249:2007)186kW
- Engine Power (ISO 14396:2002)205kW
- Rated Speed2200r/min
- Net Power - ISO 9249:2007186kW
- Gross Power - SAE J1995:2014213kW
- Peak Torque ( 1,400 rpm )1016N·m
- Torque Rise26%
- Bore105mm
- Stroke135mm
- Displacement7.01l
- High Idle Speed2270r/min
- Low Idle Speed800r/min
- Maximum Altitude - Without Derating3000m
Attachments
COMPATIBLE WITH
Cat® Detect with Smart Camera
The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.
Cat® Detect with Surround Cameras
The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.
Cat Compact with Machine Drive Power (MDP)
Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
