Landfill Compactors

826K

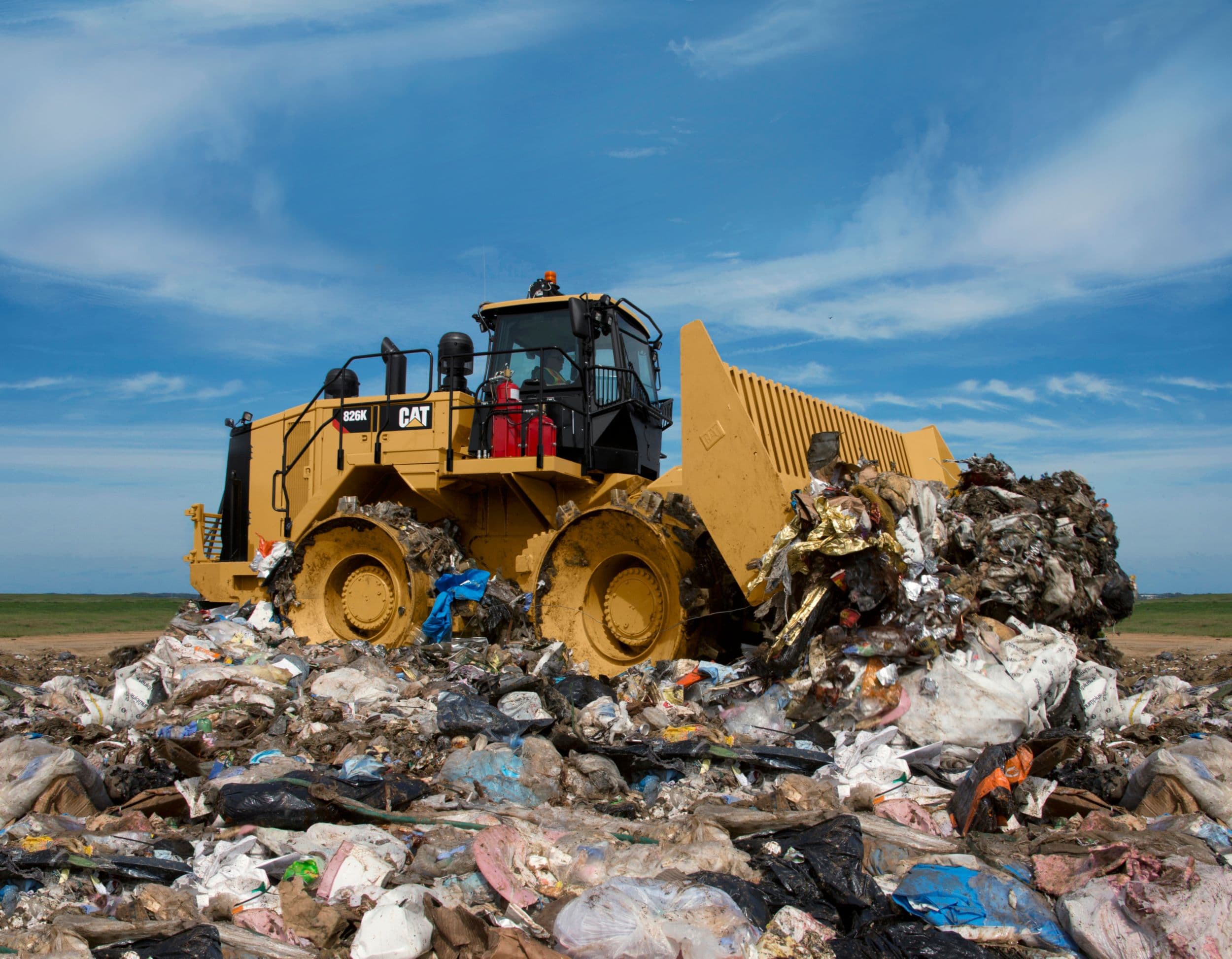

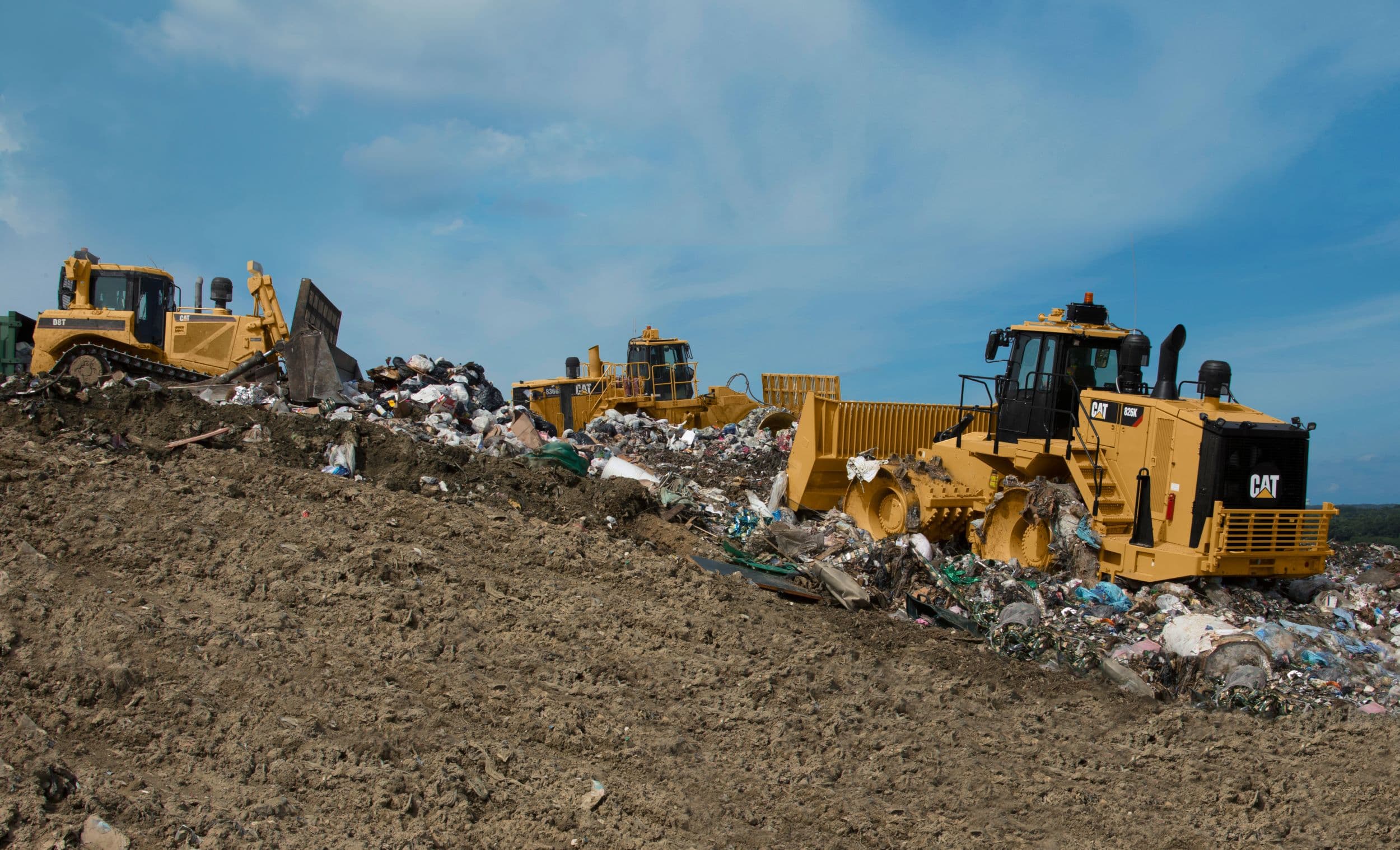

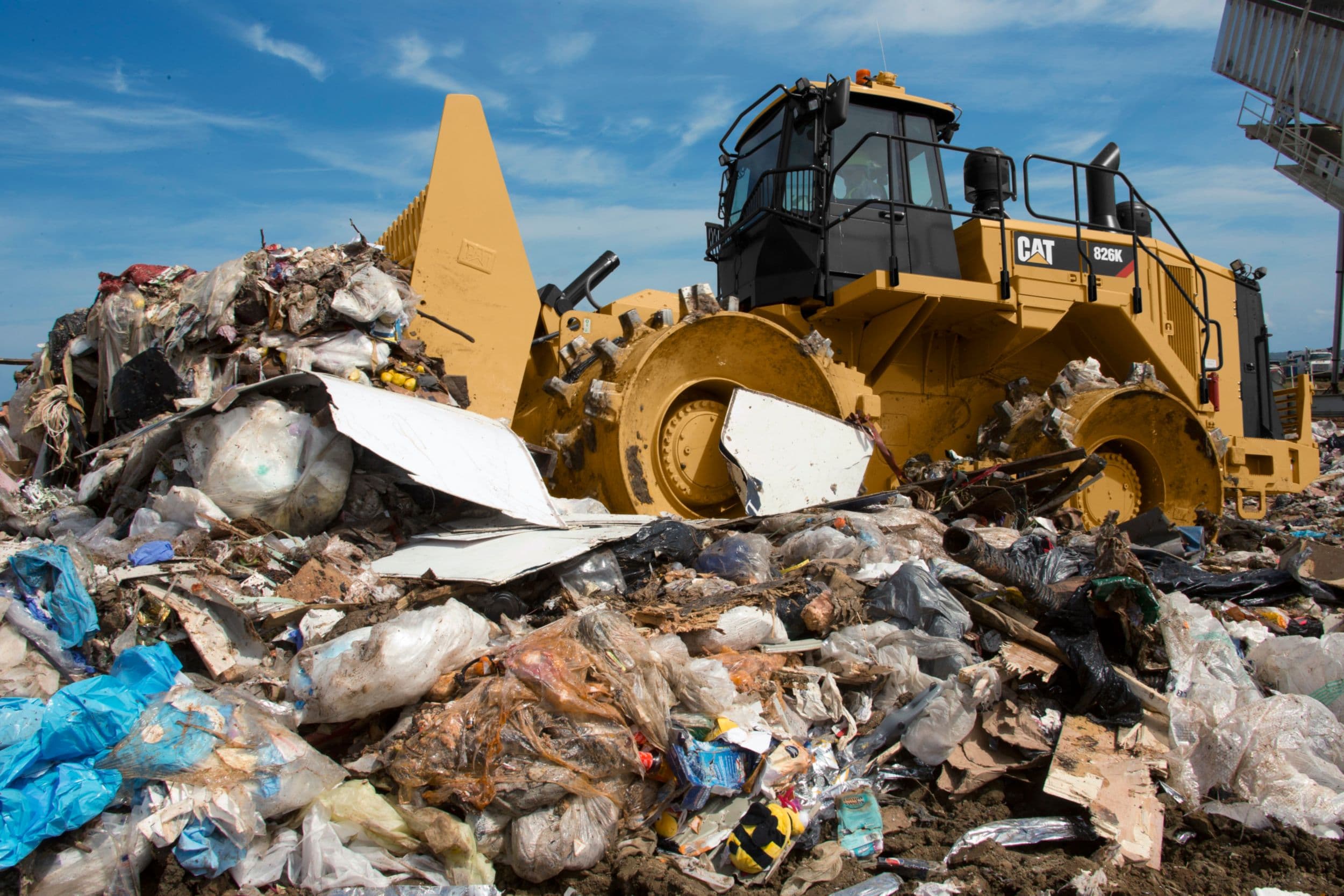

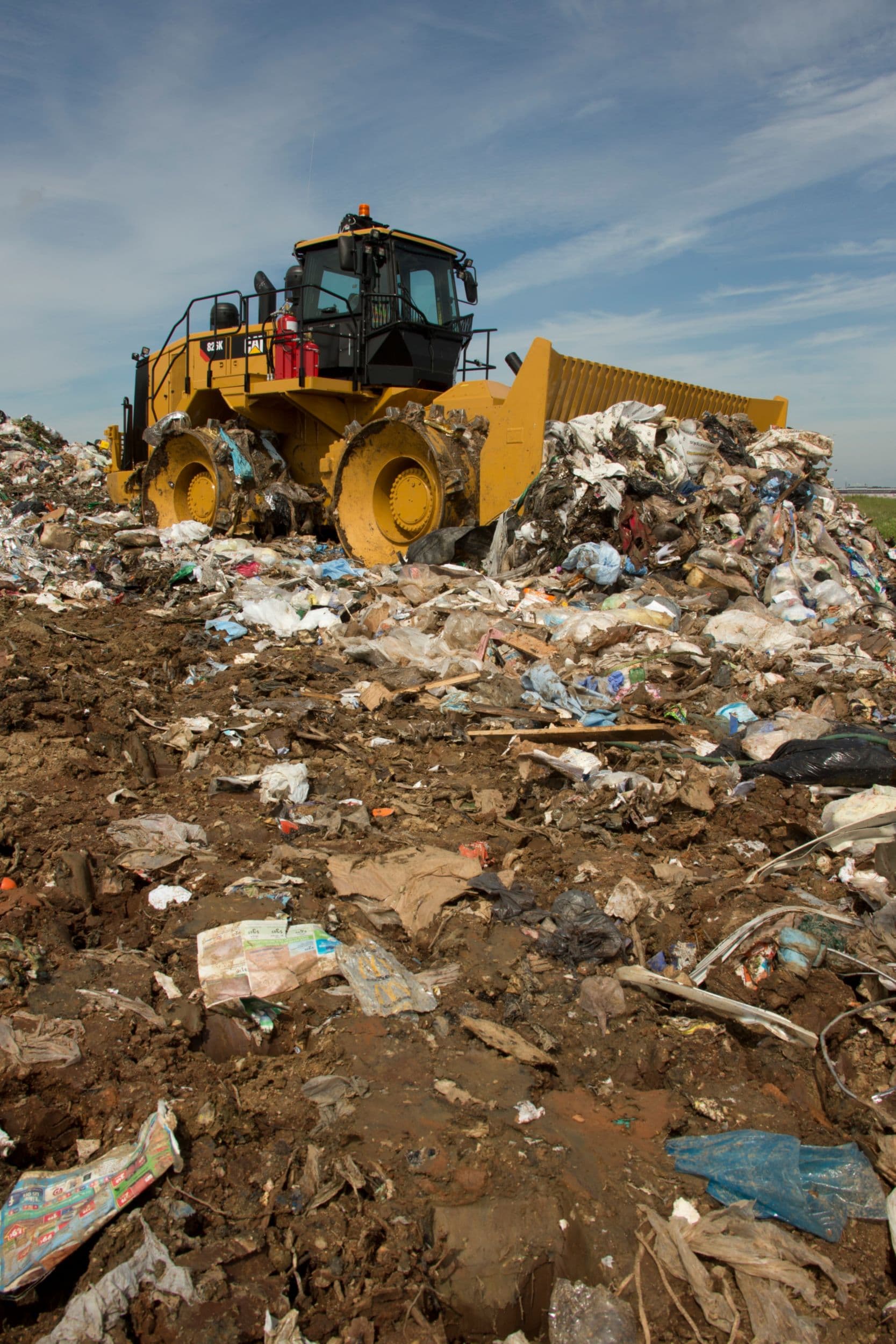

Purpose-built for landfill operation, the Cat 826K delivers a level of reliability, performance, safety, operator comfort, serviceability, and efficiency that can only come from 35-plus years as the industry's leader. Field-proven protection and integrated technologies provide peak availability and optimized landfill performance.

View all specifications View attachments View all downloads

Save for later Add to compare

Gross Power

324.0KW

Net Power

302.0KW

Bore

137.2MM

Find a centre

Overview

Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1978, the 826 has been the industry leader for over 35 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 826K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

Resources

826K Product Brochure

826K Key Benefits

Specifications

Gross Power324.0kW
Net Power302.0kW
Bore137.2mm
Stroke171.4mm
Displacement15.2l
High Idle Speed2300.0r/min
Net Power - Converter Drive - Torque Rise8.5%
Rated Power (Net SAE J1349)302.0kW
Maximum Altitude - Without Derating (Tier 4 Final/Stage IV)2834.0m
Net Power - Direct Drive - Torque Rise33.0%
Low Idle Speed800.0r/min
Net Power - Direct Drive - Gross Power307.0kW
Net Power - Converter Drive - Gross Power324.0kW
Maximum Net Torque - 1,300 rpm2005.0N·m
Rated Power (Net ISO 9249)302.0kW
Maximum Altitude - Without Derating (Tier 3/Stage IIIA)2773m

Attachments

COMPATIBLE WITH

Cat® Detect with Smart Camera

The Cat® Detect with Smart Camera safety technology utilizes a smart camera, an in-cab display and alerts to help your operator keep track of people near the machine.

View Models

Cat® Detect with Surround Cameras

The Cat® Detect with Surround Camera system uses three or four cameras and an in-cab display to give operators a view of their surroundings. It's an effective way to increase safety at the site.

View Models

Cat Compact with Compaction Algorithm

Compact with Compaction Algorithm combines advanced compaction measurement, in-cab guidance for operators, and reporting capabilities for managers. Includes a Global Navigation Satellite System (GNSS) receiver and mapping display.

View Models
