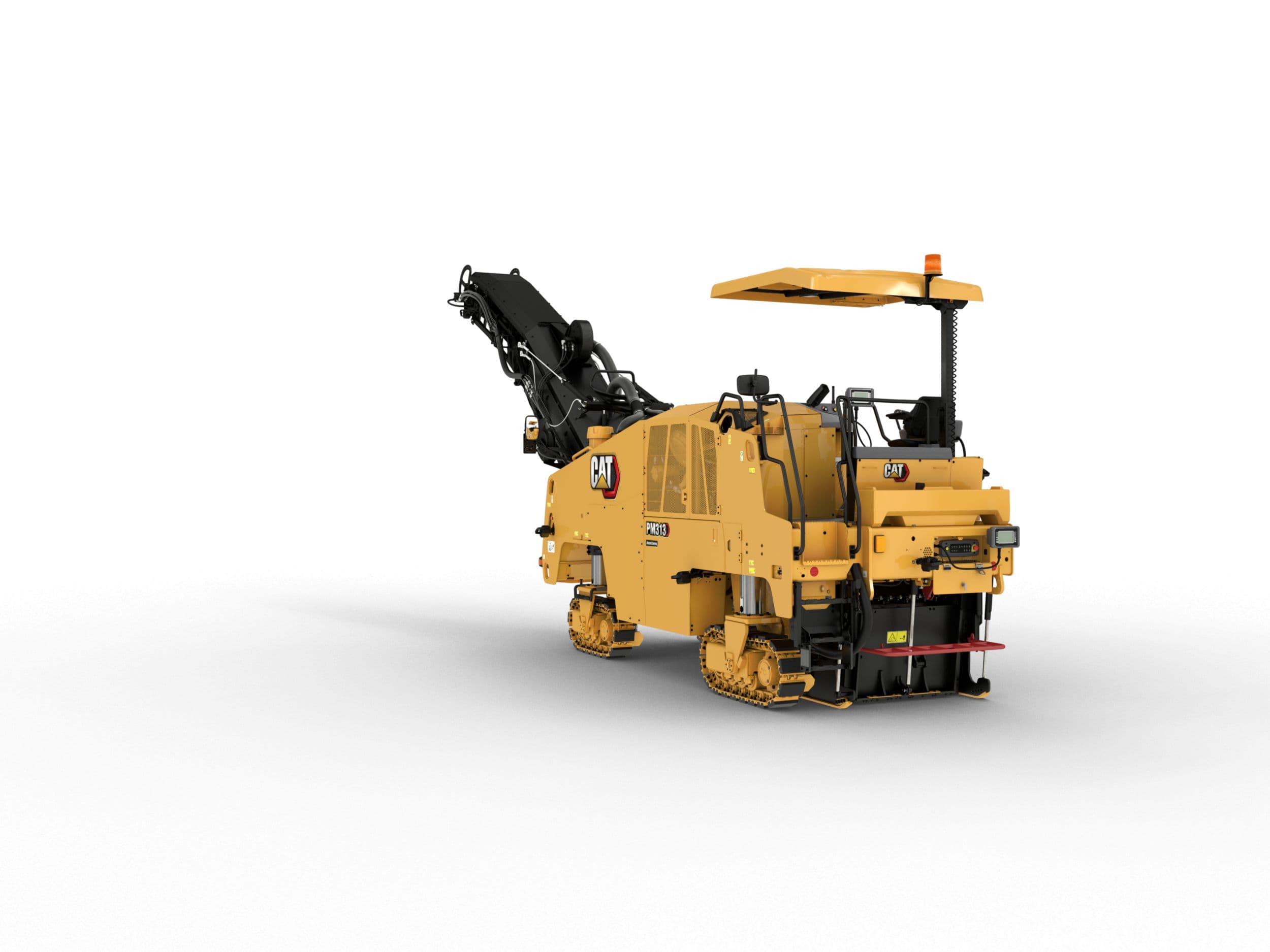

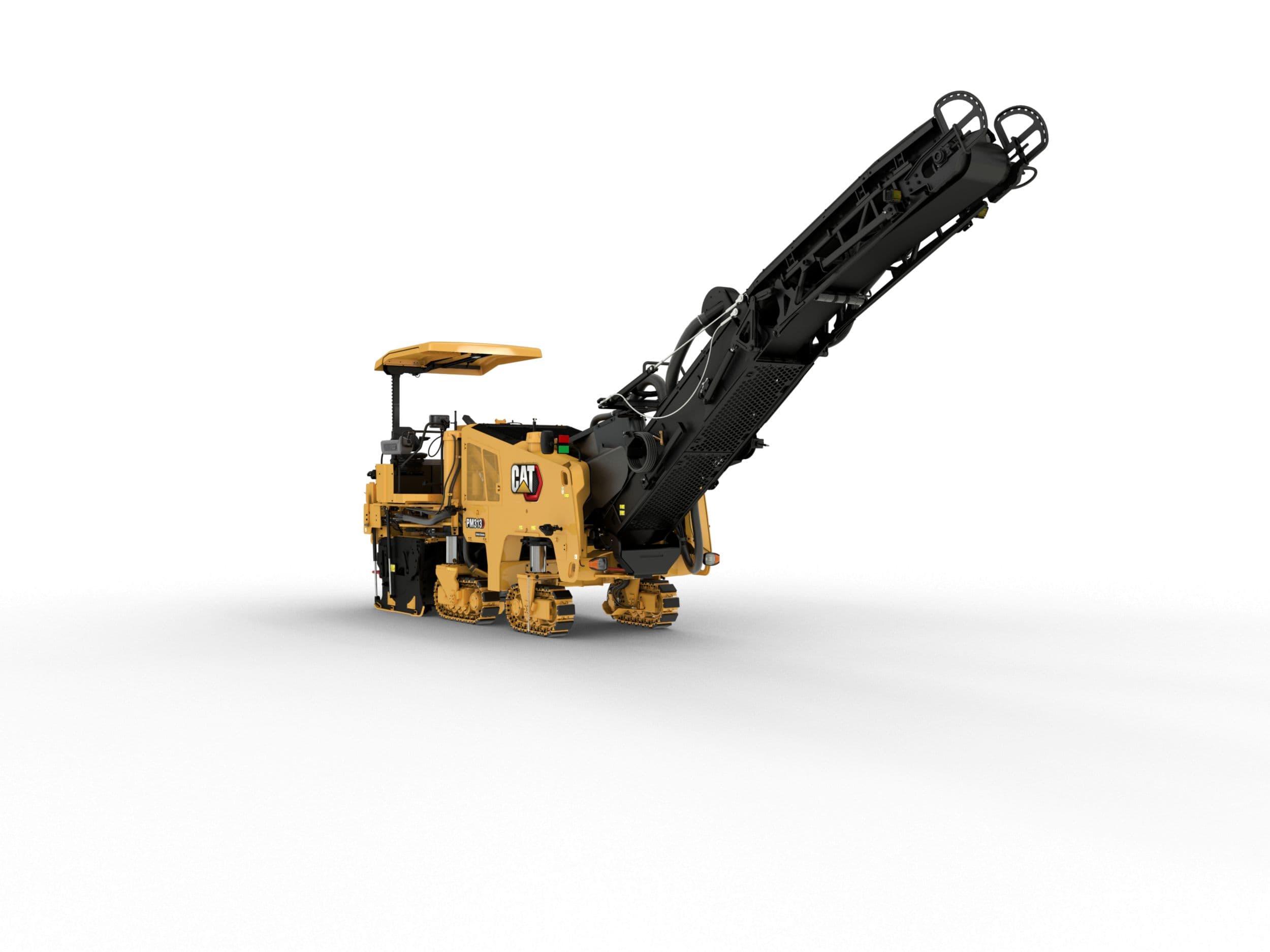

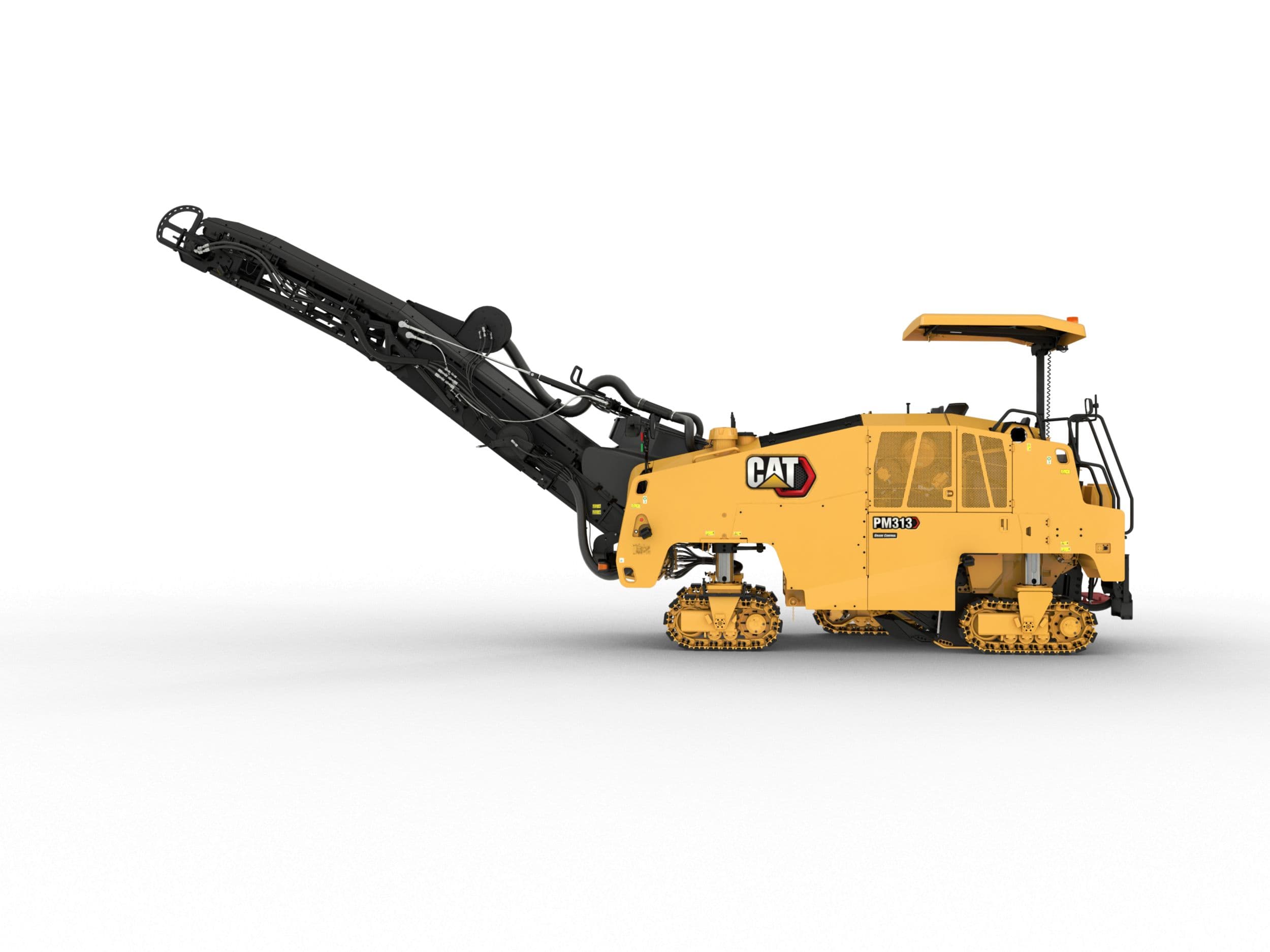

The PM313 is an efficient, highly maneuverable milling machine with a cutting width of 1300 mm (51.2 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.
Cold Planer
Milling Width
1300MM
Rated Power
246KW
Operating Weight
22071KG
Overview
The PM313 is an efficient, highly maneuverable milling machine with a cutting width of 1300 mm (51.2 in) that performs controlled full-depth removal of asphalt and concrete pavements in a single pass.
Specifications
Cutting System
- Milling Width1300mm
- Maximum Milling Depth330mm
Attachments
COMPATIBLE WITH
System K 1.3 m Milling Drum (18 mm spacing)
The System K course milling rotor with 18 mm bit spacing is designed for surface removal or complete removal of road surfaces with a rougher finish at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
System K 1.3 m Milling Drum (15 mm spacing)
The System K standard milling rotor with 15 mm bit spacing is ideal for surface removal or complete removal of road surfaces at depths up to 330 mm (13 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
System K 1.3 m Milling Drum (8 mm spacing)
The System K fine milling rotor with 8 mm bit spacing is ideal for removing road surfaces with a fine textured finish at depths of approximately 100 mm (4 in). A durable, high-performance design with efficient material flow and an excellent cutting pattern maximizes milling production.
