Control Panels

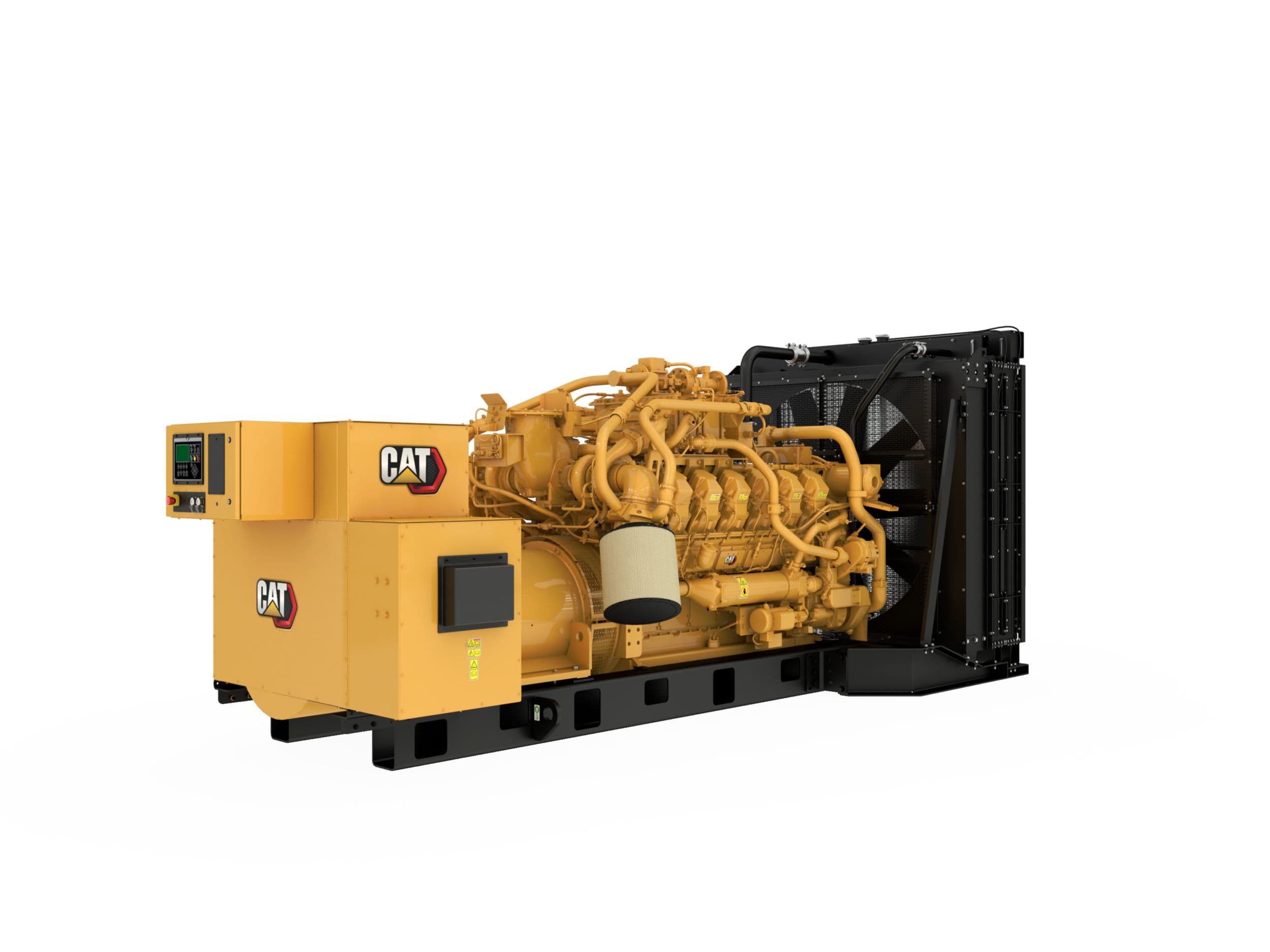

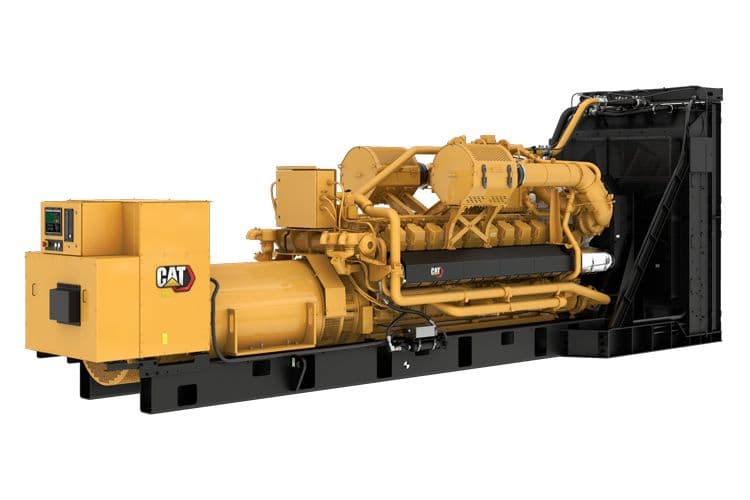

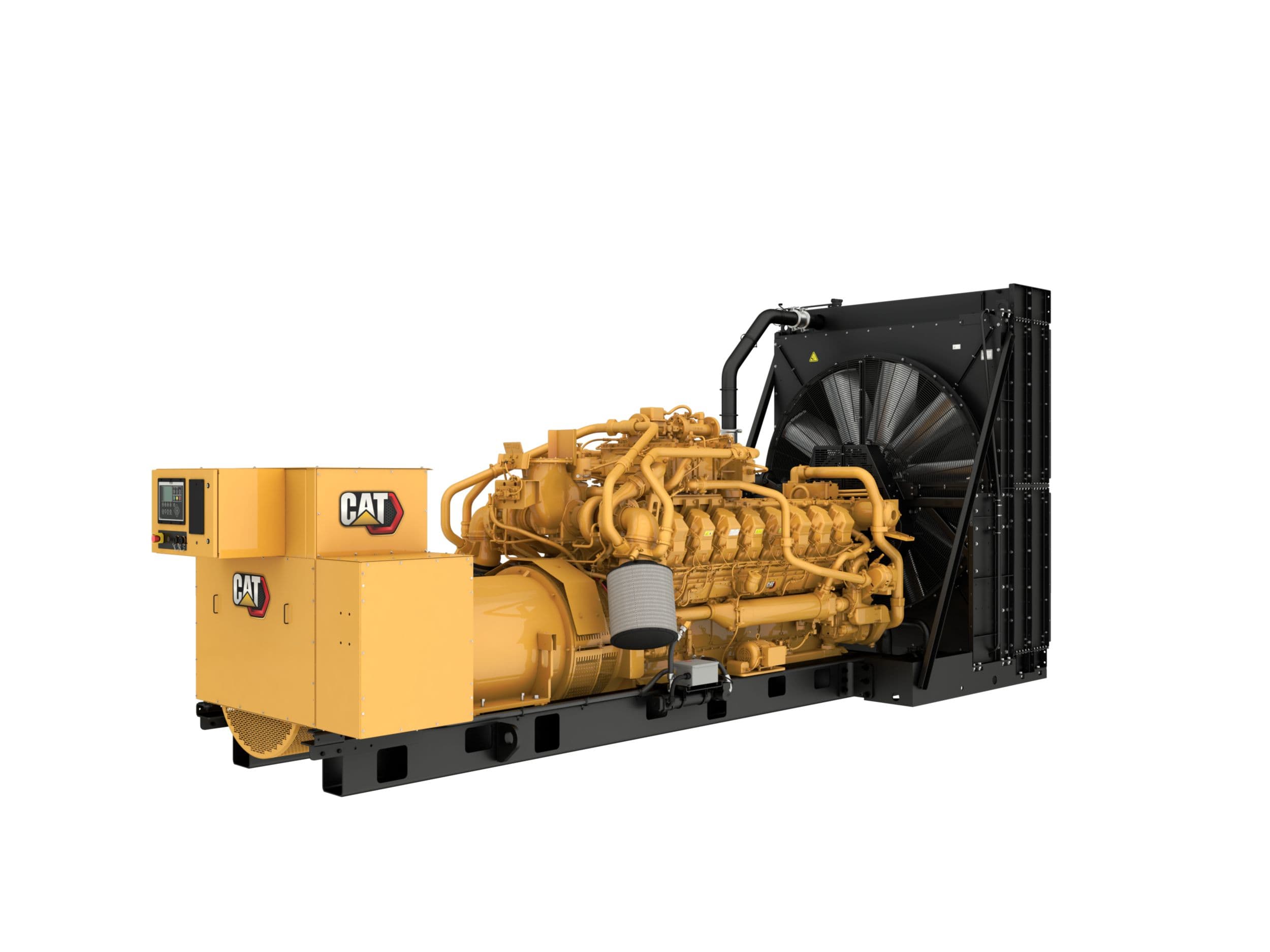

Cat ECS 100 Control Panel

360� Exterior View (HTML)

360� Interior View (HTML)

DownloadResourceContainer

ProductSpecifications

BenefitsFeaturesContainer

The Cat ECS 100 generator set controller uses:
<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>System graphic icons and labels that allow for simple, comprehensive generator set operation</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Easy-to use 8” color LED touchscreen display features scroll navigation</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Generator set and remote-mount options are available</li>
</ul>


<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Island mode – single unit operation</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>High visibility graphical touchscreen display with alarm/event descriptions, set points, engine and generator monitoring</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Intuitive navigation for display of power metering, protection, engine and generator parameters and tuning</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Lockout security provision to assure platform integrity with three programable security levels</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Support for 10 languages</li>
</ul>


<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Ethernet Modbus TCP for external communications</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Support of up to four remote HMI’s (sold separately)</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Compatible with Cat Connect Product Link devices</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Embedded&nbsp;HMI Web Server</li>
</ul>


<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Automatic mains failure with utility voltage sensing capability (open transition) and remote breaker or contactor control/monitoring</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Engine remote start integrity monitoring</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Single genset transient load relief (TLR)</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Advanced Overcurrent Protection</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Arc Flash Maintenance Mode</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Basic programmable logic control (PLC) function</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>EPA Tier 4 integration</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Inducement override</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Real (kW) load histograms</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Status event log</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Real-Time Clock</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Programmable Cycle Timer (PCT)</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Supports dynamic gas blending (DGB)</li>
</ul>


<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Compliance with UL2200&nbsp;3<sup>rd</sup>&nbsp;edition requirements including UL6200&nbsp;functional safety requirements</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Local annunciation facilitates compliance to NFPA 110 (subject to local authority having jurisdiction approval)</li>
</ul>


<ul>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Cat dealers have over 1,800 dealer branch stores operating in 200 countries</li>
&nbsp;&nbsp;&nbsp;&nbsp;<li>Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements</li>
</ul>
